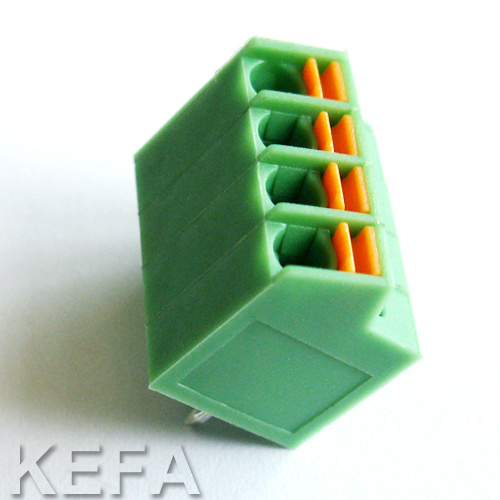

PCB Spring Terminal Block Kf250nh

Name: PCB Spring Terminal Block Kf250nh
Brand: all-electronics-online.com
SKU: 765376155
Availability: InStock
Rating: 4.8 (54 reviews)

Price:	US $ 0.1/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	10000/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	KF250NH-3.5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Green
Current:	8A
Voltage:	300V
Pin Spacing:	3.5mm
Wire Range:	20-16AWG
Poles:	1p-Np
Application:	Battery
Environmental Protection:	General
Connection Mode:	Card Lock Connection
Shape:	Rectangle
Contact Termination Form:	Welding Connection
Brand:	Kefa

Product Description

1.Product Specifications
Model: KF250NH-3.5
Material:
Pitch:3.5mm
Poles:1P-NP
Pin Header: Tin-plated Phosphor Bronze
Clips:Stainless Steel
Housing: PA66.UL94V-0
Electrical:
Rated Voltage:300V
Rated Current:8A
Withstanding Voltage:AC2000V/1Min
Wire Range:20-16AWG
Machanical:
Temperature Range: -40deg to +105deg
Max. Soldering: +250deg for 5 seconds
Strip Length:6mm

2.How to order
A. Model & Poles & Color & Screw type & Quantity , & other requirements
B. Sample order is acceptable
C. Product test and custom design is acceptable.
3.Payment
A. T/T, L/C, Western Union, Paypal
B. EXW, FOB, CFR, CIF, FCA
C. ≤USD10,000 , 100% deposit ; ≥USD10,000 , 30-50% deposit
4.Packing
A. Plastic bag/case + paper box + out carton, desiccant is acceptable
B. Special package requirements are acceptable
5.Shipping
A. DHL, TNT, UPS, Fedex, ARAMEX, SF, SEA,AIR,other service is acceptable
B. Small order delivered within one week, bulk order within one month
6.Certificate: CE, ROHS
7.Guarantee
A. we guarantee the terminal blocks and connectors we are selling are high quality.
B. You need to inform us by email af first if you intend to replace the products.
C. The reason for replacement has to be offered.
D. Shipping cost of returning is non-refundable.
E. The wrong item you purchased and you intend to return can not be accepted.
F. If you don't receive the cargo on expected date over one week, please contact us immediately.
G. Import duties are responsibility of you.
