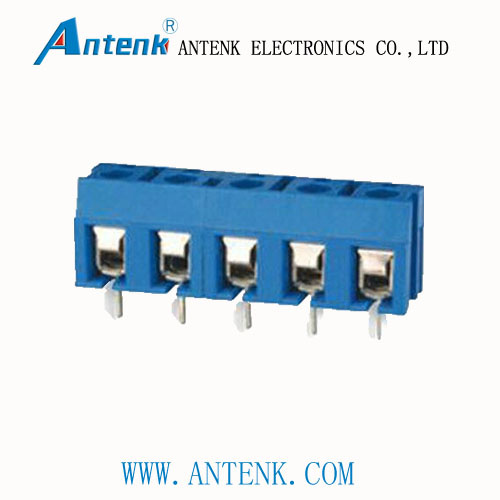

PCB Terminal Block (Wire Protector System)

Name: PCB Terminal Block (Wire Protector System)
Brand: all-electronics-online.com
SKU: 650204095
Availability: InStock
Rating: 4.4 (111 reviews)

Price:	US $ 0.05/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	AT301V Pitch 5.0mm/5.08mm001
Markets:	North America,South America,Eastern Europe,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage Rating:	300V
Current Rating:	16A
Wire Range:	22-14AWG1.5mm²
Housing:	PBT(UL-94V-0)
Application:	PCB
Environmental Protection:	General
Connection Mode:	In-Line Connector
Shape:	Rectangle
Contact Termination Form:	Welding Connection

Product Description

PCB Terminal Block (Wire Protector System)
Pitch 5.0 or 5.08mm, 7.5mm or 10.0mm

Model NO.: AT301V
Application: PCB
Pitch: 5.0mm/5.08mm
Export Markets: Global

Voltage Rating: 300V
Current Rating: 16A
Wire range: 22-14AWG1.5mm²
Housing: PBT(UL-94V-0)
Wire Protector: Stainless Steel
Solder Pin: Brass, Tin Plated
Screw: M2.6, Steel(A3), Zinc Plated
Torque: 0.4N. m

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
