Yueqing Runjie Electric Co., Ltd. >> PCB Type DC/DC Solid State Relay SSR

PCB Type DC/DC Solid State Relay SSR

PCB Type DC/DC Solid State Relay SSR
Price: US $ 2/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: JGX-5FD
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Load Current: 5A
Load Voltage: 220VDC
Control Voltage: 3-32VDC

Product Description

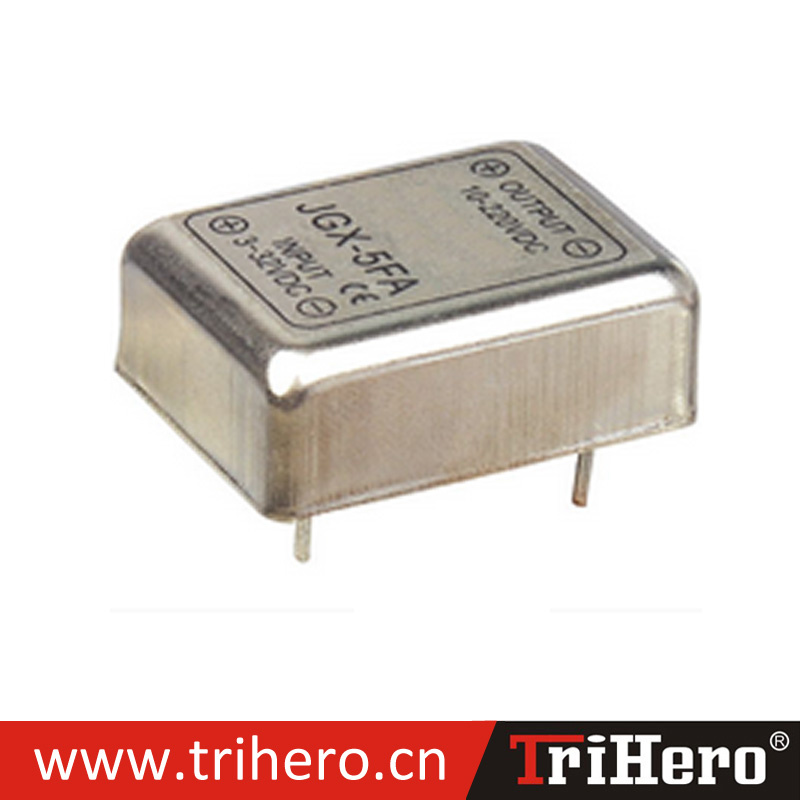

JGX-5FD PCB type DC/DC solid state relay(SSR)


1) Datasheet:
Load voltage60VDC,110VDC,220VDC
Load current5A
Control voltageDC3-14V,DC3-32V
Control current6-35mA
Voltage drop≤1.5V
Leakage current≤1.5mA
On-Off time≤10mS
Dielectric strength1500VAC
Insulation resistance500MΩ/500VDC
Ambient temperature-25~+70ºC
Mounting methodPCB
Indication/
Weight32g

2) Dimension:












Yueqing Trihero Elecric is located in "Capital of China's low-voltage electrical appliances, " the Liuzhou City, is a collection of scientific research, development, production and sales as one of the non-regional joint-stock enterprises.

The company mainly produces relays, instruments, sensors, circuit breakers, frequency inverter and other products, has now extended to manufacturing plastic products, filter paper, and other diversified development. The company's industrial park covers an area of 7, 300 square meters, with a number of joint ventures and holding enterprises, its brand "Trihero" is in the industry favored. The company's quality system complies with international standards, in the same industry enterprises is the first to pass ISO9001: 2000 international quality management system and the CE, RoHS certifications.

After years of operation, our products are sold to more than 60 countries, we have built many overseas network with the help of local partners to meet the customer diversified demands.

With the development of society, we will work harder to provide customers with reliable, stable products and a full range of professional services. Our goal is: To become the user trust, with first-class scientific research and development capabilities of high-tech enterprises, and always pragmatic innovation, forge ahead spirit, to create a century Sanying and make unremitting efforts!
