| Prod Model: |
PCB-1251 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Guangdong, China (Mainland) |
| Copper Thickness: |
0.5oz-4oz |
| Surface Finishing: |
HASL, HASL Lead Free, OSP, Immersi |
| Board Thickness: |
1.6 mm |
| Layout: |
1-22 Layer |
| Started: |
PCB Board Design |
| Supported Material: |
Fr4, Rogers, Cem-3 |
| Parts Type: |
Orginal |
| Test: |
E-Test 100% |
| Test For PCB Assembly: |
X-ray for BGA Componnets |
| Metal Coating: |
Copper |
| Mode Of Production: |
SMT |
| Layers: |
Double-Layer |
| Base Material: |
FR-4 |
| Certification: |
ISO |
| Customized: |
Customized |
| Condition: |
New |
Product Description

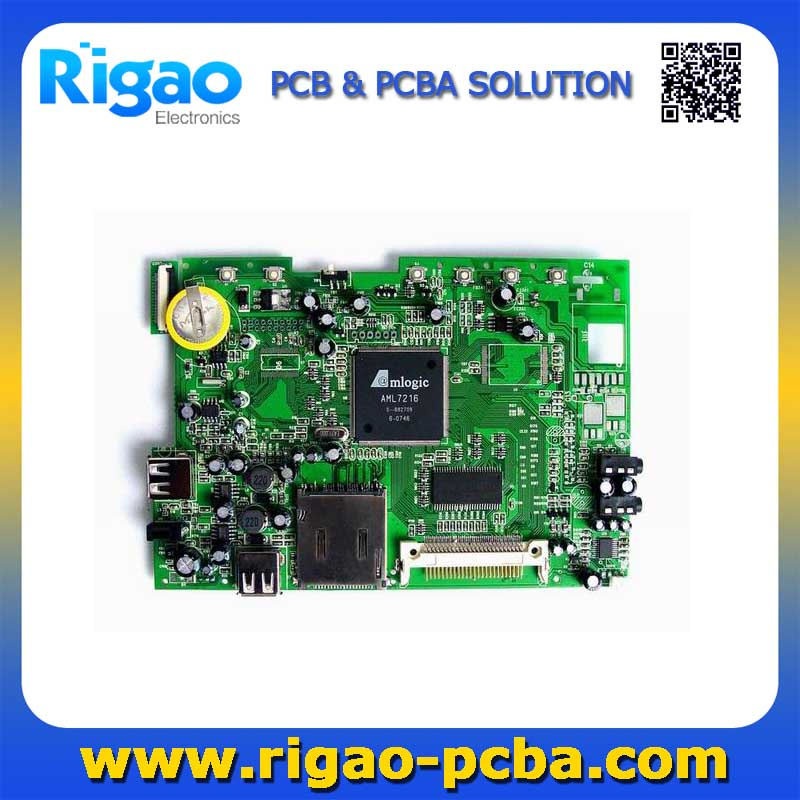

PCBA EMS Electronic Manufacturing PCB with Assemly
Product Feature of pcb with assembly:
1. Certificate of UL, ISO9001, ISO14001 and ISO/TS16949.
2.4-5 days fast PCB and FPC delivery
3. Our Products meet the RoHS & WEEE lead-free requirement.
4. Minimum Order: 1 Piece
5. PCB and PCBA manufacturer
6. PCB and PCBA Productivity: 3, 000 PCS/Year
PCB prarmeter and specification:
| Type of PCB Assembly | SMT, Thru-hole,COB |
| SMT | Position accuracy:20 um |
| Components size:0.4×0.2mm(01005) _130×79mm,Flip-CHIP,QFP,BGA,POP |
| Max. component height::25mm |
| Max. PCB size:680×500mm |
| Min. PCB size:no limited |
| PCB thickness:0.3 to 7mm |
| Wave Solder | Max. PCB width:450mm |
| Min. PCB width: no limited |
| Component height:Top 120mm/Bot 15mm |
| Sweat-Solder | Metal type :part, whole, inlay, sidestep |
| Metal material:Copper , Aluminum |
| Surface Finish:plating Au, plating sliver , plating Sn |
| Air bladder rate:less than20% |
| Supporting: | Software burning and Function Testing |
| Testing | X-RAY Inspection & AOI Test, ICT,Probe flying,burn-in,function test,temperature cycling |
| Lead Time | 12days-15days |
| File Fomat | Bill of Materials,Gerber Files, Pick-N-Place File (XYRS),PCB,Altium, EDA etc |
Dimension: 30mm*28mm
Base Material: 0.1mm Cu/25um ADH/25um PI+25um ADH/35um Cu/
20um ADH/ 35um Cu/ 2525um PI+25um ADH/
25um ADH/ 0.1mm Au
Thickness: 1.6mm
Line Width/Space: 0.15mm/0.15mm
Surface Treatment: ENIG: Au: 0.03-0.09um, Ni: 2-6um
Minimum via diameter: 0.2mm
The smallest hole: 0.35mm
Outline Tolerance: +/-0.2mm
About Rigao:
We are an experienced PCB (FPC) and PCBA manufacturer in Shenzhen, China. After several years' developing and improving, our company establishes our main business in three principal areas-Printed Circuit Boards, PCB Assembly and Components Procurement. From prototype to mass production, we are able to guarantee a complete service with technical back up, offering a cost advantage and continuity of supply.
Our products are including PCB, FPC, PCBA, Rigid-flex PCB, Multi-layer FPC, EM-shielding FPC, Finger-impending FPC, Special R/I FPC, Irregular-shape FPC, Regular FPC, multilayer PCB, printed circuit board, PCB printed circuit board, PCB assembly, PCB board, PCB circuit, printed circuit board, FPCB, PCBA, FPC connector, PWB, FPC board, FPC connector circuit board, print circuit board, rigid PCB, flex-PCB, PCB printed circuit board, etc.
We always bear in mind that "Providing top-quality products and services to Customers" as our Quality Policy, and "Process with green products and seek for perfect environment" as our Environmental Policy.
We do believe that more and more friends from all over the world will know our sincerity and cooperate with us.
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
