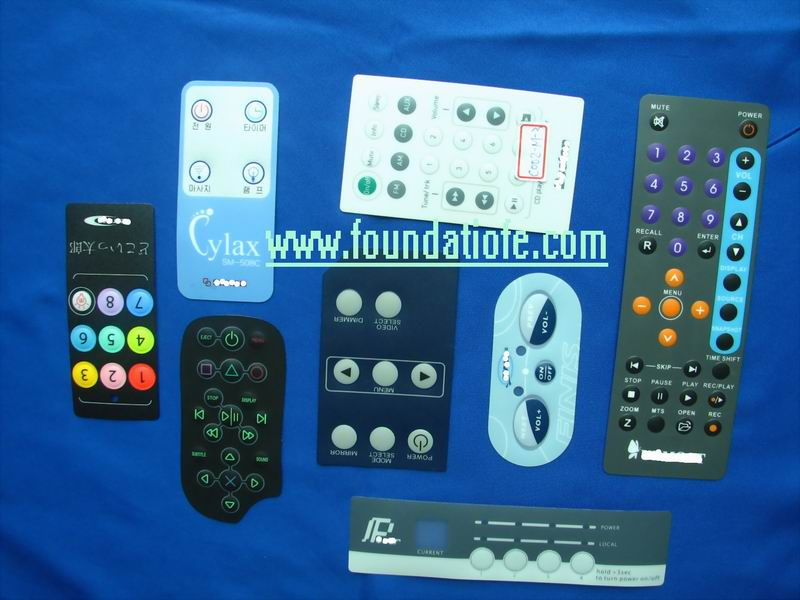

PCBA Graphic Overlay Membrane Panel Control Keypad Touch Switch

Prod Model:	HC-CK-011
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current:	25-100mA, 0~30V DC
Life Time:	>1 Million Times
Quality:	Top Quality
Touch Feeling:	Excellent Touch Feeling
Environmental Friendly:	Raw Material Pass RoHS, SGS Test
Material:	PET
Type:	Flexible
Application:	Calculator

Product Description

Graphic Overlay Membrane Panel Control Keypad Touch Switch:

Membrane switch has below main advantages.

1)Small and portable. Generally a membrane switch is several or dozens grams, it is quite convenient to carry or disassemble.

2)Aesthetic appearance. It adopts advanced silk screen printing technology, with special design; We can provide any custom solution you need.

3)Sealing. To meet customer's unique needs of the program, we can design the membrane switch to be water- proof, grease proofing, and static-free...With unique technologies, the membrane switch can endure a high voltage.

4)Good conductivity. The circuitry is printed with carbon, silver, copper foil and so on, it can be freely folded, and the resistance can be limited according to customer's specification.

5)Low cost. Membrane switch is low price, some even costs only cents. Compare to other electronic components which have same function, it is exactly cheap price.

6)Long lifetime. The materials are with high isolation, thermal resistance, fold resistance and rebound resilience. Moreover, the graphic can not be damaged because of its second surface printing.
1). Multicolored printed, embossed
2). Embeded in LEDs
Metal Dome Membrane Switch:
Material: Matte PC(smooth), gloss PC+matte oil, gloss PC, PET, and PVC
Thickness: 0.05-1.0mm
LED windows: Transparent, translucent, matte, gloss
Embossed keys: No embossed keys and domes, domes without embossed keys, embossed keys without domes, embossed keys and domes
Adhesive: 3M467, 3M468, and no adhesive
Tail: Tail with clear mask or green mask
Specialize in manufactuing membrane switch
Overlay+circuit+LED+metal dome or poly dome array+connector+double side tape
EL backlight +Rubber keys
Aluminum plate+Rubber keys
Metal domes
Flat without Tactile Effect
Embossing with Tactile Effect
Embossing with Metal Dome
Membrane Switch with FPC

Competitive Advantage:
1. Beautiful appearance, rich and bright in color, design can be arbitrary, the products can fully reflect the individual style of the product itself and designer.
2. Panel can wash, good protection of durable color, characters, logos and other panel contents without injury.
3. Small size, light weight, thin thickness, good tactility, abrasion resistant, installation and connection convenience.
4. Tightness is good, moisture-proof, dust-proof, waterproof, anti-oil, anti-corrosion and erosion of harmful gases proof, acid and alkali proof, quakeproof.
5. Low cost, high lifespan, membrane switch's design and manufacture are using the keyboard as a whole way, whether on the material or mold charges, the costs are lowest, the life expectancy of different types of membrane switch is more than 100million times.
6. Easy to operate, intuitive, safe and reliable, In-house 100% functionally tested, components are guaranteed without any intermittent problem.
7. Customized specification is available and keys can make different shapes
