PCBA (PCB Board Assembly) for Telecom Control

Prod Model:	FD
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Complex
Flame Retardant Properties:	V0

Product Description

PCBA SMD SMT assembly
- ISO9001 certificated factory
- 0201 Chips, PLCC, BGA
- AOI inspection
- 100% visual check

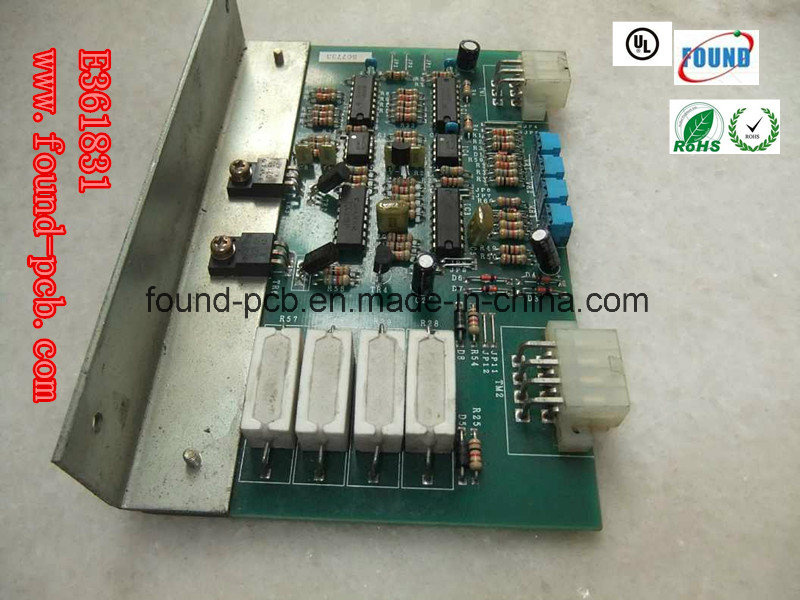

PCBA(Printed Circuit Board Assembly)for Telecom Control

We commit to offer high quality level circuit board(PCBA) to customer
*Abundant experience and strong ability in material sourcing, manufacturing, test and quality management
*Professional team in charge of product design
*Circuit boards 1 to 28 layers PCB layout, fabrication, PCB assembly and box building
*High-precision 0201 size components SMT technology
*RoHS compaint SMT, DIP process
*High-precision E-Testing include: ICT in circuit, function test, AOI, BGA repair device, etc
*Flexible production volume follow different customer requirement.

We offer quotation for clients within 3 working days, and reply E-mail within 6 hours. Send us an inquiry today.
Bidet cleaning
Design for female,help them resolving the washing problem during menstruation,pregnancy,prenatal and postnatal,away from the disease of gynecology.

Intelligent deodorization
Adopt automatic deodorizing device of catalyst and adsorption,remove smell and fresh air.

Heated Toilet Seat
Temperature ajustable for toilet seat,bringing you warm in cold season,feel comfortable and healthy.

Anti-bactirial Toilet Seat
Advanced antibactirial technique and meet national standard,Inhibitory effects on various germs,care for your health.

Warm Air Drying
Without paper and hands,comfortable and environmental.

4.Teachnical Data

Items		Data
Water Supply Way		Water supply
Water Supply Range		0.1-0.6Mpa
Rated Voltage		220/240AC  50/60Hz
Maximum Power		1800W
Cleaning Device	Warm Water Tank Volume	200ML
	Buttocks Cleaning Water	0.6-0.8L/min
	Female Cleaning Water Consumption	0.5-0.7L/min
	Maximum Heating Power	1800W
	Warm Water Control Temperature	Normal Temperature, Low Temperature(rough 32ºC), Moderate Temperature(rough 36ºC),High Temperature(rough 40ºC)
	Safety Measures	Temperature Sensor   Thermal Fuse
	Cleaning Time	120Seconds
Seat Ring Device	Maximum Heating Power	35W
	Seat Control Temperature	Normal Temperature, Low Temperature(rough 32ºC), Moderate Temperature(rough 36ºC),High Temperature(rough 40ºC)
	Safety Measures	Temperature Sensor   Thermal Fuse
Drying Device	Maximum Drying Power	400W
	Temperature Control	Normal Temperature,Low Temperature,Moderate Temperature,High Temperature(rough 32-60ºC,Warm air outlet temperature)
	Safety Measures	Temperature Sensor   Thermal Fuse
	Drying Time	180Secods The body left to stop drying
Deodorizing Device	Deodorant Way	Cold catalyst
	Deodorant Ability	200L/min
Saving Way		Intelligent energy saving way
Usage Ambient Temperature Range		4-40ºC
Operating Temperature Range		<95%

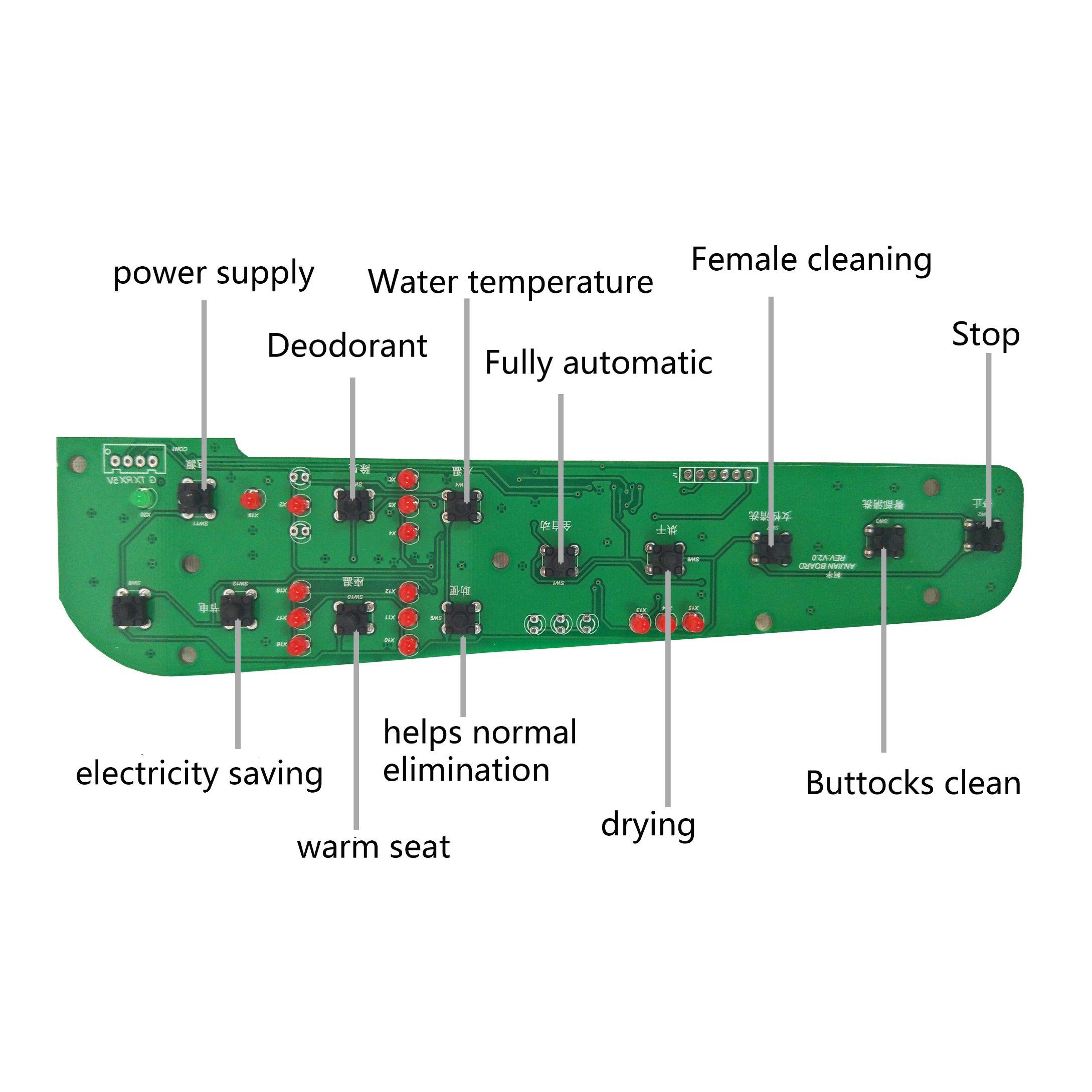

5.Fuction Description


1)Stop
This is the power on / off button.
2)Spray
Press this button for hip cleansing , it will run for 90 seconds and then automatically stop. Press the button again to second use, the nozzle will move back and forth to wash more skins of the body. During cleansing, press the This button to adjust the intensity of flushing water potential.
3)Bidet
Press this button for bidet function, it will run for 90 seconds and then automatically stop. Press the button again to second use, the nozzle will move back and forth to wash more skins of the body. During cleansing, press the this button to adjust the intensity of flushing water potential.
4)Dry temperature
While drying, you can also press this button to adjust the temperature, three shifts can be adjusted (low / medium / high).
5)Auto
Press this button to start full-automation function . Press the"Bidet" button,and then the "Auto" button, you will enjoy full-automatic service. (The toilet works in order of hip cleansing (cleansing for women) ,mobile massage and drying )
6)Turbo wash
Press this button to start turbo washing function, the spry rod reach out, and water come out from the hip cleansing water outlet. Water pressure is high-grade with pressurizing of the air pump,which make the water flow thin and strong. Press the "stop" button to stop running.
7)Water temperature
This is the water temperature adjustment button, three
shifts can be adjusted:low temperature,medium temperature,and high temperature,adjust the temperature according to your own preferences.
8)Seat temperature
This is the seat temperature adjustment button, three shifts can be adjusted:low temperature,medium temperature,and high temperature,adjust the temperature according to your own preferences.
9)Seat temperature
This is the seat temperature adjustment button, three shifts can be adjusted:low temperature,medium temperature,and high temperature,adjust the temperature according to your own preferences.
10)Deodorant
11)Economy
When nobody is using,press this button for energy-saving and maximum electricity-saving , the original settings will be automatically restored after 8 hours .
12)Power
Press this button to stop running,it will also automatically stop when getting up from the seat.

Q: How to get a sample?
A: Sample order acceptable, pls contact us for details.

Q: What is the leading time for sample and mass order?
A: Sample order will take 7-10 days, mass order will take 25days.

Q: Can we do OEM?
A: Yes, we accept OEM service.

Q: What is the MOQ?
A: We set 10pcs/model as MOQ, with neutral package

Shipping Method and Payment terms:

1. By DHL, UPS, FedEx, TNT using clients account.

2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.

3. By EMS (Usually for Russia Clients), price is high.

4. By sea for mass quantity according to customer's requirement.

5. By customer's Forwarder

6.By Paypal,T/T,West Union,etc.

Delivery Time for  PCB board:

1)  PCB production time:  sample:  3-4 days /  mass production: within 7 days
2)  Component purchase: 2  days if all components is available in our domestic market.
3)  PCB Assembly:  samples: whthin 2 days /  mass production: within 5 days
