| Prod Model: |
ETA-L270 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
120kg |
| Dimension: |
580*300*400 |
| Mode Of Production: |
SMT |
| Certification: |
SGS |
| Customized: |
Customized |
| Condition: |
New |
Product Description

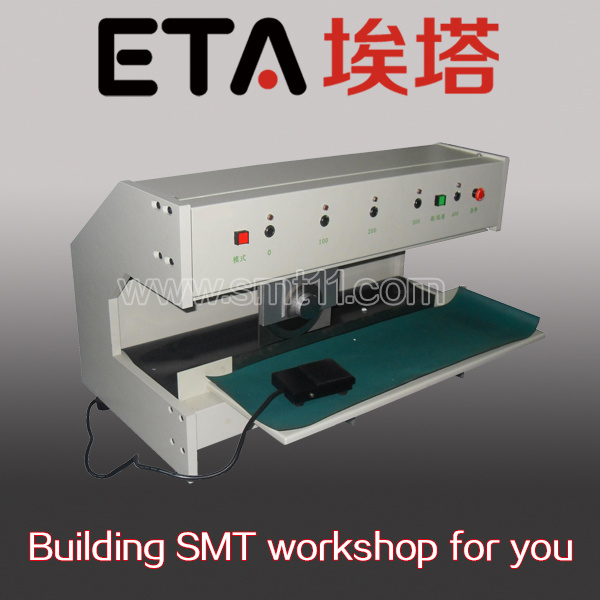

PCBA Separator Machine -V-Cut MachineProduct Description
ETA PCB separator machine,FPC separator,SMT PCB separator MACHINE
Cutting principle: PCB with V-CUT do linear motion , under the function of motor driving caused by up and down's motor knives.
Apply to all lined V-CUT PCB.
To avoid welding spot cracking and deceasing physical strength during cutting process.
PCB aim at V-CUT when sub-boarding, to get into cutting process under function of plunging cut and wheeling.
Guide plate in and out can ensure personal safety when cutting, woke piece has great reliability.
Special platform devices, any length of the PCB boards are available, especially for the LED. For LED Aluminum PCB, two heads conbine into one set , which can cut it well.
We can make to order , just adding the track. And desk is option.Two heads conbine into one machine, would be more suitable for the Aluminum PCB Cutting.High efficient and large production.
1.Separates boards up to 2.5mm thick
2.Shears boards safely with parts as close as 0.5mm to the score line, including ceramic capacitors
3.Operator foolproof! Panels cannot be inserted into the knives except on the score line
4.Pneumatically driven
5.Handles high components up to 70mm
6.Bow waves that can occur with round knives are avoided
7.Easy adjusting of distance between knives
Specification :
Model |
ETA-L270 |
ETA-L330 |
Max.cutting length |
270mm |
330mm |
Outside size(L×W×H) |
580×300×400mm |
700×300×400mm |
Cutting thickness |
0.3-3.5mm |
0.3-3.5mm |
Working air pressure |
0.50-0.70Mpa |
Weight |
120kg |
150kg |
Packaging & Shipping
Packageing Details : wooden case or customised package
Delivery Details: 15 workingdays
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within10 working days after the receipt of payment. If you are in urgent need of it,please kindly tell us.
