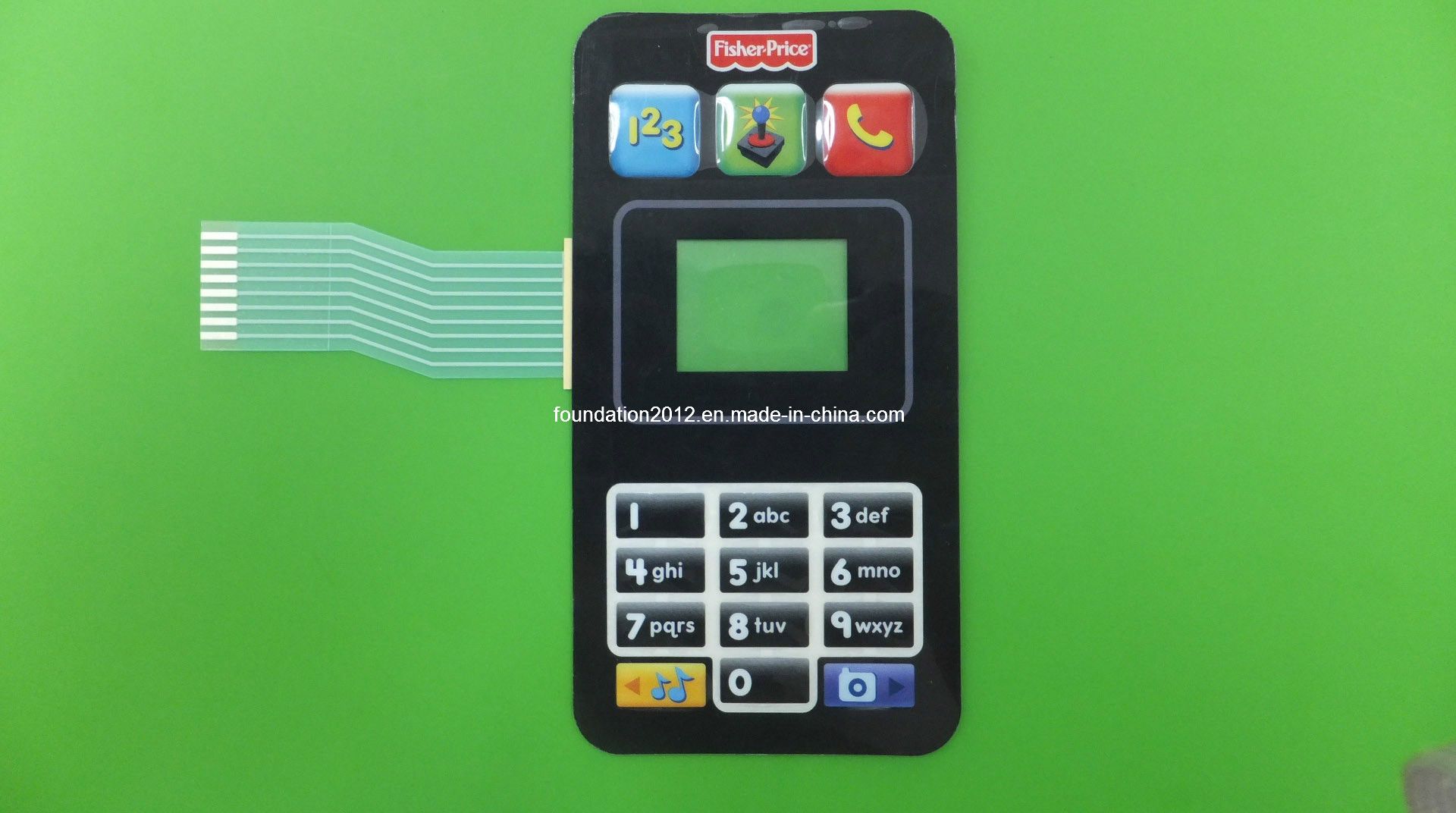

PCBA Touch Pad LED Panel Dome Membrane Switch

Product Description:
Membrane Dome Switch

Material: Polyester witch conductive sliver and Carbon
Rear Adhesive: American3M 467MP, 3M 468MP, 3M9472LE, etc

Flexible Circuits:
1.100% quality tested
2. Long life expectancy
3. LED inside( Bi-color)
4. FPC - double side circuit
Performance indicators:
1. Electronic characteristics
Circuit rating: 35V (DC), 100mA, 1W
Contact resistance: 10Ω --700Ω (According the trace length and materials to confirm)
Insulation resistance: > 100MΩ 250V DC
Contact bounce: ≤ 5ms Dielectric withstand: 250VRms (50-60Hz 1min)
Life expectancy: Flat type ≥ 5 million times, tactile type: ≥ 1 million times
2. Mechanical Properties Actuation force: Flat type 57-284G (2-10 Oz), tactile type 170-397g (6-14 Oz) Switch stroke: Flat type 0.1-0.5mm, tactile type 0.6-1.5mm
3. Environmental parameters
Operating Temperature: -40 - +80, Storage temperature: -40 - +85 Humidity: 40, 90% -95%, 240 hours.
Matching color: Pantone color matching system.

Production Capacity: 1000000times
Unit price: Negotiable/
Shipment terms: EXW
Payment terms: T/T
Origin: Dongguang
Packing: In carton

Product Description
Materials: Textured PC, gloss PC with matte finish, Autotype PET and PVC
Thickness: 0.5, 0.7, 0.8 and 1.0mm
LED windows: Clear or translucent with all colors
Embossed keys: Polydome and rim
Metal dome: Brand of Nicomatic and Innovan, nickel and gold plated
Tail: With mylar and UV
Connector: Nicomatic, FCI, Molex and Zif
Adhesive: 3M 467, 468, 3M9495, 3M7945 and 3M7959

Notice: We have the capacity to provide you membrane switches with other special requirements, such as water proof, Shielding, Windows/Lens Coating, Embedded LEDs, UV glossy/ matte/ textured, etc.
