PCM-32s100-638 (32S) Lithium Battery PCM

Name: PCM-32s100-638 (32S) Lithium Battery PCM
Brand: all-electronics-online.com
SKU: 783382905
Availability: InStock
Rating: 4.6 (24 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	5/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PCM-32S100-638
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Use:	Li-ion Battery Pack
Voltage:	134.4V
Delivery Date:	15days
Warranty:	One Year
Customized:	Customized
Condition:	New

Product Description

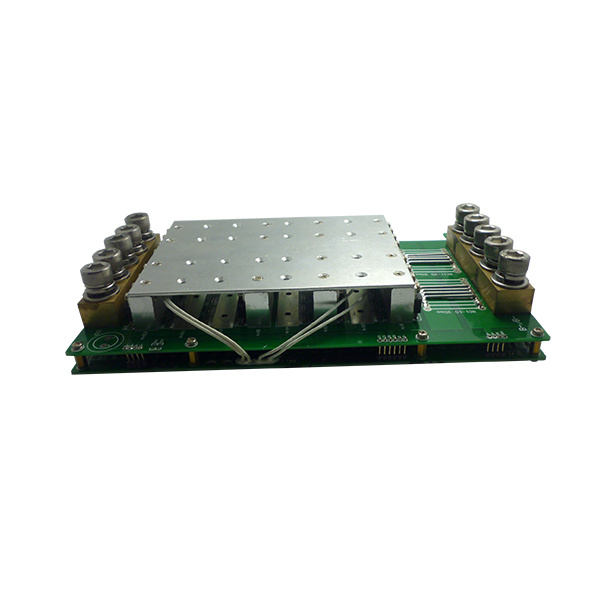

PCM-32S100-638(32S) Lithium Battery PCM

Protection Circuit Module Specifications For 118.4V Li-ion/Li-po Battery Pack
Model: PCM-32S100-638(LI-32S)
No.	Test item		Criterion
1	Voltage	Charging voltage	DC: 134.4V CC/CV(4.2V/1cell)
		Balance voltage for single cell	4.2V±0.025V
2	Current	Balance current for single cell	110mA±5mA
		Current consumption for single cell	≤20μA
		Maximal continuous charging current	90A
		Maximal continuous discharging current	90A
3	Over charge Protection ( single cell)	Over charge detection voltage	4.25±0.025V
		Over charge detection delay time	0.5S-2S
		Over charge release voltage	4.05±0.05V
4	Over discharge protection ( single cell)	Over discharge detection voltage	2.5±0.07V
		Over discharge detection delay time	10-30mS
		Over discharge release voltage	3.0±0.1V
5	Over current protection	Over current detection voltage	0.2±0.015V
		Over current detection current	300±20A
		Detection delay time	5ms-20ms
		Release condition	Cut load
6	Short protection	Detection condition	Exterior short circuit
		Detection delay time	200-500us
		Release condition	Cut load
7	Resistance	Protection circuitry(B- TO P-)	≤30mΩ
8	Temperature	Operating Temperature Range	-40~+85ºC
		Storage Temperature Range	-40~+125ºC
		L243W150T45mm

QUAWIN s a new hi-tech enterprise Engaged in the research and development ,manufacture and sales of Protection Circuit Module for Battery pack ,especially cylindrical Li-ion battery,Li-ion polymer battery pack.

We have successfully developed several series 1-32s ,continuous operation current up to 150A, BMS ,charger,battery pack ,what is more important ,we can produce them according to our customer requirement.

The BMS was applied to electric tools battery /e-bike battery /e-scooter battery /golf car battery/store energy battery and other backup power and so on. Charger apply (Li-ion,Lifepo4,Lead-acid ,NI-MH),Battery pack apply (electric tools,e-bike, electric motor car ,golf car ,car start, Medical equipment)and so on.

Quality is our priority, win by quality" which is the origin of the our company name --Quawin.

We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.

As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.

We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.

We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.

To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
