Product Description

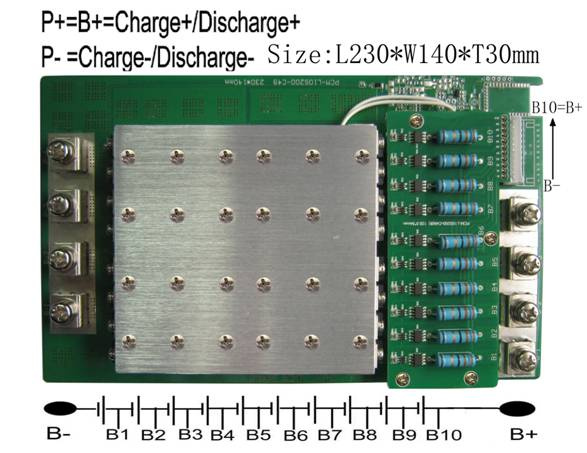

PCM For 8S Li-ion/Li-polymer/LiFePO4 Battery Pack (PCM-L10S200-C49)
Quick Detail:
Brand Name: QUAWIN/OEM
Specified Types: 4S Li-ion/Li-polymer/LiFePO4 Battery Pack
Place of Origin: Guangdong China (Mainland)
Charging Voltage:
Li-ion/Li-polymer: 29.6V±0.05V
LiFePO4: 25.6V±0.05V
Max. continuous charging current: 120A
Warranty: 12months
Packaging & Delivery:
.Netural labels, Antistatic bag /white box and standard export carton/customized
. Netural packing/Carton box with less than 10KGS
. Delivery Detail: sample within 5 work days, 15 days for bulk order
Specifications:
| Model: PCM-L10S200-C49 |
| No | Test item | Lifepo4 | Li-ion/Li-polymer |
| 1 | Voltage | Charging voltage | C/CV(3.65V/cell)
DC:29.2V | CC/CV(4.2V/cell)
DC: 33.6V |
| Balance voltage for single cell | 3.65V±0.05V | 4.20V±0.05V |
| 2 | Current | Balance current for single cell | 127±10mA | 127±10mA |
| Current consumption for single cell | ≤50μA | ≤50μA |
| Max. continuous charging current | 120A | 120A |
| Max. cont. discharging current | 120A | 120A |
| 3 | Over charge
protection
(single cell) | Over charge detection voltage | 3.8V±0.05V
(optional) | 4.25±0.05V
(optional) |
| Over charge detection delay time | 1-5S | 1-5S |
| Over charge release voltage | 3.8±0.1V | 4.15±0.1V |
| 4 | Over discharge
protection
(single cell) | Over discharge detection voltage | 2.0±0.1V
(optional) | 2.75±0.1V
(optional) |
| Over discharge detection delay time | 2~3S | 2~3S |
| Over discharge release voltage | 2.3±0.05V | 3.0±0.1V |
| 5 | Over current
protection | Over current detection voltage | 0.06~0.6V | 0.06~0.6V |
| Over current detection current | 800±100A
(adjustable) | 800±100A
(adjustable) |
| Detection delay time | 5~60ms | 5~60ms |
| Release condition | Cut load, | Cut load, |
| 6 | Short
protection | Detection condition | Exterior short circuit |
| Detection delay time | 200~800us |
| Release condition | charge up |
| 7 | Resistance | Protection circuitry | ≤20mΩ |
| 8 | Temperature | Operating Temperature Range | -40~+70ºC |
| Storage Temperature Range | -40~+125ºC |
| 9 | Dimension | L230*W140*T30mm |
We have over six hundreds of PCM/BMS series products for your choice,most of them widely used for Li-ion battery pack, Li-Polymer battery pack, LiFePO4 battery pack and so on.
Main components for our PCB/BMS normally adopt imported raw material for relaible quality control and zero RMA.
PCM for 1-5S Li-ion/Li-Polymer/LiFePO4 battery pack
PCM for 6-35S Li-ion/Li-Polymer/LiFePO4 battery pack(With balancing function can be added)
PCM for high rate/high power Battery Pack
PCM for E-bike/E-scooter/E-motorcle/E-tool etc battery pack
Battery fuel guage/Battery charging management system
All kinds of customized PCM/BMS OEM/ODM welcome
Quality is our priority, win by quality" which is the origin of the our company name --Quawin.
We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.
As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.
We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.
We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.
To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
