PCM with Battery (PCM-L05S30-219(5S))

Name: PCM with Battery (PCM-L05S30-219(5S))
Brand: all-electronics-online.com
SKU: 722160455
Availability: InStock
Rating: 4.6 (149 reviews)

Price:	US $ 2/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	2/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PCM-L05S30-219(5S)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Red
Base Material:	FR-4
Mode Of Production:	SMT
Metal Coating:	Copper

Product Description

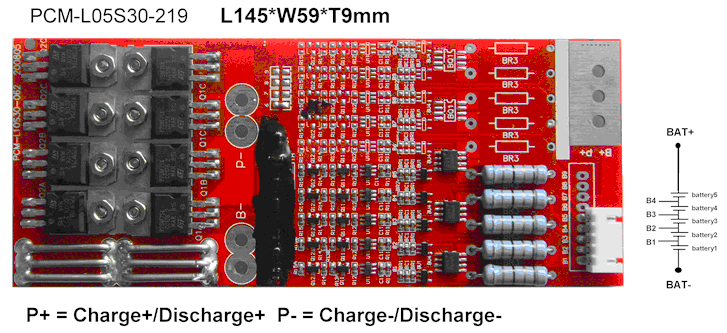

Protection Circuit Module Specifications For 37V Li-ion Battery Pack
PCM-L05S30-219(5~10S)

Max. Continuous Discharging current: 20A
Dimension(mm): L145*W59*T9
Balancing function: YES
5S-10S available

No.	Test item		Criterion
1	Voltage	Balance voltage for single cell	4.2V±0.025V
2	Current	Maximal continuous charge current	10A
		Maximal continuous discharge current	25A,20A
		Balance current for single cell	62mA±3mA(can adjust)
		Current consumption for single cell	≤20μA
3	Over charge Protection	Over charge detection voltage	4.28±0.025V
		Over charge detection delay time	0.96S_1.4S
		Over charge release voltage	4.08±0.025V
4	Over discharge protection	Over discharge detection voltage	3.0±0.05V
		Over discharge detection delay time	115_173mS
		Over discharge release voltage	3.0±0.05V
5	Over current protection	Over current detection voltage	0.62v
		Over current detection current	75±5A(can adjust)
		Detection delay time	7.2ms_11ms
		Release condition	Automatic Recovery
6	Short protection	Detection condition	Exterior short circuit
		Detection delay time	200-500us
		Release condition	Automatic Recovery
7	Resistance	Protection circuitry(B- TO P-)	≤20mΩ
8	Temperature	Operating Temperature Range	-40~+85°C
		Storage Temperature Range	-40~+125°C
