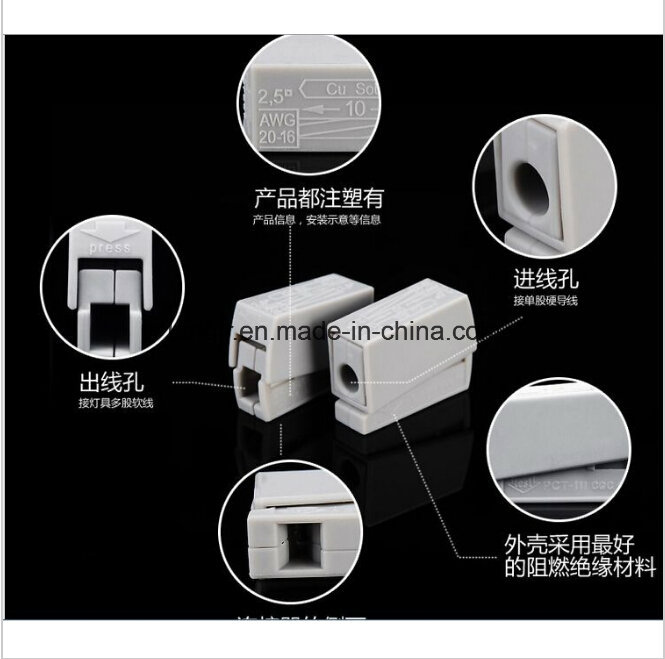

Pct111 Wire Wiring Connector for Lamp 1pin Push Wire Conductor Terminal Block AWG 20-12

Name: Pct111 Wire Wiring Connector for Lamp 1pin Push Wire Conductor Terminal Block AWG 20-12
Brand: all-electronics-online.com
SKU: 792090405
Availability: InStock
Rating: 4.9 (97 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PCT111
Rated Voltage/Current(V/a):	400/24
Strip Length(mm):	12mm
Insulation Material:	PA66
Contact Points:	Tin Coating
Application:	Wer Supply
Environmental Protection:	General
Connection Mode:	In-Line Connector
Shape:	Rectangle
Contact Termination Form:	Wire Connector

Product Description


Product Type	PTC111
Cross section	1.0 - 2.5 mm², 14 - 12 AWG
Wiring method	Single hard wire
Connection method	CAGE CLAMP CONNECTION
Cross section	0.5 - 2.5 mm², 20 - 12 AWG
Wiring method	Single hard wire ,Multi-strand hard wire, Multi-strand Soft wire Suitable
Connection method	Push-Wire Connection
Rated voltage	400 V
Measured shock voltage	4 kV
Rated Current	24 A
Rated Power	5 kW
Weight	2.04 g
Color	Grey
Wiring type	Side-entry
Number of connection Points	2 (2 holes)
Number of potentials	1
Material of the shell	Modified nylon6.6
Material of the diversion Strip	Electrolytic Copper (Surface tinned)
Material of the Spring	Nickel-cadmium alloy steel
Size	*20.5 mm 8.5 mm* 15.5 mm / 0.807 in* 0.335in * 0.610 in**
Strip length	10 mm / 0.39 in
Safety Certification	UL,CE,CQC,CSA,CCA
Environmental Certification	RoHS compliant
Country of Origin	DEUTSCHLAND
Maximum continuous use temperature of 85°C
Maximum tolerable use temperature of 105°C
