Product Description

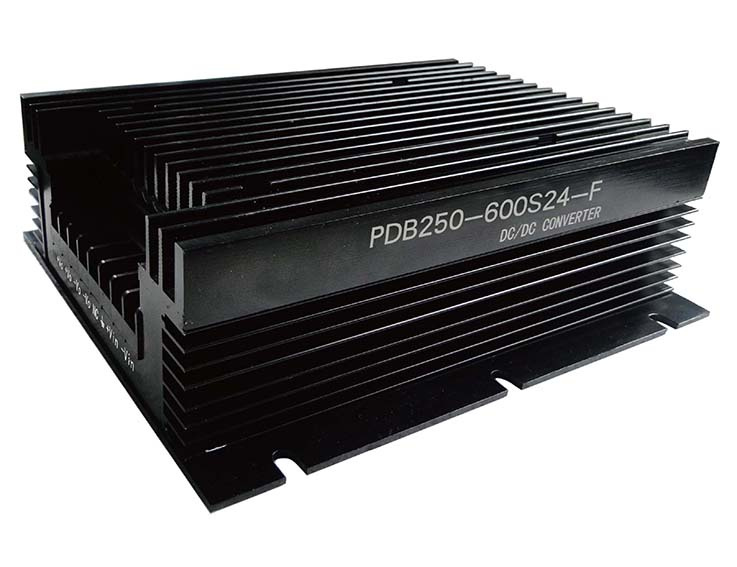

PDB-F DC/DC Small Volume Module Power Supply Series 100-300W
Features
Wide range of input range
Under-voltage protection for input
Full load efficiency up to 92%
Design for high reliability, long lifetime
High voltage input, high output power
Wide range of power, easy to upgrade
Input Characteristic
Input voltage range...70 ~ 140 VDC Rated value: 110VDC
200 ~ 400 VDC Rated value: 300VDC
400 ~ 800 VDC Rated value: 600VDC
Reverse Protection
Fuse Outside
Output Characteristic
Voltage set-point accuracy...± 1%
Line regulation(main)...± 0.2%
Load regulation(main)...± 0.4%
Temperature coefficient...± 0.01%/º C
Output current limiting...120%(Typ)
Dynamic response...400μ S
Output current...5-30A
Output voltage...5-48V
Power...100-300W
General Characteristic
Switching frequency...160-200 kHz
Isolation resistance...200 MΩ
MTBF...>500000H
Isolation voltage
Input-output: >1500 VAC/1min(leakage current<5mA)
Input-case: >1050 VAC/1min(leakage current<5mA)
Output-case: >500 VDC/1min
Environmental Characteristic
Case temperature...Industry: -25-+85º C; MilitaryI: -40~ +85º C
Military II: -55~ +85º C
Storage temperature...Industry: -45~ +105º C; Military: -55~ +105º C.
| Input Voltage(VDC) | Input Voltage(Range) | Output Voltage(VDC) | Output Current(A) | Pk-pk(mv)
Ripple and noise | Efficiency | Models |
| S | 110 | 70-140 | 05 | 20 | 50 | 87% | PDB100-110S05-F |
| 110 | 70-140 | 12 | 20 | 100 | 88% | PDB240-110S12-F |
| 110 | 70-140 | 24 | 10 | 200 | 89% | PDB240-110S24-F |
| 110 | 70-140 | 48 | 6.25 | 400 | 91% | PDB300-110S48-F |
| 300 | 200-400 | 05 | 20 | 50 | 87% | PDB100-3000S05-F |
| 300 | 200-400 | 12 | 12.5 | 100 | 89% | PDB150-300S12-F |
| 300 | 200-400 | 24 | 10 | 200 | 90% | PDB240-300S24-F |
| 600 | 400-800 | 05 | 20 | 50 | 87% | PDB100-600S05-F |
| 600 | 400-800 | 12 | 12.5 | 100 | 89% | PDB150-600S12-F |
| 600 | 400-800 | 24 | 10 | 200 | 90% | PDB240-600S24-F |
