| Prod Model: |
PDB75-48S24-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
116.4*65*21.5 |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Output Power: |
75W |
| Input Voltage: |
48V |
| Brand: |
Pengtu |
Product Description

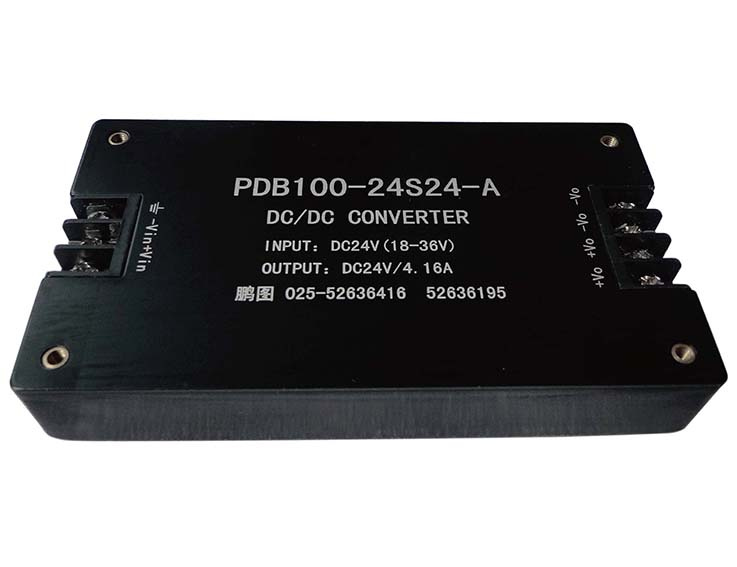

PDB-A DC/DC Small Volume Module Power Supply Series 75-120W
Features
IItype input filter
High power density
2X, 4X voltage input
Design for high reliability, long lifetime
Easy installation, duai side pin out
Attractive outline design
Input Characteristic
Input voltage range...9 ~ 18 VDC Rated value: 12VDC
18 ~ 36 VDC Rated value: 24VDC
36 ~ 72 VDC Rated value: 48VDC
70 ~ 140 VDC Rated value: 110VDC
9 ~ 36 VDC Rated value: 18VDC
Reverse Protection Fuse Outside
Output Characteristic
Voltage set-point accuracy...± 1%
Line regulation(main)...± 0.2%
Load regulation(main)...± 0.4%
Temperature coefficient...± 0.01%/º C
Output current limiting...120%(Typ)
Dynamic response...400μ S
Output current...2-10A
Output voltage...5-48V
Power...75-120W
General Characteristic
Switching frequency: 160-200 kHz
Isolation resistance: 200 MΩ
MTBF: >500000H
Isolation voltage: Input-output: >1500 VAC/1min(leakage current<5mA)
Input-case: >1050 VAC/1min(leakage current<5mA)
Output-case: >500 VDC/1min
Environmental Characteristic: Case temperature...Industry: -25-+85º C; MilitaryI: -40~ +85º C Military II: -55~ +85º C
Storage temperature: Industry: -45~ +105º C; Military: -55~ +105º C.
Our service
1. Your inquiry will be reply within 24hours
2. Well-trained and experienced staffs to answer all your inquiries in English
3. We have strictly management on the production and quality control
4. We have our own factory and professional engineers team to help you to resolve the prombles
5. We are greatly to accept the sample order for testing our quality, serive and your market.
Warranty term
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free new products or components based on the proof-documents.
2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, we will provide paid service.
If you want to know more information, pls feel free to contact us. Any feedback from you will be given the prompt attention and reply!
PDB-A Series Normal Models (Remark: Custom-made specifications are acceptable. )
| Input Voltage(VDC) | Input Voltage(Range) | Output Voltage(VDC) | Output Current(A) | Pk-pk(mv)
Ripple and noise | Efficiency | Models |
| S | 12 | 9-18 | 12 | 6.25 | 120 | 83% | PDB75-12S12-A |
| 12 | 9-18 | 15 | 5 | 150 | 83% | PDB75-12S15-A |
| 24 | 18-36 | 28 | 4.46 | 280 | 84% | PDB125-24S28-A |
| 24 | 18-36 | 24 | 4.16 | 200 | 88% | PDB100-24S24-A |
| 48 | 36-72 | 12 | 6.25 | 120 | 85% | PDB75-48S12-A |
| 48 | 36-72 | 12 | 10.4 | 120 | 88% | PDB125-48S12-A |
| 48 | 36-72 | 24 | 3.2 | 200 | 82% | PDB75-48S24-A |
| 18 | 9-36 | 24 | 2 | 200 | 80% | PDB48-18S24-A |
| 18 | 9-36 | 12 | 4.29 | 100 | 82% | PDB50-18S12-A |
| 110 | 70-140 | 12 | 8.3 | 100 | 84% | PDB100-110S12-A |
| 110 | 70-140 | 24 | 4.16 | 200 | 84% | PDB100-110S24-A |
