Pdlc-Dlc Outdoor Waterproof Fiber Optical Assembly Patch Cord 7.0mm
| Price: |
US $ 1-20/Set |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
PDLC optic assembly |
| Fiber: |
Single Mode G.657A2 |
| Fiber Diameter: |
7.0mm |
| Material & Color For Jacket: |
LSZH Black |
| Tension Member: |
Aramid Fiber |
| Tensile Resistance(Short Term): |
500n(No Breakage) |
| Crush Resistance(Short Term/Long Term): |
1000n/100mm |
| Inflaming Retarding: |
IEC 60332-3 |
| Authentication: |
Meet with RoHS &UL |
| Connector: |
LC, Dlc, (PC/APC) |
| Mechanical Life: |
500cycles |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
Pdlc Outdoor Waterproof Fiber Optical Assembly |
| Sheath Material: |
LSZH |
Product Description

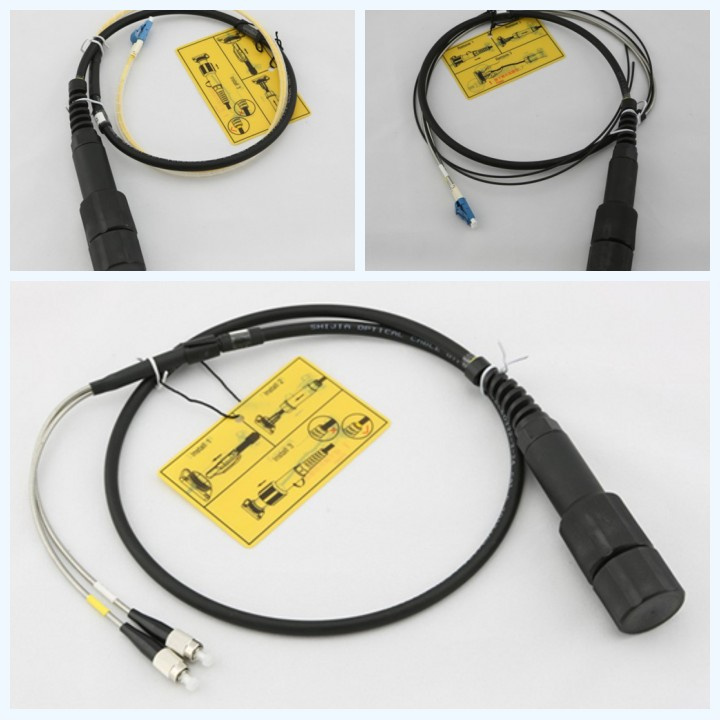

PDLC-DLC Outdoor waterproof Fiber Optical assembly patch cord 7.0mm
PDLC Optical Cable Assembly Waterproof Outdoor Protected Cable is standard size for Duplex LC Connectors, and the outer housing with metal protective device. Also they meet with the functions of waterproof, dustproof. This patch cords widely used in FTTA, Base station, and the outdoor waterproof condition.
Features
The PDLC Waterproof patch cord used for outdoor RRU transmitting optical signal and remote fiber feeder etc;
1. Standard Duplex LC connector, well connected with standard LC adaptor
2. Available Single mode and Multimode
3. IP67 protection, salt-mist proof, humidity proof, dust proof
4. Low insertion/return loss, steady optical transmitting.
5. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
Applications
1. Widely used in FTTA & FTTH
2. Used for 3G 4G base station
3. BBU, RRU, RRH, LTE
Products Data| Item | Data |
| Insertion Loss | ≤0.3dB |
| Mechanical life | 500cycles |
| Working temperature | -40°C~+70°C |
| Storage temperature | -40°C~+70°C |
| Operating temperature | -10°C~+50°C |
| Protection Level | IP67 |
| Tensile Data | Tensile between junction and fiber cable≥180N |
| Out shell inflaming retarding | UL94 V-0 |
| Out shell Uvioresistant | UL 746C |
| Authentication | Meet with RoHS |
GYFJH 7.0mm fiber cable| Item | Data |
| fiber | Single mode G.657A2 |
| Fiber diameter | 7.0mm |
| Material & color for jacket | LSZH black |
| Tension member | Aramid fiber |
| Max. attenuation | ≤ 0.4dB/km at 1310nm
≤0.3dB/km at 1550nm |
| Tensile resistance(short term) | 500N(no breakage) |
| Crush resistance(short term/long term) | 1000N/100mm |
| inflaming retarding | IEC 60332-3 |
| Temperature | -40~+70°C |
| Uvioresistant | PASS |
| Authentication | Meet with RoHS &UL |
LC Connector| Item | Data |
| Connector | LC, DLC, (PC/APC) |
| Insertion Loss | ≤0.3dB (PC/APC) |
| Return Loss | PC≥45dB, APC≥60dB |
| Operating temperature | -10°C~+50°C |
| Working temperature | -40°C~+70°C |
| Mechanical life | 500cycles |
