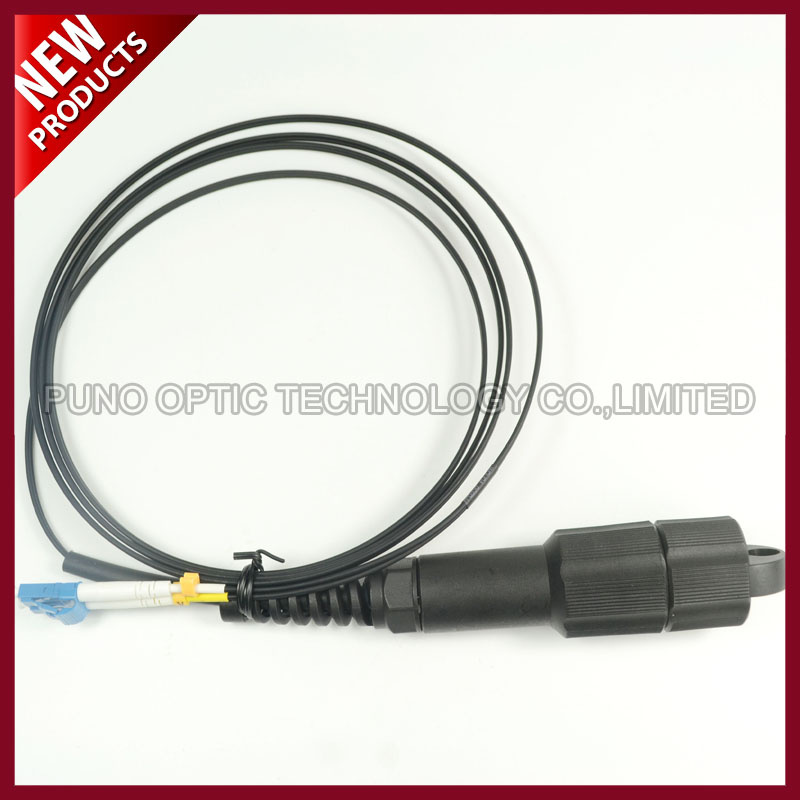

PDLC IP67 to LC Duplex Single mode Waterproof Fiber Optic Outdoor Patch Cable

Name: PDLC IP67 to LC Duplex Single mode Waterproof Fiber Optic Outdoor Patch Cable
Brand: all-electronics-online.com
SKU: 724711892
Availability: InStock
Rating: 4.8 (139 reviews)

Price:	US $ 38-40/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-099
Protection Level:	IP67
Tensile Data:	180N
Out Shell Inflaming Retarding:	UL94 V-0
Out Shell Resistant:	UL 746C
Cable Diameter:	7.0mm
Jacket:	LSZH Color Black
Connector:	LC PC Duplex
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	ISO9001

Product Description

PDLC IP67 to LC Duplex Single mode Waterproof Fiber Optic Outdoor Patch Cable

Technical Information:

PDLC Optical Cable Assembly Waterproof Outdoor Protected Cable is standard size for Duplex LC Connectors, and the outer housing with metal protective device. The connecting is safe and reliable. Also have the functions of waterproof, dust proof. This patch cords widely used in FTTA, Base station, and the outdoor waterproof condition.

Basic characteristics:

2 fibers Single-mode or multimode;
Built-in socket with square or hexagonal flange.

Application:

BBU, RRU, RRH, LTE;
Used for 3G 4G base station.

Product Specifications:

Protection Level	IP67
Tensile Data	Tensile between junction and fiber cable≥180N
Out Shell Inflaming Retarding	UL94 V-0
Out Shell Resistant	UL 746C
Cable Diameter	7.0mm
Material & Color for Jacket	LSZH Color Black
Inflaming Retarding	IEC 60332-3
Authentication	Meet with RoHS &UL
Connector	LC/PC Duplex

Insertion Loss	SM	≤0.7dB (Typical≤0.5dB)
Polish	MM	≤0.5dB (Typical≤0.2dB)
Return Loss	SM	≥50dB
Mechanical	Plug	≤1000N(Main Cable)
Return Loss	Socket	≤1000N(Branch Cable)
Operation Temp.	≤0.2dB

Payment & Shipping Terms:

Delivery In 7 - 15 Business Days;
Minimum Order Quantity: 1 Piece MOQ On Request;
Packaging Details: 1 ea for individual static-free bag;
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram;
Supply Ability: 5000 Pieces Per Monthly.

Fiber-to-the-Antenna (FTTA) installation for mobile communication systems:

Next generation mobile communication systems (3G, Wimax, LTE) using remote radio heads yield considerable savings on operational costs (up to 40%) and reduction of capital expenditure for new network roll-outs and upgrades. PUNO is a global expert for FTTA installations and provides complete solutions ranging from planning, product definition, volume production, logistics to installation services. We directly support OEMs, global and local operators, and installers.
