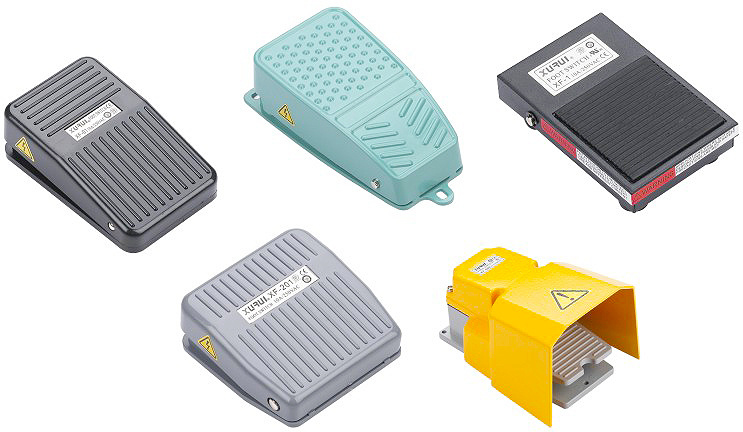

Pedal Switch, Electrical Foot Switch, Push Button Foot Switch

Name: Pedal Switch, Electrical Foot Switch, Push Button Foot Switch
Brand: all-electronics-online.com
SKU: 728049352
Availability: InStock
Rating: 4.5 (23 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	KHSD2108
Type:	Normal Open
Usage:	Check Button
Kind:	Single-pole on-off Switch

Product Description

Pedal switches are widely used in machine, light-textile, medicine, transportation, industry and antomatic production line.
manufcture pedal switch in China with CE,ROHS,ISO9001 certification.
1. Contact form: 1A1B, 2A2B, Push 1A Push 1B, Push ON Push OFF
2. Pedal material: Iron, Plastic Aluminum cast, Plastic
3.Rated voltage:125V/250V/380V
4.Rated current:10A/5A/3A
5.Wroking temperature:-25-+45
6.Mechanical endurance:≥500,000times
7.Electrical endurance:≥100,000times
What is specification of our foot switch?

Details of Pedal Foot Switch
Designation	Model	Rating	Type of switch enclosed & contact arrangement	Cable	Cantact	Action Force	Material of Rind
Standard Type Momentary Action	FS-101	10A 250VAC	Micro-switch momentary	0.75mm2, 3C/0.5 meter, 1 meter-3 meter	1A1B	1.2 kg	Plastics Aluminum Cast
	FS-102	15A 250VAC	CM1704	0.75mm2, 3C/1meter, 1.5 meter-2 meter	1A1B	1.1 kg
	FS-3	10A 250VAC	Micro-switch momentary 2PCS	0.75mm2, 6C/1meter, 1 meter-3 meter	2A2B	1.2 kg
	FS-3S	15A 250VAC	CM1704	0.75mm2,6C/1 meter, 1 meter-2 meter	2A2B	1.1 kg
Standard Type Alternate Action	FS-105	6A 250VAC	Imported alternative switch	0.75mm2, 2C/1 meter, 1 meter-2 meter	PUSH ON PUSH OFF	2 kg	Plastics Aluminum Cast
Standard Type Alternate Action	FS-106	6A 250VAC	Imported micro-switch	0.75mm2, 3C/1 meter	PUSH 1A PUSH 1B	1.5 kg	Plastics
Mini Foot Switch Foot End Push	FS-201	10A 250VAC	Micro-switch Momentary	0.5mm2, 3C/1 meter-3 meter	1A1B	0.7 kg	Plastics
	FS-01	10A 250VAC		0.5mm2, 3C/1 meter-3 meter	1A1B	0.7 kg
	FS-1	10A 250VAC		0.5mm2, 3C/1 meter -3 meter	1A1B	0.9 kg
Protective Guard Foot Switch	FS-302	15A 250VAC	CM1704	Accessory: Cable gland (No cable)	1A1B	3.2 kg	Plastics and Aluminum Ca

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
