Pencil Type Stainless Steel 4-20mA/1-5V Pressure Transmitter with LED Display for Option

Name: Pencil Type Stainless Steel 4-20mA/1-5V Pressure Transmitter with LED Display for Option
Brand: all-electronics-online.com
SKU: 686420431
Availability: InStock
Rating: 4.9 (62 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WNK805
Output Signal:	4~20mA, 1-5V
Housing Material:	304 Stainless Steel
Stability:	0.25% F.S./Year
Zero Drift:	50% of Full Range Span
Measuring Medium:	Gas, Steam, Liquid
Accuracy Grade:	0.1 0.2 0.5
Pressure Range:	0~600bar

Product Description

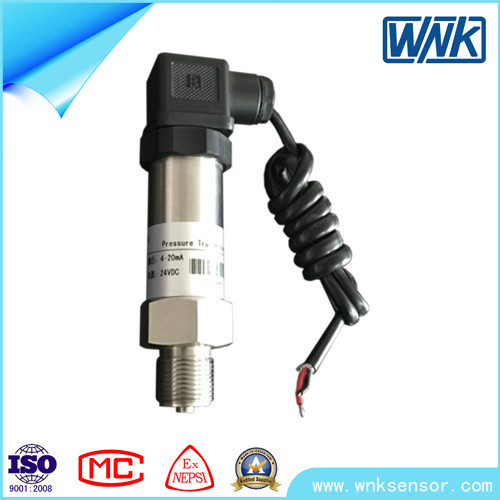

WNK805 Gauge/Absolute Pressure Transmitter
WNK805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably

Application
It is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media, it can also be used for level measurement

WNK805 Gauge/Absolute Pressure Transmitter
Applicable media	Liquid, Gas, Steam
Pressure range	0-0.2~-100kPa, 0-0.2~1000kpa, 60mPa
Pressure measurment	Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Accuracy	0.1, 0.2, 0.5
Stability	±0.25% FS/year
Zero drift	50% of full range span.
Max overload	250% of sensor range
Output signals	4~20mA, 1-5V
Display	LED (Optional)
Housing material	304 stainless steel
Mechanical connection	M20×1.5; 1/2-18NPT, Customized
Power supply	Non-explosion: 10.5~45V DC
Power supply	EEX ia:10.5~30 V DC
Ambient temperature	-40~85ºC
Compensation temperature	-10~70ºC
working temperature	-10~70ºC

For more information, please contact us for product manual.

Why Choose us?

1. we are manufacturer, with more than 12 years producing experience in our field.
2. Our produce quality is guaranteed, since 100% products we do temperature compensation and aging test before shipment.

Customer specific requirement /ODM/OEM is welcome.

Founded in 2004, ANHUI WNK ELECTRONIC ENGINEERING Co., Ltd is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument. We devote to developing, manufacturing and selling of automation control system, providing our customers comprehensive fieldbus technical solutions and factory informatization construction.

Our main products include iEOS industrial cloud data base developing plate form; Industrial Internet of Things; WNK-WMS industrial wireless measurement system; Onsite measurement instruments like temperature, pressure, flow, level sensor and transmitter etc, widely applied in Petrochemical, Chemical, Power, Steel and Cement.

WNK is the third company in China developed PROFIBUS transmitters. WNK series PROFIBUS transmitter is the fourth in China certificated by international PROFIBUS organization, and Chinese first that completely having proprietary intellectual property rights. WNK PROFIBUS-PA temperature transmitters filled Chinese blank technology in the field.

With strict, scientific management system, WNK has been certificated to conform to standard GB/T 19001-2008 / ISO 9001: 2008 by China CLASSIFICATION SOCIETY CERTIFICATION COMPANY. WNK commits to developing of new products and technical innovation. With continuously effort in advanced technology of automation control system, WNK has been undertaking some innovation projects of MST (Ministry of Science and Technology), and has been honored as promising enterprise of "Giant of Technology "in Hefei Hi-tech Industry Development Zone.

As Chinese first and unique qualified production enterprise of 0.075% measurement in Anhui, WNK brand was awarded Anhui Famous Brand.
