| Prod Model: |
BTRF-02. |
| Channels: |
2 |
| Frequency: |
4.5GHz |
| Isolation: |
50dB |
| Operating Temperature: |
-40 C~ +80c |
| Rotational Speed: |
200rpm |
| Others: |
One Channel Option |
| Guaranteed: |
1 Year |
| Lead Time: |
2 Weeks |
Product Description

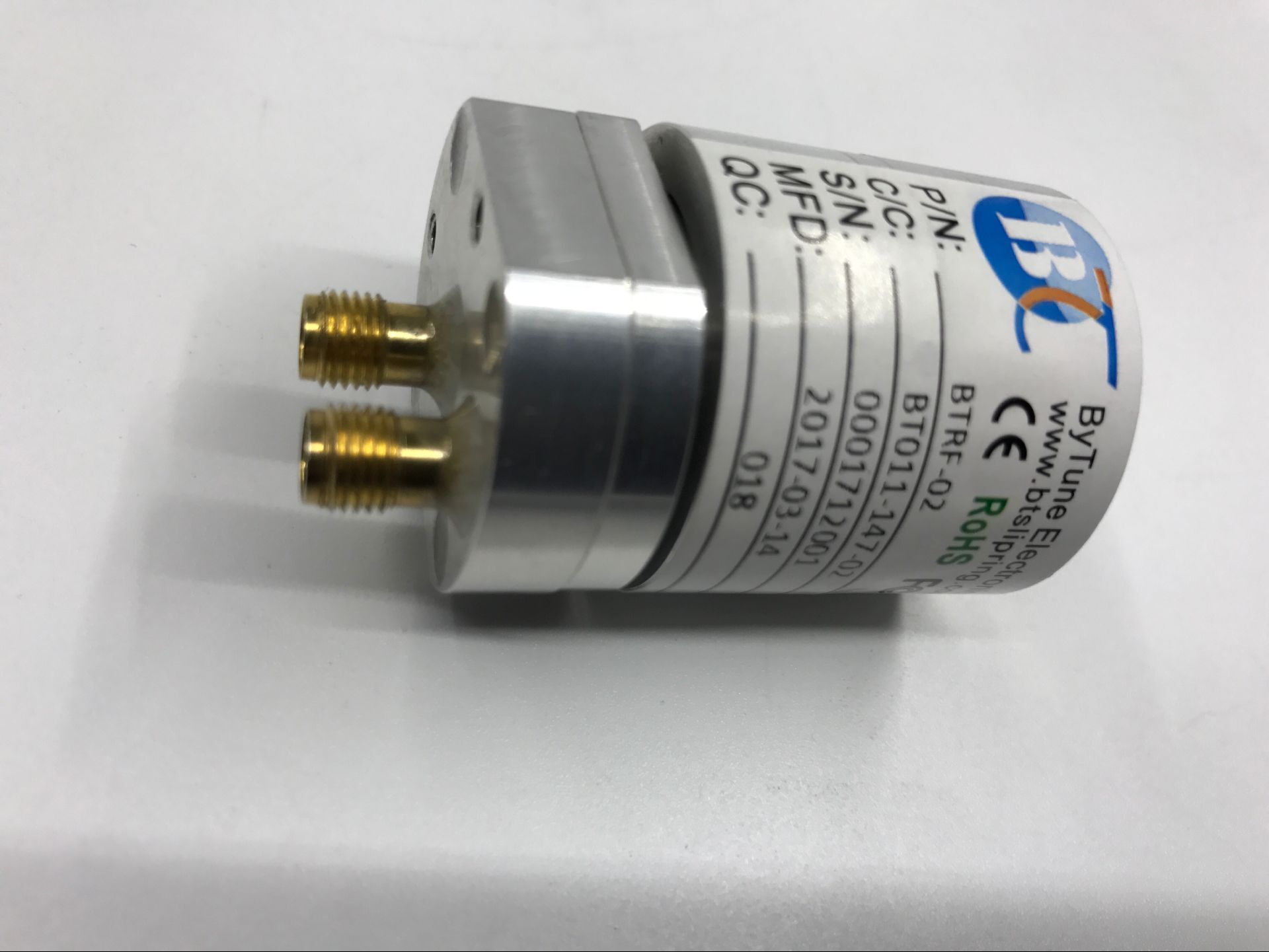

Perfect frequency radio rotary joint for antenna
Dual Channel Rotary Joint :Perfect frequency rotary joint from China at affordable price
A radio frequency rotary joint (or swivel joint) is a mechanism used to transfer fluid (under pressure or vacuum) from a stationary inlet to a rotating outlet, preserving and isolating the fluid connection. Radio frequency slip rings are engineered to endure a wide range of temperatures and pressures for a variety of conditions and environments. In addition, Radio frequency rotary joint may integrate multiple passages and handle different types of fluid simultaneously.
Radio frequency rotary joint typically used in satellite communication solutions to the military, broadcast media, and corporate customers.
Perfect frequency radio rotary joint for antenna
Dual Channel Rotary Joint
Radio frequency channel characteristics
| Channel designation | Channel 1 | Channel 2 |
| Interface | 1.5-3.5 female | 1.5-3.5 female |
| Frequency range | DC to 4.5 GHz | DC to 4.5 GHz |
| Peak power, max. | 1 kW | 1 kW |
| Average power, max. | 10 W | 10 W |
| VSWR, max. | 1.2 | 1.5 |
VSWR variation
during rotation, max. | 0.05 | 0.20 |
| Insertion loss, max. | 0.25 dB | 0.30 dB |
Insertion loss
variation during rotation, max. | 0.05 dB | 0.15 dB |
Phase variation
during rotation, max. | 0.5 deg. @ DC to 4.5 GHz | 4 deg. @ DC to 4.5 GHz |
| Isolation, min. | 50 dB | |
| DC carrying capability, min. | 0.5 A* @ 24 VDC | 0.5 A* @ 24 VDC |
Condition: DC applied to one channel only.
| Rotating speed, max. | 200 rpm | Life, min. | 10 Mio. revolutions |
| Starting torque, max. | 0.05 Nm
@ ambient temp. | Torque during rotation,
max. | 0.05 Nm @ ambient temp. |
Axial load on interface,
max. | ±5 N | Radial load on interface,
max. | ±5 N |
| Case material | aluminum alloy | Case surface finish | chromate conversion coat
per MIL-C-5541 |
| Connector material | SMA connector
copper alloy | Connector surface finish | gold plated |
| Weight, approx. | 0.13 kg | Marking | adhesive label |
General environmental conditions
| Operation | |
| Temperature range | -40°C to +70°C |
| Humidity | 95% RH (non-condensing) |
| IP protection level | IP60 per EN 60529 |
| Storage | |
| Temperature range | -55°C to +70°C |
| Humidity | 95% RH (non-condensing) |
Perfect frequency radio rotary joint for antenna
Low Torque Seals
Compact Design
NPT / BSPT Connection Options
Lightweight Construction
Corrosion Resistant
Low Heat Generation
Increased Seal Life Performance
Customized options
ByTune's Advantages:
Quality guaranteed---1 year
Prompt delivery---1~2 week
Affordable price---Most competitive among industry
Superior service---response within 24 hours considering time difference
Effective shipment---DHL, UPS, or FedEx
Certification Approved---ISO,SGS,CE,FCC,ROHS
