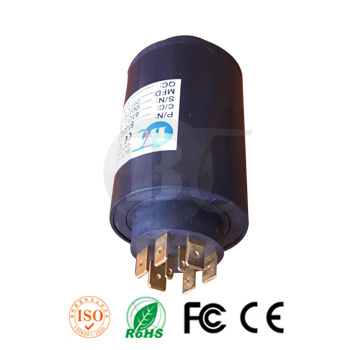

Perfect Slip Ring at Od 45mm with 6/20A, 2/7A

Name: Perfect Slip Ring at Od 45mm with 6/20A, 2/7A
Brand: all-electronics-online.com
SKU: 818482175
Availability: InStock
Rating: 4.7 (113 reviews)

Price:	US $ 180/Piece
Min Order:	3/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BTC-45-8.
Contacting Material:	Gold to Gold
Housing Material:	Plastic or Metal
Connector Way:	Metal Pins
Current &Voltage:	20A&380V Per Ring
Dielectric Strength:	1000V
Working Speed:	350rpm
Protection:	IP54

Product Description

High current compact design connector BTH045-8
Connector also called Slip ring,rotary electrical interfaces, rotating electrical connectors, collectors, swivels, or electrical rotary joints, They can be used on any rotating object to transfer power, control circuits, or analog or digital signals.

High current compact design connector
BTC045-6
6 circuits 20A
Compact design(OD45mm, Lenght 64mm)
Metal pin connecting
Simple installation
Reliable contacting
Long life span
Parameters:
Mechanical :

Working speed	350rpm
Operating temperature	-40ºC~ +100ºC
Contact material	Precious metal
Bearing	Steel ball bearing
IP Grade	IP 54

Electrical:

Circuit	6 & 8
Current	7A, 20A
Voltage	≤240V
Dielectric strength	≥500V@50Hz between each circuit
Insulation resistance	500MΩ@ 500VDC
Electric noise	≤7mΩ
Connector	Terminal Pins

Current & Critical dimension

Model	Rings	Current		OD×Length
Model	Rings	7A	20A	OD×Length
BTC045-6	6		6	Φ45mm×64.5mm
BTC045-8	8	2	6	Φ45mm×64.5mm

Benefit of ByTune's High current compact design connector

Prompt delivery :1 week
Quality guaranteed : 1 year free replacement if NG happens under proper use
Superior after -service: Email response within 24 hours
Affordable price: lowest price on the same product among all competitors
Flexible solution: if no standard works ,customizaion

ByTune electronics Co., Ltd, since 1998, is a government supporting, hi-tech, private enterprise, with more than 200 employees, 20, 000 square feet factory and 2, 500 square feet rd & sales office. ByTune is focused in developing, designing, manufacturing slip rings nearly 20 years, we supply wide range slip rings and provide360° Rotary solutions. Besides supplying standard through hole slip rings, capsule slip rings, separate slip rings, pan cake slip rings, hydraulic slip rings, pneumatic slip rings, coax rotary joints, fiber optic slip ring etc, we have an expertized engineering team of more than 50 persons, we provide full range of customized slip rings at prompt delivery. We customize slip rings as per customers request in different applications such as agriculture machine slip ring, crane slip ring, antenna slip rings, wind turbine slip rings, auto-wrap machine slip rings...

ByTune electronics is equipped with the machines of CNC ( 2, 3, 4 and 5 axis), vertical machine tool integrating turning with milling, auto-drilling machine, precise milling machine, numerical control punch press, grinding machine, and so on… ...With advanced machines, we could do all of the processions in one-stop: CNC lathe, milling, drilling, grinding, punching, bending, casting, forging, stamping, etc … ByTune supplies quality & precise machine parts at prompt delivery.

At www.btslipring.COM, you could get high quality slip rings and machine parts at an affordable price and with superior support by contacting sales@btslipring. COM.

ByTune is ISO9001, CE, FCC, RoHS and military standard JGB9001A certificated!
