| Prod Model: |
BTH1256 |
| Working Speed: |
500rpm |
| Protection: |
IP54 |
| Contacting Material: |
Gold or Silver |
| Insulation: |
1000 Mohm |
| Electrical Noise: |
7mohm |
| Wire Length: |
300mm |
| Circuits: |
2 ~100 |
| Temperature: |
-40c~ +100c |
Product Description

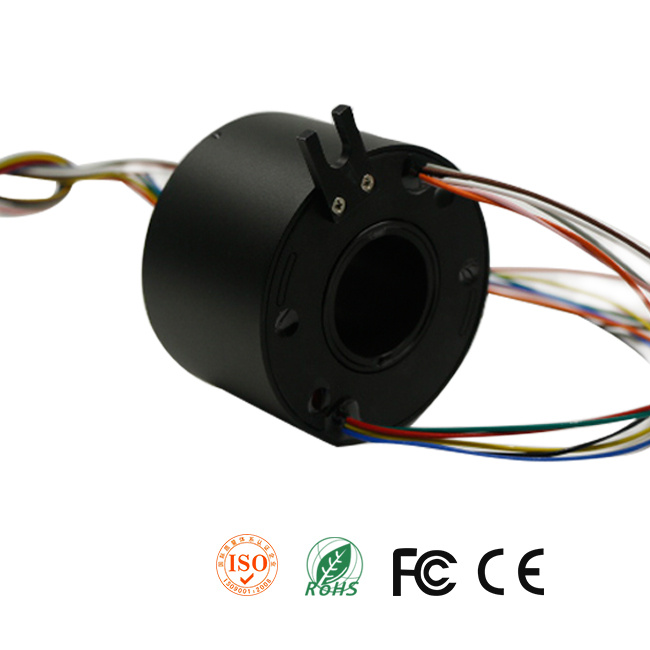

Perfect Through Hole Slip Rings with Inner Hole for Your Rotating System
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. Slip ring can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
We have full range of standard capsule slip ring and most of them are on the shelf.
Main features of Slip rings with flange for your simple installation from ISO factory
Outer diameter is 7.9mm to 54mm
Very compact design
1-125circuts,
gold to gold contact,
long life time,
low electronic noise,
low torque,
different signal compatible,
high working speed and workable in rough environment,
the main applications are CCTV, test instrument, robotics, ROV, UAV, marine equipments and so on.
Slip rings with flange for your simple installation from ISO factory
Parameters:Slip rings with flange for your simple installation from ISO factory
Mechanical :
| Working speed | 350rpm |
| Operating temperature | -40ºC~ +100ºC |
| Contact material | Gold to Gold |
| Bearing | Steel ball bearing |
| IP Grade | IP 54 |
Electrical:
| Circuit | 2-36 |
| Current | 2A or combined rings to be higher current |
| Voltage | ≤240V |
| Dielectric strength | ≥500V@50Hz between each circuit |
| Insulation resistance | 500MΩ@ 500VDC |
| Electric noise | ≤7mΩ |
| Lead wire size | 28AWG, UL ,color Teflon, silver or tin plated |
| Lead wire length | 200mm |
Dimension:
| Type | Standard Rings | "L" |
| BTC022-6 | 6 | 19mm |
| BTC022-12 | 12 | 28mm |
| BTC022-15 | 15 | 29.5mm |
| BTC022-18 | 18 | 33.4mm |
| BTC022-24 | 24 | 41.2mm |
| BTC022-24 | 36 | 56.8mm |
Features:Slip rings with flange for your simple installation from ISO factory
Low noise
Wear-resisting (gold contacting)
Good impact resistance
Signal and current compatible
Workable in hostile environment(-40ºC~ +100ºC)
Compact design
Alternatives :Slip rings with flange for your simple installation from ISO factory
Circuits
Loading of each circuit
Wire length
Working speed
Working temperature
Housing material (metal or plastic)
Typical Applications :Slip rings with flange for your simple installation from ISO factory
CCTV Camera
Robotic
Medical equipment
Exhibition equipment
Total station
Test equipment
Revolve door
Advantages of slip ring manufacturer---ByTune:
Affordable price
Quality guaranteed
Military standard
Response within 24 hours
Prompt delivery
Reliable package & shipment
Flexible & quick customization
ByTune's Advantages:
Quality guaranteed---1 year
Prompt delivery---1~2 week
Affordable price---Most competitive among industry
Superior service---response within 24 hours considering time difference
Effective shipment---DHL, UPS, or FedEx
Certification Approved---ISO,CE,FCC,ROHS
