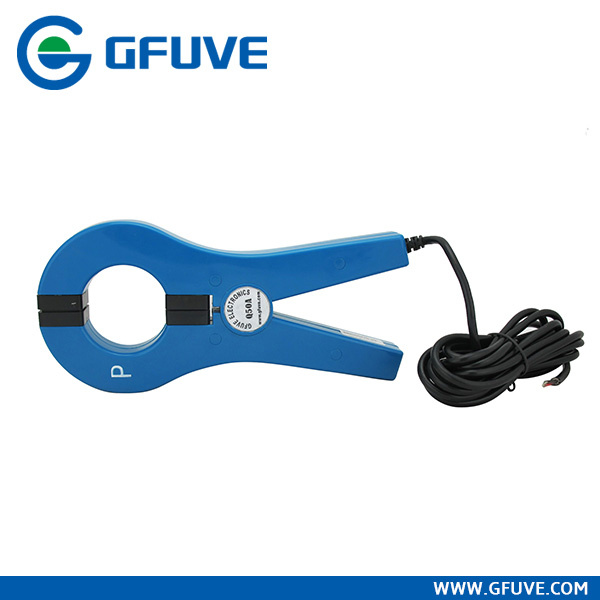

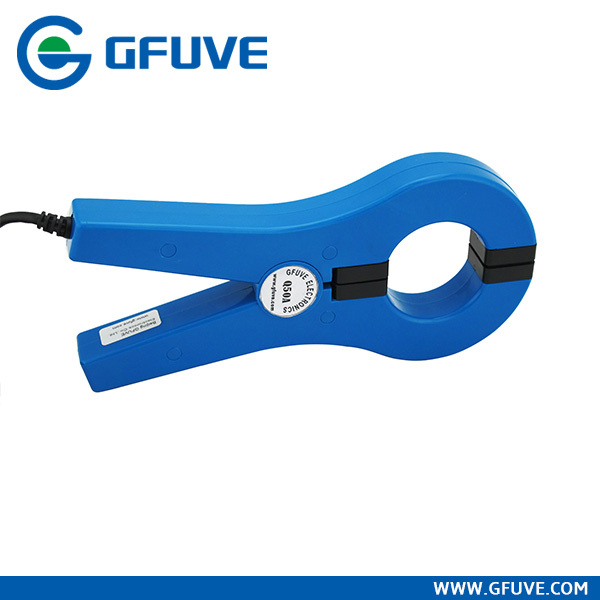

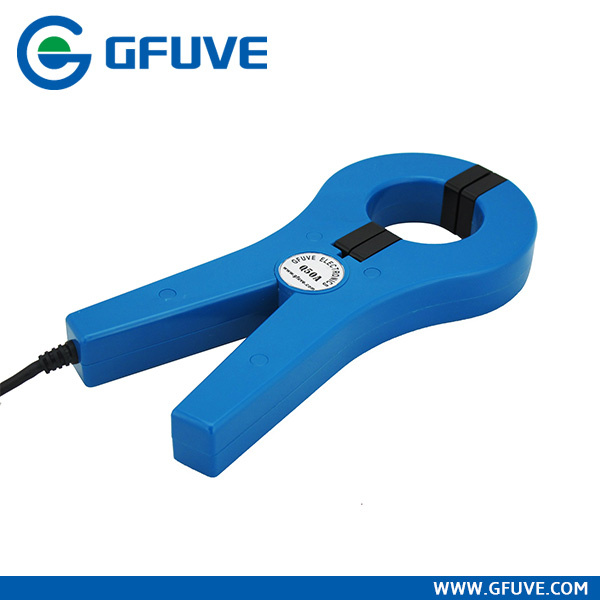

Permalloy Core Current Transformer Coil

Name: Permalloy Core Current Transformer Coil
Brand: all-electronics-online.com
SKU: 672684761
Availability: InStock
Rating: 5 (146 reviews)

Price:	US $ 100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q50A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Q50b:	High Quality Clamp-on Current Transformer
Operating Temperature:	-20~55
Measuring Current Range:	0~800A
Dimensions:	94mm210mm22mm
Weight:	420g

Product Description

Characteristic and application: High Quality Clamp-on Current Transformer suitable for 800 A cable online measurement...

But holding wire diameter: Φ 50mm
Dimension: 94mm× 210mm× 22mm (View outline drawing)
With load capacity: Ma output≤ 4Ω , 1A output 0.1Ω , 5A output 2.5VA
Installation: Clamp type
Output mode: Lead outp 94mm× 210mm× 22mm

Primary current	Secondary current	Precision
10A	2.5mA	Class 0.1%, 0.2%, 0.5%
10A	5mA	Class 0.1%, 0.2%, 0.5%
20A	5mA	Class 0.1%, 0.2%, 0.5%
100A	20mA	Class 0.1%, 0.2%, 0.5%
100A	40mA	Class 0.1%, 0.2%, 0.5%
100A	50mA	Class 0.1%, 0.2%, 0.5%
100A	100mA	Class 0.1%, 0.2%, 0.5%
200A	80mA	Class 0.1%, 0.2%, 0.5%
200A	100mA	Class 0.1%, 0.2%, 0.5%
200A	200mA	Class 0.1%, 0.2%, 0.5%
300A	120mA	Class 0.1%, 0.2%, 0.5%
300A	150mA	Class 0.1%, 0.2%, 0.5%
300A	200mA	Class 0.1%, 0.2%, 0.5%
300A	300mA	Class 0.1%, 0.2%, 0.5%
500A	100mA	Class 0.1%, 0.2%, 0.5%
500A	200mA	Class 0.1%, 0.2%, 0.5%
500A	250mA	Class 0.1%, 0.2%, 0.5%
500A	500mA	Class 0.1%, 0.2%, 0.5%
600A	120mA	Class 0.1%, 0.2%, 0.5%
600A	200mA	Class 0.1%, 0.2%, 0.5%
600A	300mA	Class 0.1%, 0.2%, 0.5%
600A	400mA	Class 0.1%, 0.2%, 0.5%
600A	500mA	Class 0.1%, 0.2%, 0.5%
600A	600mA	Class 0.1%, 0.2%, 0.5%

Primary current	Secondary current	Precision
700A	200mA	Class 0.1%, 0.2%, 0.5%
700A	350mA	Class 0.1%, 0.2%, 0.5%
700A	700mA	Class 0.1%, 0.2%, 0.5%
700A	700mA	Class 0.1%, 0.2%, 0.5%
800A	160mA	Class 0.1%, 0.2%, 0.5%
800A	200mA	Class 0.1%, 0.2%, 0.5%
800A	250mA	Class 0.1%, 0.2%, 0.5%
800A	320mA	Class 0.1%, 0.2%, 0.5%
800A	400mA	Class 0.1%, 0.2%, 0.5%
800A	500mA	Class 0.1%, 0.2%, 0.5%
800A	800mA	Class 0.1%, 0.2%, 0.5%
500A ~ 800A	1A	Class 0.2%, 0.5%
600A ~ 800A	1A	Class 0.1%, 0.2%, 0.5%
200A	5A	Class 1%
300A ~ 500A	5A	Class 0.5%
500A ~ 800A	5A	Class 0.2%, 0.5%
