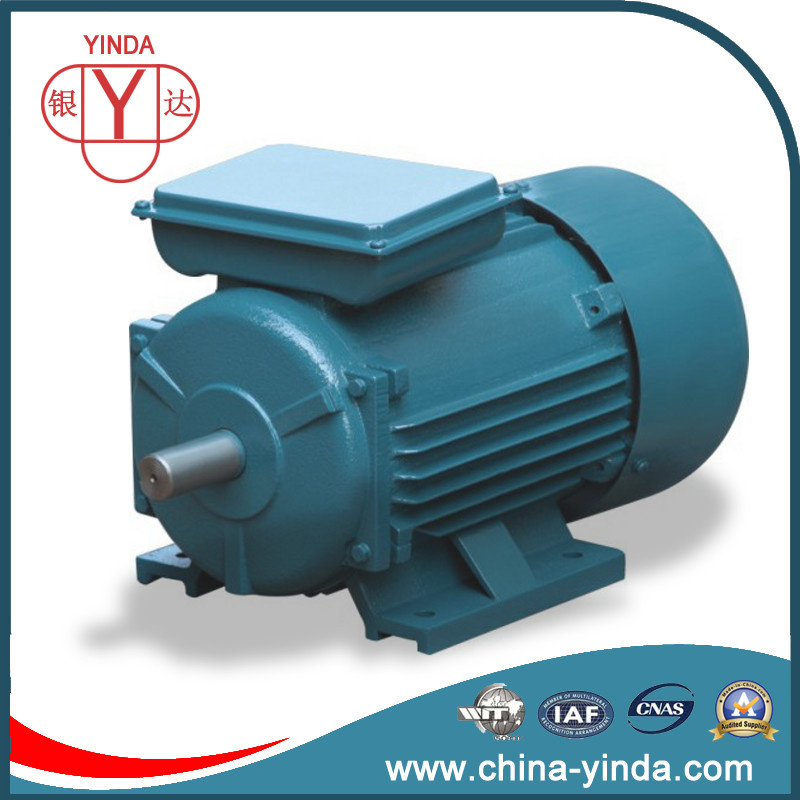

Permanent Capacitor Single Phase Fan Motor

Name: Permanent Capacitor Single Phase Fan Motor
Brand: all-electronics-online.com
SKU: 702755402
Availability: InStock
Rating: 4.9 (89 reviews)

Price:	US $ 55-58/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	25/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YL/YC/YCL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power:	3/4-10HP
Volage:	100/110/120/230/240V
Frequency:	50/ 60Hz
Frame Material:	Aluminum / Cast Iron
Mounting Position:	B3/B5/B35/B14/B34
Protection Class:	IP54
Insulation Grade:	F
Cooling Method:	IC411
Winding Protections:	PTC, PT100 and Kty84-130 as Option
Warranty:	12 Months
Application:	Fan
Operating Speed:	Constant Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Species:	Permanent Capacitor
Starting Mode:	Capacitor Starting
Certification:	CE

Product Description

Single Phase Fan Motor
Permanent Capacitor & Cap start- Cap Run

Standard features:
Cast iron frame: 80-132
Mounting type: B3
Power: 0.55kw(0.75HP)-5.5kw(7.5HP)
Squirrel cage rotor/Aluminum die cast
Start & run capacitor
Duty Type: S1
Protection grade: IP54
Insulation class: F
Voltage: 220V

Optical features:
Aluminum frame
Mounting type: B5/B35/B14
Special voltages
Frequency: 60Hz

Applications:
Fans, pumps, pulleys, cranes, continuous conveyors, grinders etc.

Technical Data

Type	Power	Horsepower	Voltage	Current	Frequency	Speed	Efficiency	Power factor	lst/le	Tst/Te	Tm/Te	Nosie
	Power	Horsepower	Voltage	Current	Frequency	Speed	Efficiency	Power factor				Nosie
	Kw	HP	V	A	Hz	r/min	%	CosΦ				Lw dB(A)
	Kw	HP	V	A	Hz	r/min	%	CosΦ				Lw dB(A)
YL801-2	0.75	1	220	5.94	50	2800	72	0.92	29	1.8	1.7	75
YL802-2	1.1	1.5	220	7.74	50	2800	75	0.92	40	1.8	1.7	75
YL90S-2	1.5	2	220	9.4	50	2840	76	0.95	55	1.7	1.7	78
YL90L-2	2.2	3	220	13.7	50	2840	77	0.95	80	1.7	1.7	78
YL100L-2	3	4	220	18.2	50	2840	79	0.95	110	1.7	1.7	83
YL112M-2	3.7	5	220	22.6	50	2840	81	0.95	135	1.8	1.7	84
YL132S-2	4	5.5	220	24.8	50	2880	82	0.95	148.5	1.8	1.7	84
YL132M-2	5.5	7.5	220	34.5	50	2880	82	0.95	208	1.7	1.7	84
YL801-4	0.55	0.75	220	4	50	1400	68	0.92	21	1.7	1.7	70
YL802-4	0.75	1	220	5.2	50	1400	71	0.92	32	1.7	1.7	70
YL90S-4	1.1	1.5	220	7.2	50	1400	73	0.95	40	1.7	1.7	73
YL90L-4	1.5	2	220	9.6	50	1400	75	0.95	55	1.7	1.7	73
YL100L1-4	2.2	3	220	13.9	50	1400	76	0.95	80	1.7	1.7	78
YL100L2-4	3	4	220	18.6	50	1400	77	0.95	110	1.7	1.7	78
YL112M-4	3.7	5	220	22.8	50	1430	78	0.95	138	1.7	1.7	78
YL132S-4	4	5.5	220	25.2	50	1440	79	0.95	150	1.7	1.7	80
YL132M-4	5.5	7.5	220	35	50	1440	79	0.95	210	1.7	1.7	80

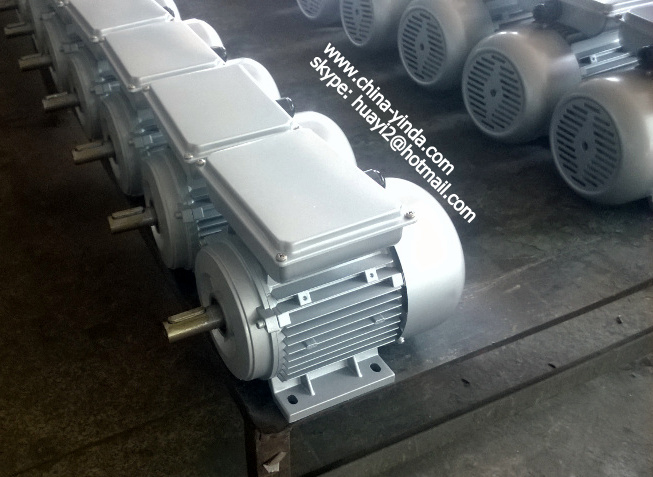

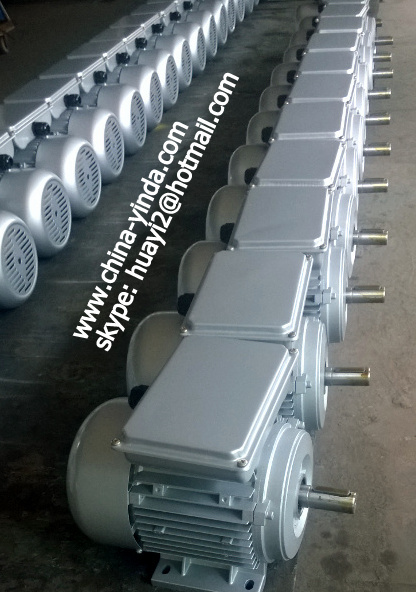

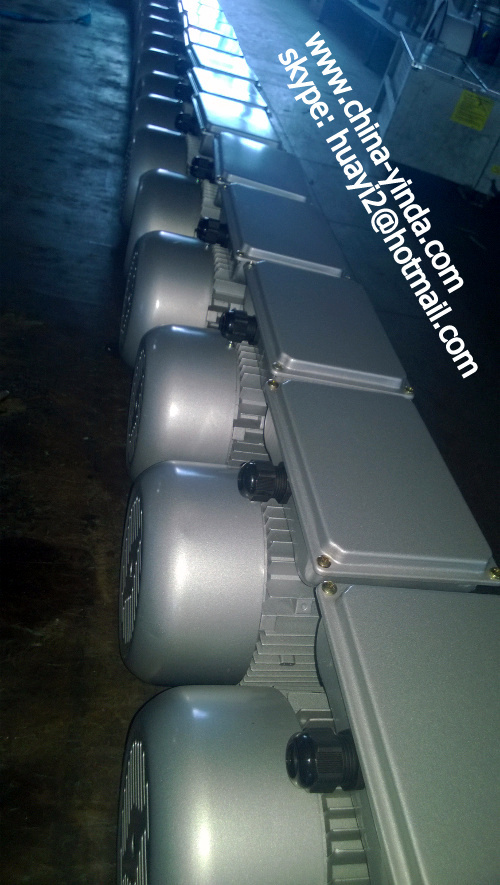

Photos:

Yinda located in Wenling city of Zhejiang provice, which is 15 minutes driving from Wenling Train Station.

Establised in 1988 and renamed in 2003, Zhejiang Yinda Machine Electricity Co., Ltd. Engaged in developing reliable motors, as well as welding machine and scrao wire stripping machines to satisfying the market.

Our products:

1. Electric Motors:

Single-phase AC motor, (including Capacitor start & run motor, capacitor run motor, capacitor start motor, resistance start motor) ML, MC, MY, YL, YC, YY, YU, YCL

Three-phase Electric motor, IE3, IE2

Three-Phase double speed motor, YD series

Electromagnetic Brake AC Motor YEJ/Y2EJ series

Change Speed Frequency Vataible Inverter Duty Motor YVP/YVF2 series

Custom motors are available.

2. Kinds of recycling equipment such as Scrap Wire stripping machine & Motor reccycling machine

3. Welding Machines:

MMA inverter Welding, ZX7 series

TIG Welding

MIG Welding

BX1 series AC Arc Welding

Bx6 Series AC Arc Welding

Bx6 series stainless body welding

Bx series wooden leg welding
