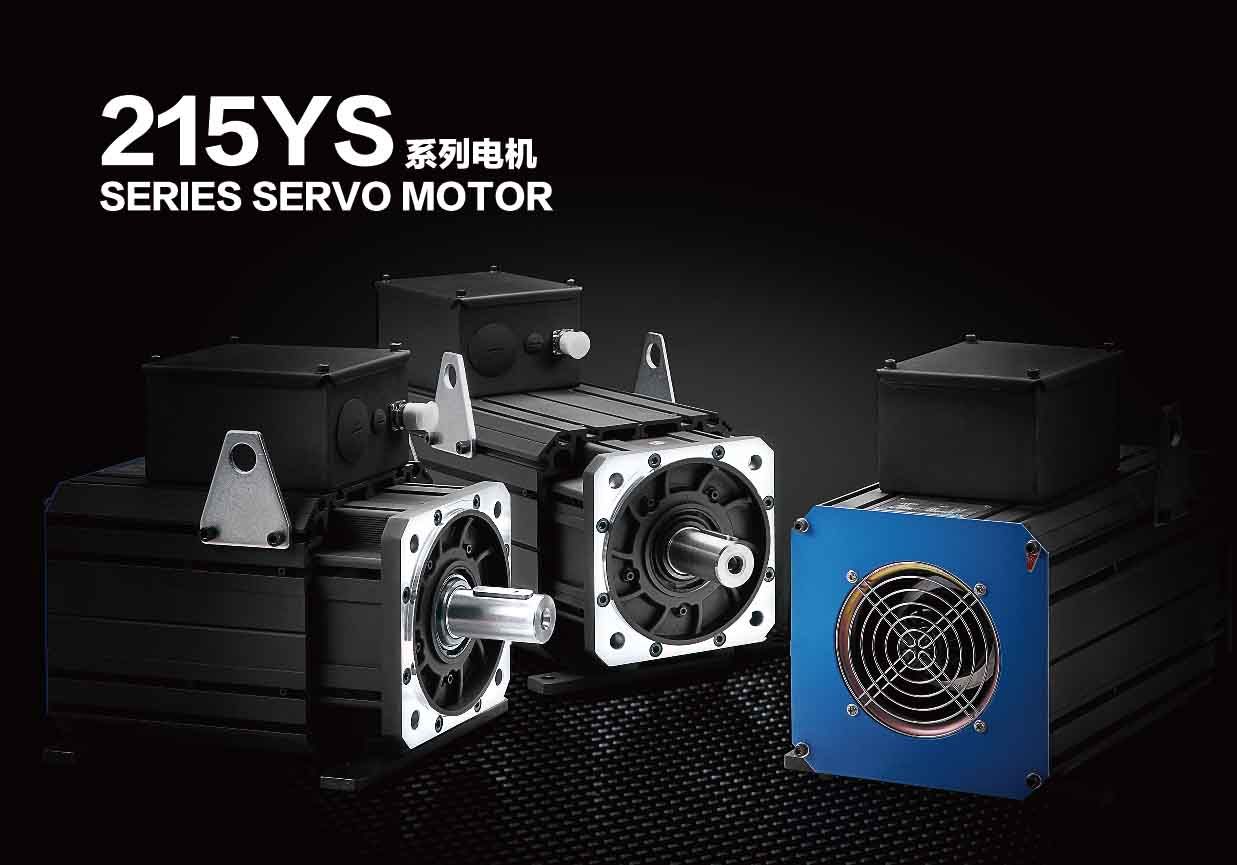

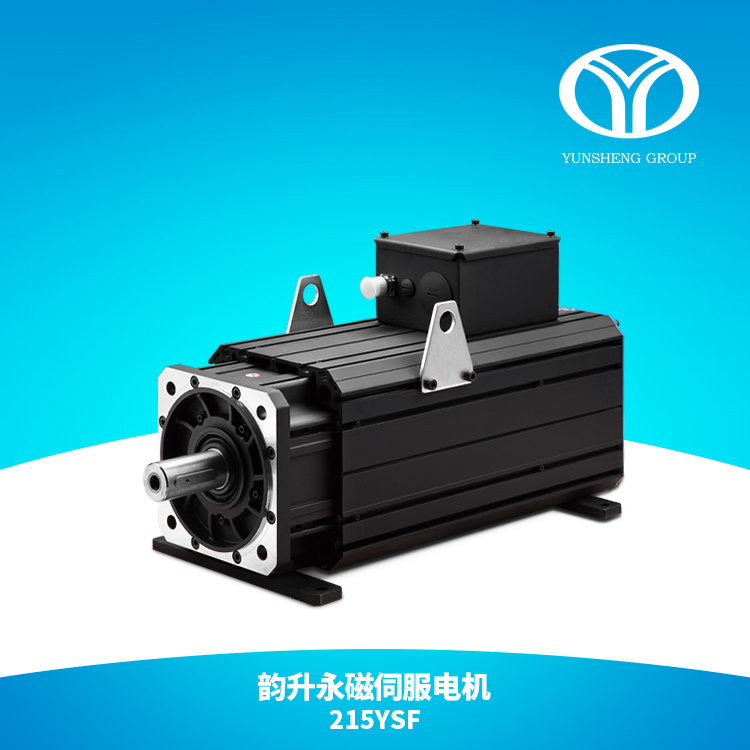

Permanent Magnet AC Servo Motor (215ysa15f, 215ysa17f, 215ysa20f)

Name: Permanent Magnet AC Servo Motor (215ysa15f, 215ysa17f, 215ysa20f)
Brand: all-electronics-online.com
SKU: 751315745
Availability: InStock
Rating: 4.9 (148 reviews)

Price:	US $ 200/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	215YSA15F, 215YSA17F, 215YSA20F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IEC:	Ie4 Super Primium Efficiency Motor
Motor:	Energy Saving Motors
Servo Motor:	Servo Control Motors
Number Of Stator:	Three-Phase
Function:	Control
Certification:	Ce
Brand:	Yunsheng

Product Description

Permanent magnet AC servo motors:

Motor Identifier: 215YSA15F
Nominal torque T100: 55 N.M
Nominal speed nN: 1500 RPM
Nominal power Pn: 8.6 KW
Maximum speed Wmax: 1950 RPM
Rotor inertia Jm: 7.4/7.16 kg m2 10-3
Motor insulation: F grade
Winding insulation: H grade
Cooling: Air cooling
Waterproof: IP54
Threshold of built-in PTC: 130 ºC
Pole number: PN=8
Winding connection: Y type
Torque constant Kt: 3.31 Nm/A
Winding resistance Rw: 1.018 Ohm
Winding inductance Lw: 13.387 mH
Nominal voltage Vn: 380 Vrms
Back Electromotive Force @ 1000RPM V1000: 199 Vrms
Nominal current In: 16.6 Arms
Working frequency Fn: 100 Hz

Motor Identifier: 215YSA17F
Nominal torque T100: 57 N.M
Nominal speed nN: 1700 RPM
Nominal power Pn: 10 KW
Maximum speed Wmax: 2150 RPM
Rotor inertia Jm: 7.4/7.16 kg m2 10-3
Motor insulation: F grade
Winding insulation: H grade
Cooling: Air cooling
Waterproof: IP54
Threshold of built-in PTC: 130 ºC
Pole number: PN=8
Winding connection: Y type
Torque constant Kt: 2.81 Nm/A
Winding resistance Rw: 0.673 Ohm
Winding inductance Lw: 8.584 mH
Nominal voltage Vn: 380 Vrms
Back Electromotive Force @ 1000RPM V1000: 171 Vrms
Nominal current In: 20.4 Arms
Working frequency Fn: 113 Hz

Motor Identifier: 215YSA20F
Nominal torque T100: 58 N.M
Nominal speed nN: 2000 RPM
Nominal power Pn: 12 KW
Maximum speed Wmax: 2450 RPM
Rotor inertia Jm: 7.4/7.16 kg m2 10-3
Motor insulation: F grade
Winding insulation: H grade
Cooling: Air cooling
Waterproof: IP54
Threshold of built-in PTC: 130 ºC
Pole number: PN=8
Winding connection: Y type
Torque constant Kt: 2.6 Nm/A
Winding resistance Rw: 0.566 Ohm
Winding inductance Lw: 7.305 mH
Nominal voltage Vn: 380 Vrms
Back Electromotive Force @ 1000RPM V1000: 156 Vrms
Nominal current In: 24.3 Arms
Working frequency Fn: 133 Hz

Motor suspended in horizontal position in free still air, ambient temperature of 20 ºC
Motor flanged connection in horizontal position, ambient temperature of 20 ºC
With interference coupling and infinite load inertia applied in the middle of the shaft extension
Standard type
Typical value at tolerance of ±10%

OEM and ODM services available

Ningbo Yunsheng Co., Ltd, with its more than ten subsidiary enterprises, such as:

Ningbo Yunsheng High-tech Magnetics Co., Ltd.,

Ningbo Yunsheng Motor Co., Ltd.,

Ningbo Yunsheng Servo Control Division,

And Nikko Electric Industry Co., Ltd., etc.,

Is a state key high-tech enterprise listed among the top 100 of China's Electronic and Information Technology Companies and designated as a home for post-doctorate research station. It has been listed (IPO) in Shanghai Stock Exchange since October 30, 2000.

The Servo Motor Division, inheriting the corporate culture gene from its holding company Ningbo Yunsheng Co., Ltd., is devoted to supply various servo motors in the field of equipment application on a basis of research in new materials, new energy and mechanical-electronic integration industry. And commits to be growing up together with its valuable customers The company established a professional institute on the R&D of the servo technology by an excellent team comprising about thirty high-end research staff of which have the degrees of master or doctor, which ensures the leading position in technology of the company With the high-quality rare earth magnets produced by Ningbo Yunsheng High-Tech Magnetics Co., Ltd., assembled in the rotors and other key components with world-class quality, the company always pursuant to assure the reliability and consistency of the product effectively. We are committed ourselves to provide every single high-quality motor, with equipped by the imported top-rank servo motor manufacturing facility, and the implementation of a strict quality control system.
