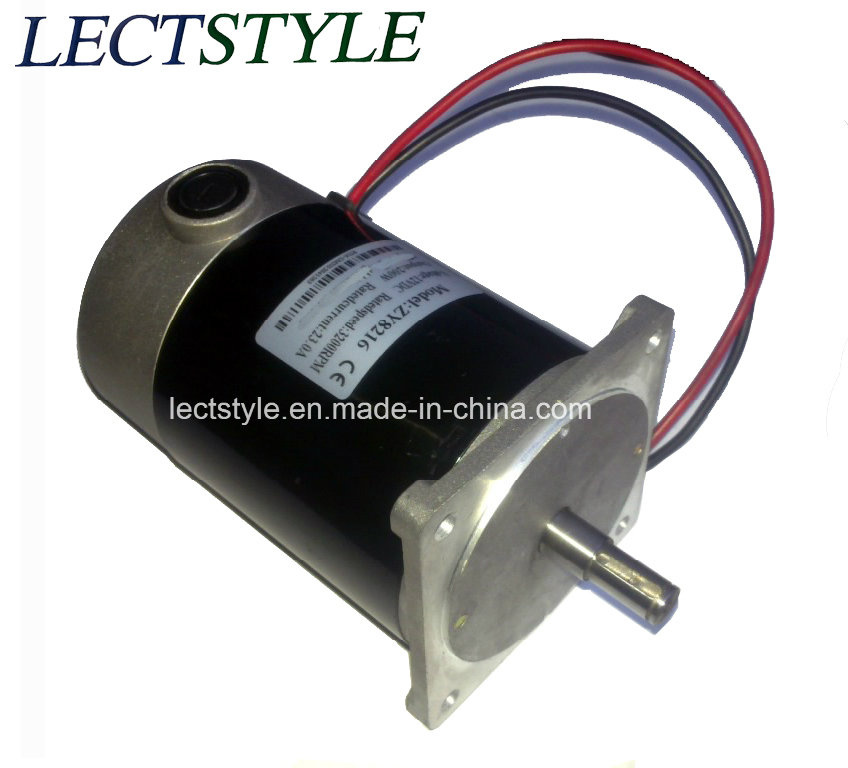

Permanent Magnet DC Motor for Aquatic Mower and Power Tool

Name: Permanent Magnet DC Motor for Aquatic Mower and Power Tool
Brand: all-electronics-online.com
SKU: 753453295
Availability: InStock
Rating: 5 (145 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZY8216
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Rated Voltage:	24V
Rated Power:	60-500W
Reduction Ratio:	16.5:1
Motor Material:	Alloy Steel
Gearbox Material:	Aluminum
No Lad Speed:	1250-3600rpm
Motor Diameter:	83mm
Motor Length:	It Is up to The Actual Condition
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brush
Brand:	Lectstyle

Product Description

Permanent Magnetic DC gear motor, which has such features: low noise, low vibration and long-using time and so on, is mainly used for electric hand-pushing golf trolley, elderly scooter, Grass Trimmer, cleaning machine, remote control golf trolley and other electric equipment.

Our business range is supplied to these products as below:
1.Planetary reducer, Motor, and transmission parts etc, these are fabricated from our motor factory.
2. Roller chain, conveyor chain, flat top chain, silent chain, drag chain etc, these are supplied from our chain drive factory.

ZY8216GZ	No load		Loading
Model	Current(A)	Speed (rpm)	Torque(N.M)	Speed (rpm)	Power (W)	Current(A)	Drive ratio
60W24V	0.5	1850	0.46	1250	60	3.8
80W24V	0.8	2500	0.42	1800	80	5.1
120W24V	1.5	3100	0.42	2750	120	7.1
200W24V	1.8	3500	0.64	3000	200	11.1
300W24V	2	3800	0.89	3200	300	16.4
400W24V	2	4200	1.06	3600	400	21.9
500W24V	2.5	4200	1.33	3600	500	26.7

HANGZHOU LECTSTYLE TRADE CO., LTD is responsible for exporting the above products, and we also import some important products from oversea markets.
Our company has got the right of import and export from the Government department.
It is necessary to get your specific requirement when contacting us, for example of motor, voltage, power, speed, output torque, connecting type and size of shaft, outside structure drawing or relevant pictures etc. And then we will give the accurate offers.
Therefore, hope to get your feedback soon.

1 Our DC Motor

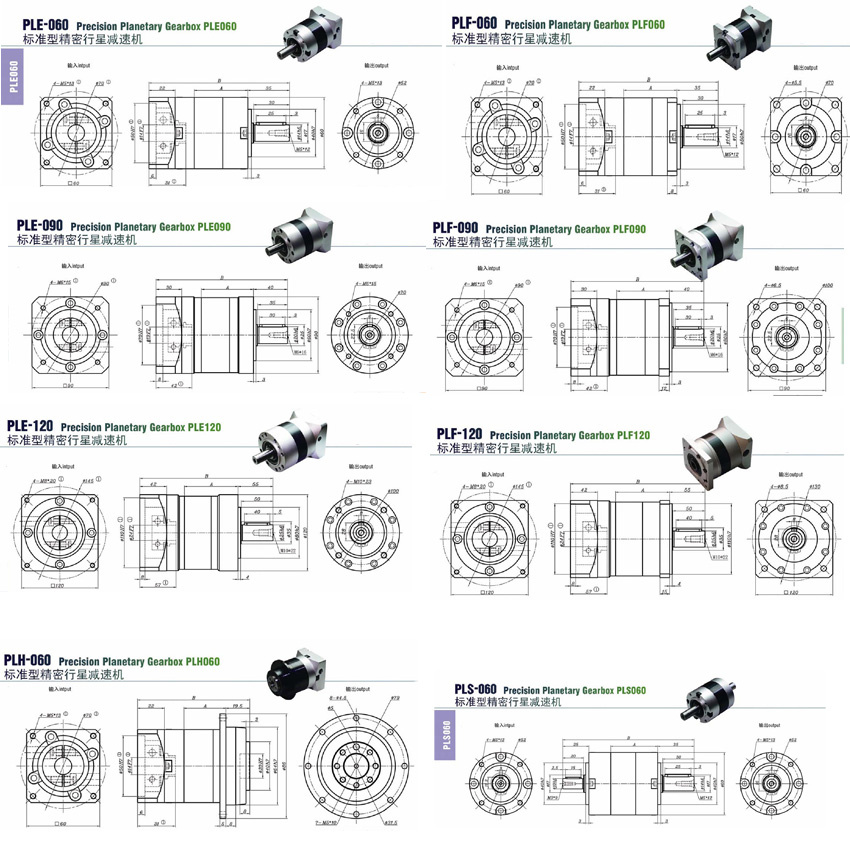

2 Our Planetary reducer and gearbox

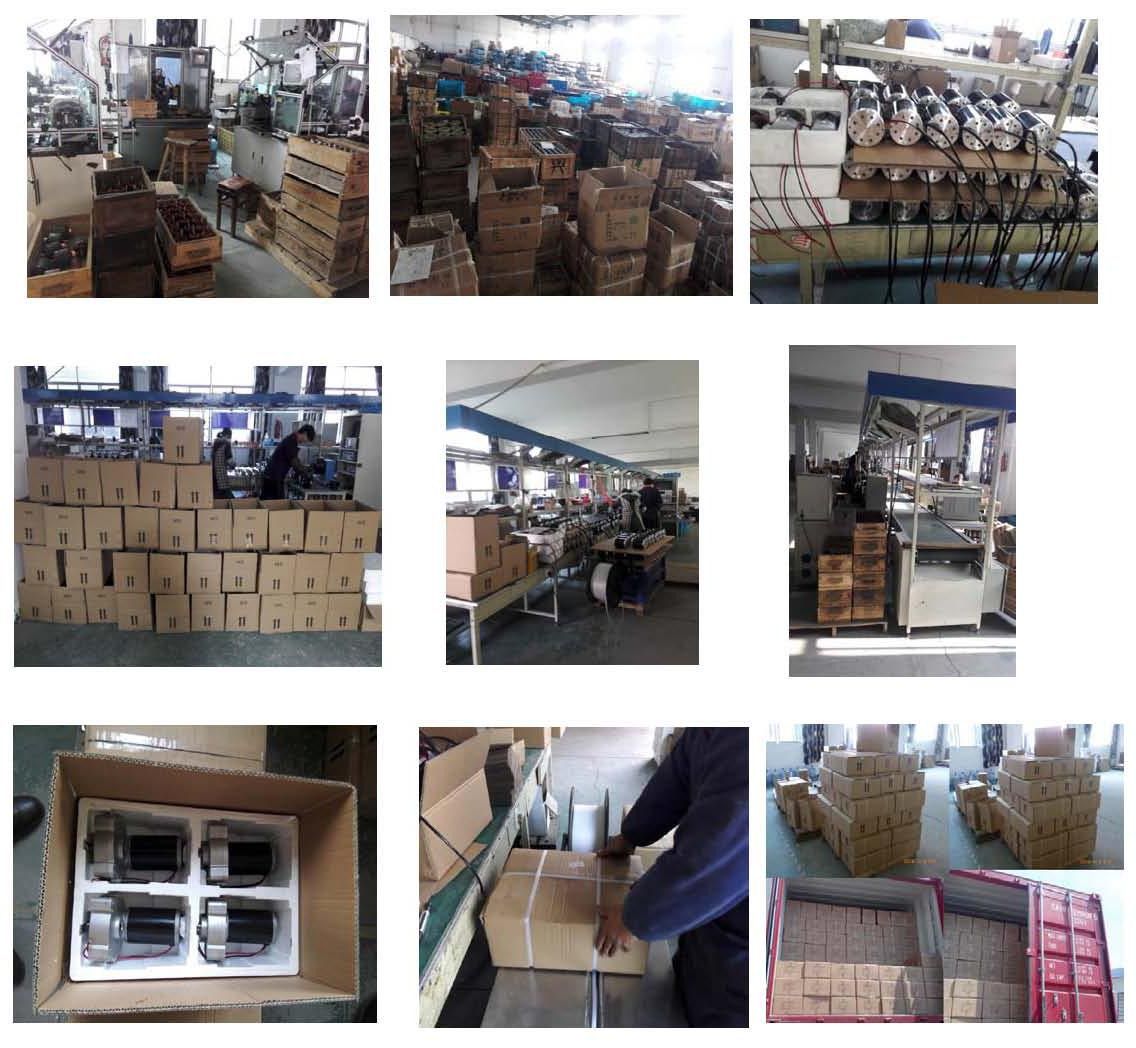

3 Our package process

About us

Our HANGZHOU LECTSTYLE TRADE Co., Ltd is one reliable OEM supplier, we have own chain factory, motor factory and export trade company to support our job, some spare parts are from our long cooperated suppliers, these quality parts are repeatedly proven and tested in-factory, so donot worry about our capacity.

Our main supplied products as below:

1. DC Motors, windshield wiper motor, wheelchair motor, dump truck tarp motor, wind turbine generator and planetary reducer

2. Transmission parts (roller chain, agricultural roller chain, conveyor chain, silent chain, sprocket, spur gear, transmission gear, gear shaft etc).

Our company is qualified with integrally mechatronic abilities of design, manufacture and testing. In these years of production process, throught constant practice, experiment and research, we have collected a large amount of data and accumulated rich experience. Through these, our plant created a various of advanced production process documents, quality standard and inspection process documents, which guarantee the product's production process of each contact completely in according to one standard control.

Our LECTSTYLE always adhere to the "Ensuring quality, Persisting improvement, Pursuiting customer satisfaction" principle, to provide the best products for the domestic and foreign clients with the pre-sales and after-sales service.

In the pages, you will find some samples of the thousands of parts, products, and components that LECTSTYLE supervises the fabrication in our own and cooperated factory. It's really best to contact us directly, so the LECTSTYLE can address your project and structure all elements of a complete end to end solution that can get your job done right.
