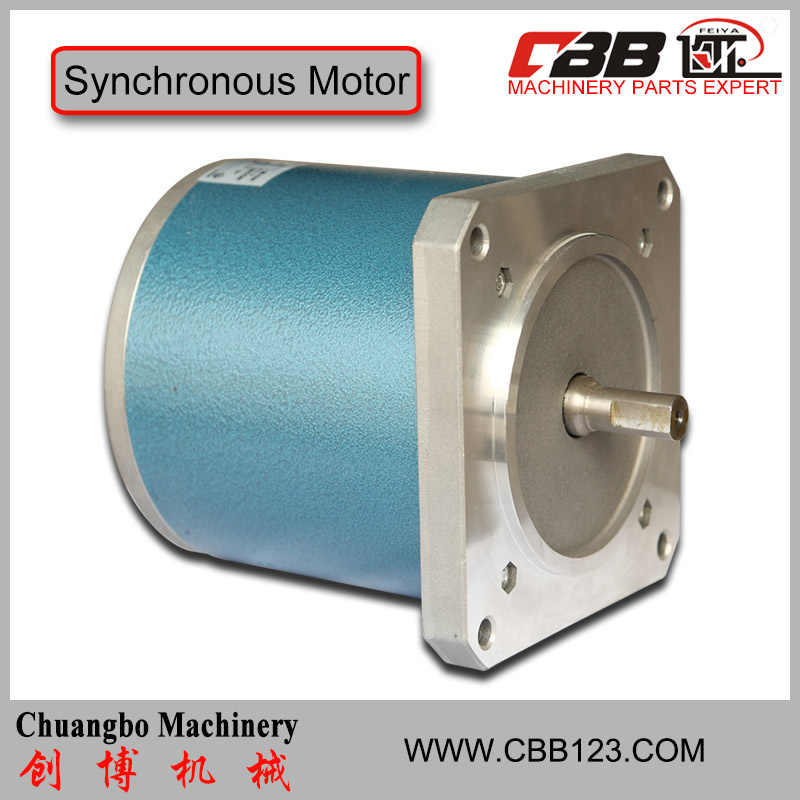

Permanent Magnetic Synchronous Motor (TDY Series) for EPC

Name: Permanent Magnetic Synchronous Motor (TDY Series) for EPC
Brand: all-electronics-online.com
SKU: 670470752
Availability: InStock
Rating: 4.5 (57 reviews)

Price:	US $ 100-200/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TDY Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	220V
Frequency:	50Hz
Speed:	60/115rpm
Model:	50tdy-150tdy
Application:	Industrial
Operating Speed:	Low Speed
Operation Mode:	Electric Motor
Magnetic Structure:	Permanent Magnet
Structure:	Rotating Pole Type (',Armature Fixed)
Number Of Poles:	Single-Phase
Ventilation:	Closed
Brand:	Cbb

Product Description

Permanent magnet synchronous motor is a new synchornous motor without reducing gear device, it runs at low speed through motor. It can be used to simplify the transmission structure, and reduce the noise caused bygear reduction structure. This is designed as closed-end structure. The characteristics are following: High reliability, long use life, small vibration, low noise, stable running speed, big start-up torque, start-up current without concussion, little current change when load is changing, self-locking capability, instant start, reverse and stop, and so on. This product can be used as drive component in low speed transmission system. On the occasions that require low speed direct drive, this product can be applied. If it gets through inverter power, then the operator can change motor running speed to meet the different requirements.

Type	Voltage (V)	Torque (N. m)	Power (w)	Output Shaft (mm)	Weight (kg)	Capacity (µ F/v)	Resistance (Ω /W)
55TDY4	220	0.27-0.38	16	6	0.7	0.47/400	1/8
70TDY4	220	1-1.2	24	8	1.6	0.8/400	1.5/16
90TDY4	220	2.3-2.8	80	12	3.2	2.7/400	680/50
110TDY4	220	4.0-6.0	110	12	6	4.0/400	450/100
130TDY4	220	8.5	145	16	9	6.0/400	360/100
150TDY4	220	1.2-1.4	200	16	12.5	8.0/400	260/150

Ruian Chuangbo Machinery Co., Ltd. It was founded in 1995, and is located in the coastal city of southen Zhengjiang_Ruian.
Our company is specializing in producing printing machinery accessories:

Printing Rollers: Aluminum guide roller, chrome steel roller, aluminum reculate pattern roller, rubber roller;

Flatulence Axes: Slip-style inflatable axis, slab-style inflatable inflatable shaft, inflatable-strip key shaft;

Fans: Centrifugal fan, axial-flow fan;

Torque Motor: Torque motor controller, manual tension controller, electrical ink pump;

Other Printing Accessories: Magnetic powder clutch, magnetic powder brake, pneumatic diaphragm pump, pneumatic diaphragm pump, permanent magnent motor etc.

Our company has powerful technical strength, advanced technology, introducing foreign advanced production equipment and detection means. Our products have passed the China National Mandatory Certification(referred to CCC certification), which is issued by China Quality Certification Center.
