| Prod Model: |
A9 |
| Battery: |
450mAh |
| Colors: |
Green, White, Red |
| Position: |
GPS+WiFi+Lbs Triple Positioning |
| Android & Ios System: |
Support |
| GSM Antenna: |
FPC Antenna |
| GPS Antenna: |
High Sensitive Ceramics Active Antenna |
| Real Time Positioning: |
Yes |
| G-Sensor: |
Support |
| Button: |
One Button(Power/Sos Button) |
| I/O Port: |
USB Charge |
Product Description
Functions:
1. Delicate appearance pendant.
2. GPS + WIFI + LBS multimode precise.
3. positioning, static dormancy save.
4. electricity design, real-time positioning, intelligent monitoring.

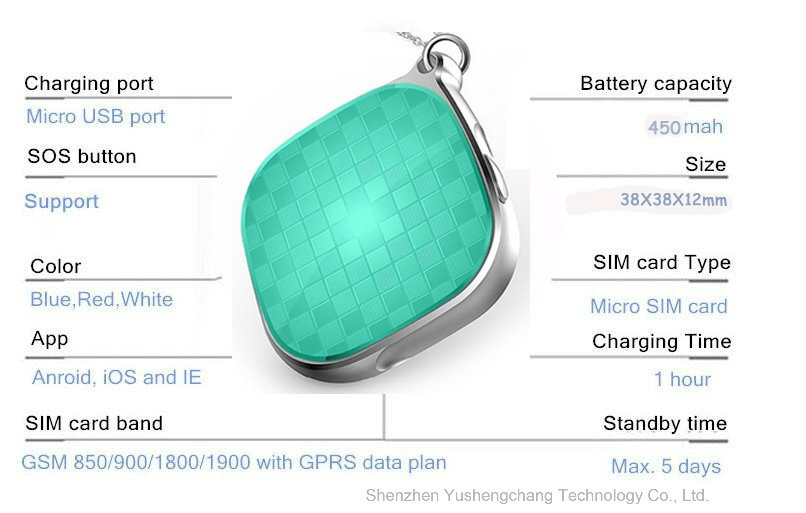

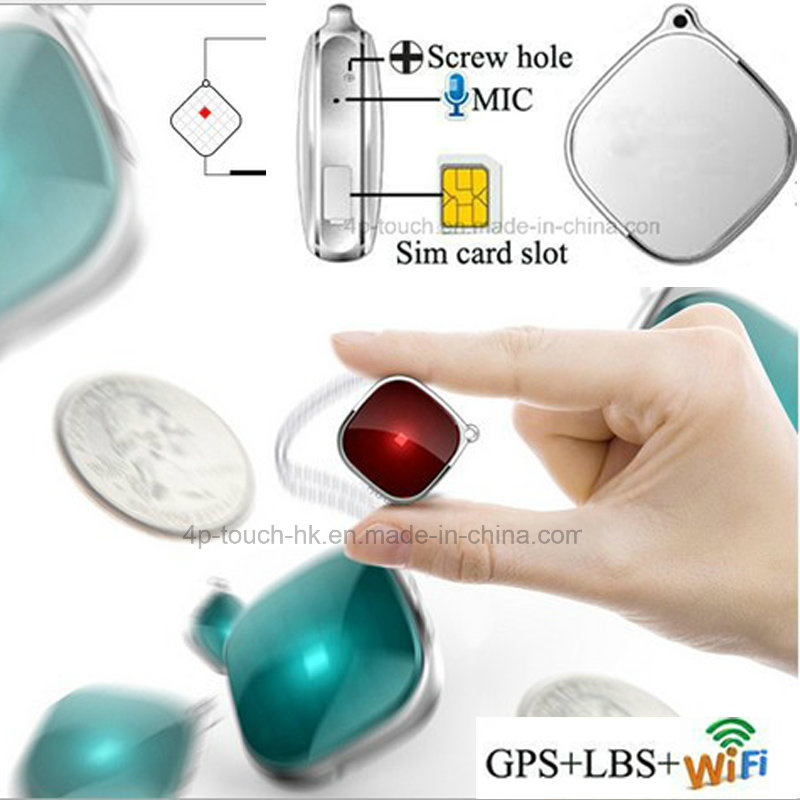

structure
parts | Category | Specification |
| ID design | delicacy and smart |
| Whole machine size | 38X38X12mm |
| color | green, white and red |
| button | one button(power/SOS button) |
| weight | 22g without package, 130g with package box |
| GPS antenna | High sensitive ceramics active antenna |
| GSM antenna | FPC antenna |
| Battery | 450mAh |
| SIM card slot | 1pc |
| G-sensor | Support |
| I/O port | USB charge |
Hardware
parts | CPU | MTK2503 |
| CPU chip | MTK3337 |
| GPRS | Class12 |
| GPS signal | L1,1575.42MHz C/A |
| GPS channel number | 22 channels |
| GPS chip receive | Tracking sensitivity:-165dBm,capture sensitivity:-148dBm |
| GPS location accuracy | 5~15M |
| LBS location accuracy | 100-1000M |
| Minimum standby current | less than 0.5 mA |
| Average standby current | less than 2.5 mA |
| Average working current | around 55mA |
| Working temperature | -20~70ºC |
| Working humidity | 5% to 95% non-congealable |
| Test and certification | can approval by 3C,CE&RoHs |
| GPS antenna | Built-in high sensitivity FPC antenna |
| GSM antenna | Built-in four frequency method of antenna |
| bluetooth | Without bluetooth |
| G-sensor | Support |
| MIC | Support |
software

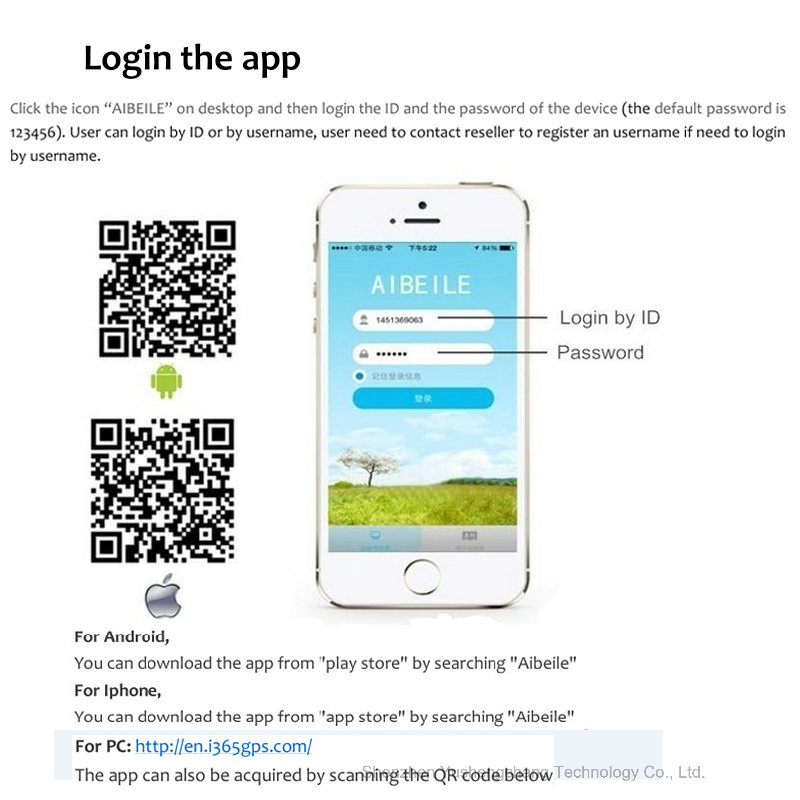

parts | supported operating | Support android 2.3 and above system, IOS5.0 and above. |
| call function | double talk/The remote monitoring |
| Language support | Simplified Chinese and English |
| Compatible with support for multi-languages |
| GSM+GPRS+GPS | GPS+LBS+WIFI Multi-modal positioning |
| support AGPS | Cold start 26 seconds positioning |
| call function | SOS call, voice monitor, whitelist for don't disturb |
| power management | Ultra-low power consumption of power management,intelligent dormancy |
| One key emergency | SOS one key emergency function ,autodialing |
| Smart Geo-fence | Outside the range setting can be automatic alarm |
| historical route | Can check history of three months |
| wireless upgrading | Software upgrade, remote debugging maintenance, remote setting
parameters |
Our Service
1.All of our products can be offered at OEM, such as custom logo, packaging, etc.
2.All our product will be strictly tested before we delivered to you.
3. we will try our best to provide the lowest shipping cost for you.
Warranty
1.Our product warranty is one year since the date of purchase.
2.We have the after-sale service. If any comments or questions after received our item, please e-mail us immediately, we will answer you as soon as possible.
FAQ
*What's the MOQ and lead time?
For our existing mold items, normally we don't have strict MOQ, samples or trial order is available.
Our sample lead time 2-3days, our production lead time is 10-15days, which also based on the order quantity.
*How can I get a sample to check quality?
Please just forward me the sample order summary (include the exact item number, preferred colors, sample quantity), then I will make the sample PI for your approval, after received your payment through Paypal, I will send out the sample to you
*When can I get the prices?
Within 12 hours after we received your inquiries.
If any question or new enquiry, please kindly feel free to contact me.
