Name: Pet Film Nomex Paper Laminates
Brand: all-electronics-online.com
SKU: 795381605
Availability: InStock
Rating: 5 (50 reviews)

Price:	US $ 29.8kg
Min Order:	50kg
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	6640, NMN
Max. Width:	900mm-1800mm
Thickness:	0.18mm - 0.50mm
Application:	Dry Transformer Coil Insulation
Type:	Insulation Film
Chemistry:	Hybrid Insulation
Thermal Rating:	H 180
Maximum Voltage:	10KV~20KV
Material:	Polyaramid Paper/Polyester Film
Certification:	ISO14001, Ohsas18001, ISO10012, Cnas
Color:	Natural Color
Brand:	Dongfang

Product Description

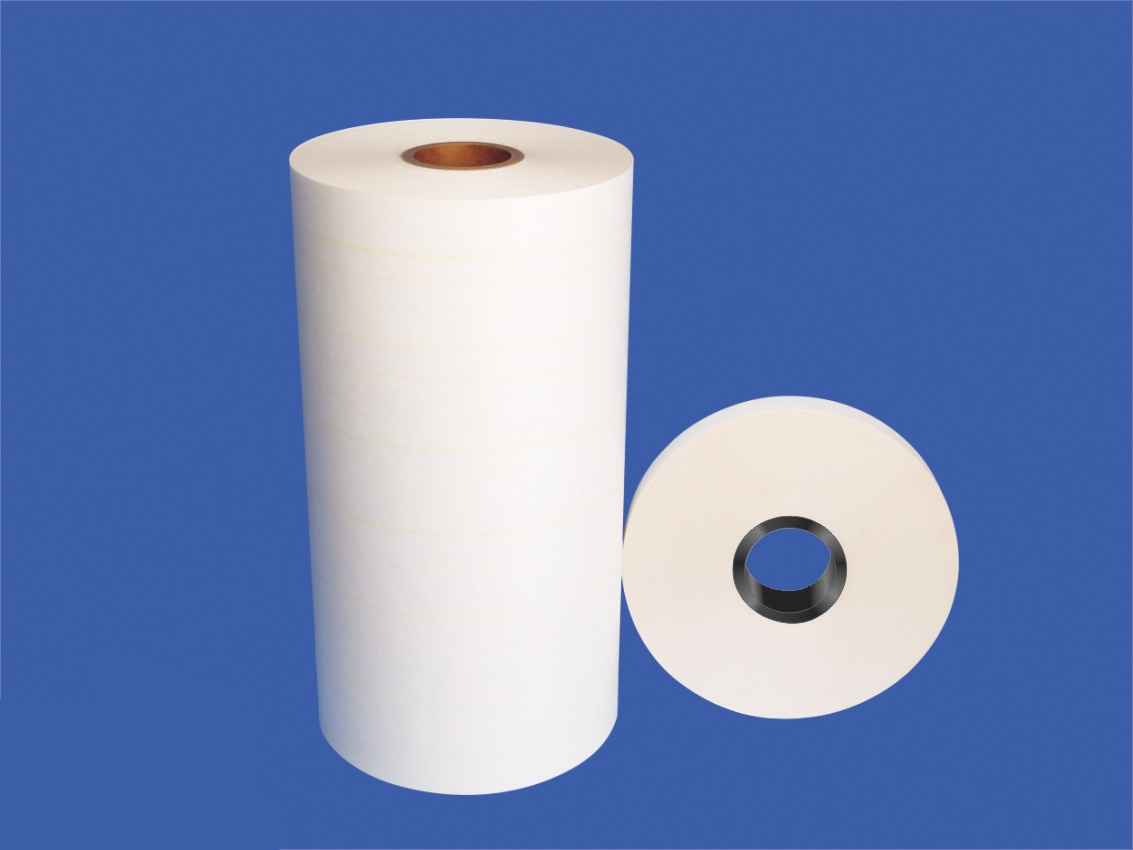

6640 Polyester film / polyaramid fibre paper flexible laminate (NMN) is a three-layer flexible laminate in which each side of polyester film (M) is bonded with one layer of polyaramide fibre paper (Nomex). This product has excellent electrical insulating properties, heat resistance, mechanical strength and impregnated property. It is used for slot insulation, interphase insulation, interturn insulation and liner insulation in Class F electric motors and electric appliances. 6640 has passed SGS test for toxic and hazardous substance detection.

1 Technical requirements

1.1 Appearance requirement should accord with stipulations of Part I: Definition & General Requirement, Electrical

Insulating Flexible Laminates, GB/T 5591.1-2002 (MOD with IEC60626-1: 1995).

1.2 Dimension:

Nominal width:900 mm+/-10mm. Nominal weight: 50+/-5kg /Roll.

The splices shall not be more than 3 in a roll.

1.3 The standard values for 6640 are shown in Table 1 and relevant typical values shown in Table 2.

Table1

Standard Values for 6640 (NMN)

No.

Properties

Unit

Standard Values

Nominal thickness

0.15

0.18

0.20

0.23

0.25

0.30

0.35

Thickness tolerance

+/-0.02

+/-0.03

+/-0.04

Grammage

g/m²

180+/-25

210+/-30

240+/-30

260+/-35

300+/-40

350+/-50

430+/-50

Not

≥150

≥160

≥180

≥200

≥220

≥270

≥320

folded

Tensile

After

≥80

≥110

≥130

≥150

≥180

≥200

≥250

folded

N/10mm

strength

Not

≥90

≥110

≥130

≥150

≥180

≥200

≥250

folded

After

≥70

≥90

≥110

≥130

≥150

≥170

≥200

folded

Elongation

≥10

≥12

≥15

≥18

Breakdown

Not folded

≥7

≥10

≥11

≥12

≥13

≥15

≥20

After

Voltage

≥6

≥8

≥9

≥10

≥12

≥13

≥16

folded

Bonding

property

room

No delamination

temp

Bonding property

No delamination, no bubble, no adhesive flow.

at 180ºC+/-2ºC, 10min

Temperature index

≥155

For thermal endurance

(TI)

Table 2 Typical values for 6640 (NMN)

No.		Properties			Unit					Typical values

1	Nominal thickness				mm	0.15		0.18	0.20		0.23	0.25	0.30	0.35

2	Thickness tolerance				mm		0.01			0.01			0.015
3	Grammage				g/m²	165		193	233		273	304	359	405

			MD	Not folded		184		209	235		272	305	327	405
	Tensile
4				After folded	N/10mm	185		207	221		255	273	315	353
				After folded		185		207	221		255	273	315	353
	strength		TD	Not folded		147		191	217		273	297	369	396
	strength			Not folded		147		191	217		273	297	369	396

				After folded		147		187	213		275	288	367	372
				After folded		147		187	213		275	288	367	372
5	Elongation			TD	%		20					22
5	Elongation				%		25					30
				MD			25					30
6	Breakdown		Not folded		kV	12		15	19		20	23	26	27
6	Voltage		After folded		kV	10		13	18		19	20	24	25
	Voltage		After folded			10		13	18		19	20	24	25
7	Bonding propertyat room temp								No delamination
8	Bonding property				-			No delamination, no bubble, no adhesive flow.
8	at 180ºC+/-2ºC 10min				-			No delamination, no bubble, no adhesive flow.
	at 180ºC+/-2ºC 10min
9	Temperature index				-					173
9	For thermal endurance (TI)				-					173
	For thermal endurance (TI)

2 Test method

As per the stipulations in Part II: Test Method, Electrical Insulating Flexible Laminates, GB/T 5591.2-2002

(MOD with IEC60626-2: 1995).

Testing for thermal resistance shall be as per the relative stipulations in JB3730-1999.

3 Packing, Transportation and Storage

3.1 6640 is supplied in rolls, sheet or tape and packed in cartons or/and pallets.

3.2 6640 should be stored in clean & dry warehouse with temperature below 40ºC. Keep away from fire, heat and direct sunshine.
3.3 The other requirements shall accord with the stipulations in Part I: Definition & General Requirement , Electrical

Insulating Flexible Laminates, GB/T 5591.1-2002 (MOD with IEC60626-1: 1995).

4 Application & Remarks

The properties (mechanical strength, breakdown voltage, flexibility and stiffness) of NMN are different for using different nominal thickness¡ polyester film. The thickness of the polyester film should be clearly indicated in purchasing order or contract.
