| Prod Model: |
XJJ-016 |
| Material: |
PET |
| Application: |
Camera |
| Type: |
for Any Car Seat. |
| Contact Type: |
Pressure Senor |
| Number Of Switch: |
>10 Million Activations |
| Detection Method: |
Precision,Easy Seat Integration,Reliability |
| Brand: |
Xjj/OEM |
| Certification: |
Ts-16949 |

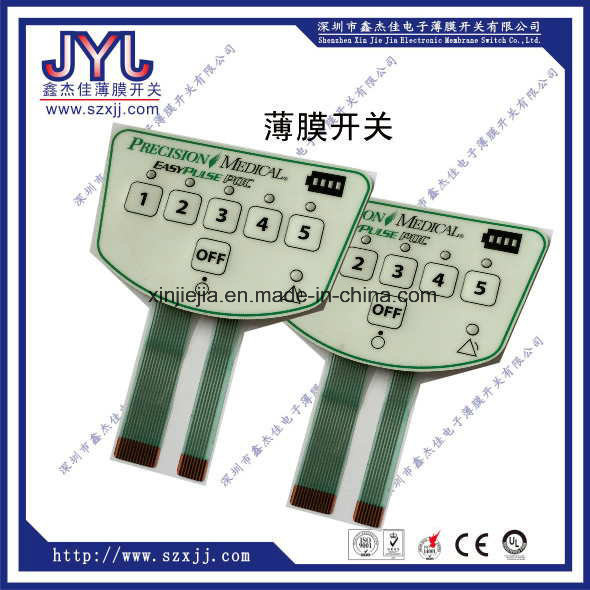

Product Description
Specifications
1Customization made
2.material polycarbonate(PET)
3.rear adhesive 3M468/467
4. Type metal dome tactile
Welcom join us
1: Membrane switch has below main advantages.
1)Small and portable. Generally a membrane switch is several or dozens Grams, it is quite convenient to carry or disassemble.
2)Aesthetic appearance. It adopts advanced silk screen printing technology, with special design; We can provide any custom solution you need.
3)Sealing. To meet customer's unique needs of the program, we can design The membrane switch to be water- proof, grease proofing, dust-proof, and Static-free. with unique technologies, the membrane switch can endure a High voltage.
4)Good conductivity. The circuitry is printed with carbon, silver, copper foil and So on, it can be freely folded, and the resistance can be limited according to Customer's specification.
5)Low cost. Membrane switch is low price, some even costs only cents. Compare to other electronic components which have same function, it is Exactly cheap price.
6)Long lifetime. The materials are with high isolation, thermal resistance, fold Resistance and rebound resilience. Moreover, the graphic can not be Damaged because of its second surface printing; The lifetime is usually Above 3 years.
2: Product's direction:
To analyze products in current market, most of them are getting to be short, small, Lightweight and thin. Membrane switch is just in accordance with this design, which Is an electronic component that in combination of art and technology.
3: Type of membrane switch:
Main types: There are many different types and layouts of membrane switch, its Basic function like travel, operating force, life time mainly depend on Type of key and material. The main types can be sorted as follows:
Membrane switch with flat keys, membrane switch with embossed keys (rectangle or dome), membrane switch with metal dome or polydome, Tactile or non-tactile, membrane switch with LCD window or embedded LED, and so on.
4: According to the tactile feeling, it can be classified to 3 types.
* Metal dome keypad: It has metal domes inside, with contacts above them, the Electric loop is generated by finger operating.
Advantage:
1) Good tactile feeling.
2) Long lifetime even being used in high temperature condition.
* Polydome keypad: Poly dome is an embossed dome in the circuitry layer of
Membrane switch, it is quite durable, and the travel is a Little shorter than metal dome keypad. In some applications, The polydome can be processed in top overlay layer, this reduces Numbers of layer. Operating force is influenced by material Thickness, diameter and height of the keys.
Advantage:
1) Quite durable.
2) It can be well operated for millions of times.
* Non-tactile keypad: No tactile feeling, for non-tactile membrane switch, it generally Utilizes other way to show what the Keys' status is.
Advantages: 1) Available in big area.
2) Lowest cost among all kinds of membrane switches.
5: At TCF, we manufacture complete line of membrane switches, our experienced
Design team are ready to work with you to design membrane switches to meet
Your unique needs of your project, Our products are of superb quality as well as the typical oriental make-up.
1) Graphic overlay with or without embossing.
2) Tactile with metal dome or polydome or non-tactile
3) Embedded LED or other surface mount components.
4) Waterproof or UV resistant.
5) Electroluminescent backlighting.
6) ESD shielding (Aluminum foil or whole layer with silver and carbon coated).
7) Tail with or without connector (male or female pin).
8: Our products are of superb quality as well as the typical oriental make-up and if you are interested in future, pls do not hesitate to contact me with any question
In the face of today's high-tech era, in all enterprises like introduction of new and interesting possibilities to play the leading role, and even into the huge human and financial resources to the enterprise product design and packaging. Suitable for high-tech and future trends, as much as possible so that all products to light, thin, short, small fine design.
Cutting-edge industries such as information --- computer, designed by the original Superman heavy, hand-held mini, more communication on the phone, but also towards light, thin, short, small direction of the devlopment of its design eples, in paticular civilian elctrical In this regard, the development isto catch up.
ShenzhenXinjiejia Electron sign membrane switch factory is a professional production of membrane switch manufacturers and their production of thin film switches in full compliance with light, thin, short, small features and high-tech nature.
The Shenzhen Xinjiejia Electron sign membrane switch factory, the general level of quality service for customers, selling its products all over the world, the company has consistently adhered to the first-quality, reasonably priced by manufacturers of deep love.
Shenzhen-a good sign membrane switch factory is very concerned about the requirements of each customer satisfaction and to ensure quick delivery. Please do not hesitate today to contact us information and samples.
Xinjiejia Electron kit is a professional high-tech printing company, the company's products include Ming Ban, circuit boards, membrane switch, touch-screen electronic cold light board, PCB board, silicone, flexible lines, injection and other special printing line, and so on, you are welcome Contact us and work with us.
