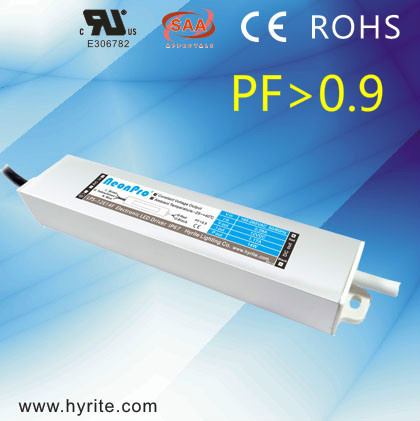

PF0.9 20W 12V IP67 AC/DC LED Driver for LED Signage

Name: PF0.9 20W 12V IP67 AC/DC LED Driver for LED Signage
Brand: all-electronics-online.com
SKU: 781738345
Availability: InStock
Rating: 5 (55 reviews)

Price:	US $ 14.72/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-12E20F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Current:	1.67A
Input Voltage:	220V
Output Voltage:	12V
Power Factor:	0.9
IP Rating:	IP67
Dimensions(LWH):	1653222mm
Operating Temperature:	-30~50degree
Cooling:	Free Air Convection
Use:	for LED Strips,LED Modules,Light Box...
Certificates/Standards:	Ce
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	220V
Brand:	Neonpro

Product Description

PF0.9 20W 12V IP67 AC/DC LED driver for LED Signage

1.Brief Introductions:
*External driver for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
With build-in active pfc(power factor corrector), pf≥ 0.9
*EMC(electro-magnetic compromise) tested, suitable for indoor or outdoor LED application with low electro-magnetic disturbenance requirement
*Seamless aluminum housing, fully sealed and waterproof
*Constant voltage output
*100% full load burn-in test

2.Note:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc

3.Shipping:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

4.Technical sheet:

Model no.	LPS-12E20F
Input voltage	220V 50/60Hz
Max. power	20W
Output type	Constant voltage
Dimming	Not dimmable
Built-in active PFC	With PFC
Power factor	≥0.9
Efficiency	80%
AC inrush current(max.)	65A@230VAC
Output voltage	5±0.5V, 12±0.5V, 24±0.5V
Output current	1.67A
Overload protection	>130% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-30~50degree
Installation	Outdoor waterproof
IP rating	IP67
Cooling	Free air convection
Certificates/standards	CE
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2×3 (18cm)
Dimensions(LWH)	1653222mm
Packing information	10pcs/carton 10kg

5.Applications&workshops&exhibitions:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
