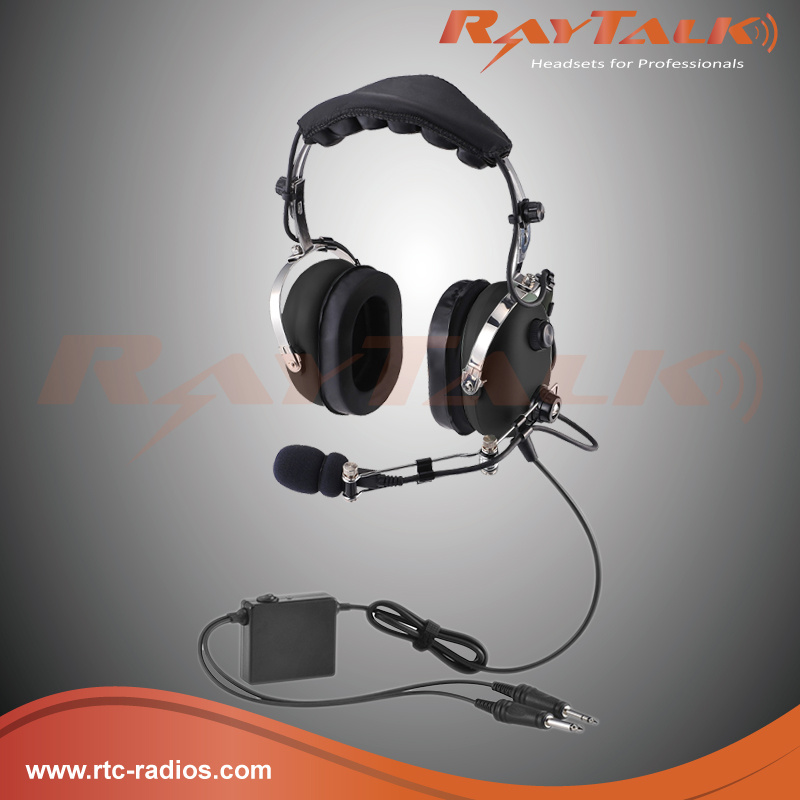

pH-100c Anr Noise Cancelling Aviation Headset

Name: pH-100c Anr Noise Cancelling Aviation Headset
Brand: all-electronics-online.com
SKU: 821432585
Availability: InStock
Rating: 4.7 (82 reviews)

Price:	US $ 172-180/Piece
Min Order:	25/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PH-100C
Item:	pH-100c Anr Noise Cancelling Aviation Headset
Connectors:	Pj-055/Pj-068
Use For:	Aviation,Pilot,Airline,etc
Function 1:	Microphone, Noise Cancelling
Earphone Plug:	Pj-055( .25"F6.3 Phone Plug)
Microphone Plug:	Pj-068( .206"F5.2 Phone Plug)
Operating Temperature:	-20 to 70 Degree
Weight:	530g
Warranty:	12 Months

Product Description

PH-100C ANR Noise Cancelling Aviation headset

Features:

1. GA use dual plugs
2. Active noise reduction: NRR 29db
3. Small AA battery box with belt clip
4. Comfortable gel ear seals
5. Clear Hear performance audio speakers
6. Noise cancelling electret microphone: dynamic microphone can be replaced
7. Fully adjustable spring steel headband
8. Low profile volume control knob
9. Earphone plug: PJ-055(.25'' F6.3 phone plug)
10. Microphone plug: PJ-068(.206'' F5.2 phone plug)
11. Straight cord from headset to molded plug, 150cm
12. Color: Green/Black/Pink/Red/Yellow/Blue/Gray

Overview
ANR Aviation Headset
Plugs	GA Use Dual
Super Soft Double Foam Head Pad
New Comfort foam, undercut ear seals
Molded cord assembly made to exceptional pull and flex standards
Noise-canceling electret
Strong Steel Boom provides flexibility and steady microphone placement
Straight cord from headset to molded plug:	150CM
Noise Reduction Ratings (NRR):	24dB
Specifications
Headphone
Type:	Dynamic (F50)
Frequency Response:	100Hz to 8 kHz
Sensitivity:	95+/-5 dB SPL
(1 kHz, 1 mW input per earcup side)
full volume on ear simulator
Impedance:	150 ohms (300 ohms each; wired in parallel)
Rate Input:	100mW
Max. Input:	250mW
Microphone and Amplifier:
Element Type:	Noise-canceling electret
Frequency Response:	100Hz to 5 kHz
Operating Voltage (supplied by aircraft ):	8-32 Volts DC
Matching Impedance:	150-1000 ohms
Sensitivity:	33+/4 dB
(ref: 0dB SPL=20.0uPa at 1 kHz with 10 Vdc 150 ohms AC load)
General
Operating Temperature:	below 20 to 70 °C
Cordage:	Straight cord from headset to molded
plug,	150CM
Intercom Connections Plug:
Earphone Plug:	PJ-055( .25"F6.3 phone plug)
Microphone Plug:	PJ-068( .206"F5.2 phone plug)
Weights:	530g
Headset size range Height:	10 to 14 cm
Color:	Green/Black/Pink/Red/Yellow/Blue/White/Grey
Boom:	Spring tension boom
