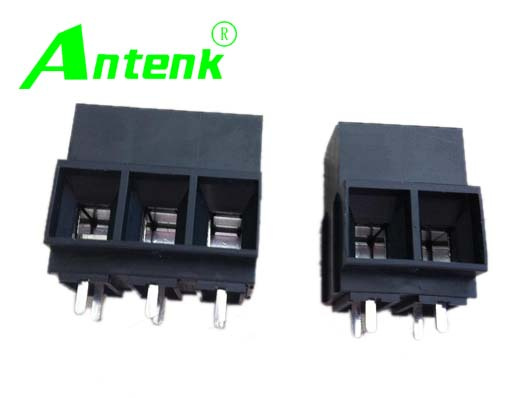

pH10.16mm Terminal Block

Name: pH10.16mm Terminal Block
Brand: all-electronics-online.com
SKU: 688745145
Availability: InStock
Rating: 5 (96 reviews)

Price:	US $ 0.2/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Application:	PCB
Environmental Protection:	General
Connection Mode:	Threaded Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Brand:	Antenk

Product Description

PCB Terminal Blocks with 2 to 24P Poles, 10.16mm Pitch and 30A Maximum Current
Pitch: 10.16mm
Poles: 2 to 24P
Materials:
Contact (metal housing): Copper alloy with Ni plated
Terminal screw: Steel galvanized with Cr³ Plated
Solder pin: Copper alloy with tin plating
Insulator body (housing): Polyamide (glass filled) (UL94V-0)
Electrical:
Voltage: 300V AC
Current: 30A (maximum)
Contact resistance: 20MΩ (maximum)
Insulation resistance: 5, 000MΩ /1, 000V
Withstanding voltage: 2, 500V AC (1min) test time: 60sec/1PCS
Wire: 12 to 26AWG
Mechanical:
Usage temperature: -40 to 105C
Soldering temperature: 250 ± 10C, 5 seconds (maximum)
