pH200 Power Amplifier Transformer Amplifier

Name: pH200 Power Amplifier Transformer Amplifier
Brand: all-electronics-online.com
SKU: 799745285
Availability: InStock
Rating: 4.5 (30 reviews)

Price:	US $ 145-255/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PH200
OEM:	Yes
Type:	Professional Amplifier
Usage:	KTV System
Used For:	Professional
Tube Type:	Transistor Amplifier
Function:	Post Amplifier
Sound Channel:	2.1
Output Number:	8
Voltage:	AC 220V
Element Number:	Push-Pull Amplifier
Conductive Mode:	AB

Product Description

PH200 Power Amplifier Transformer Amplifier

Technical Parameters:

Model	PH200	PH300	PH400	PH600
Stereo power 8Ω	2×200W	2×300W	2×400W	2×520W
Stereo power 4Ω	2×300W	2×450W	2×600W	2×780W
Stereo power 2Ω	2×400W	2×600W	2×800W	2×1040W
Bridge power 8Ω	600W	900W	1200W	1560W
Bridge power 4Ω	800W	1200W	1600W	2080W
Frequency Response	5Hz-35KHz(+0/-0.5dB)
THD+N	<0.01% 8Ω 1KHz
Signal to Noise	>100dB	>100dB	>100dB	>100dB

Model	PH200	PH300	PH400	PH600
Damping coefficient	>400	>400	>400	>400
Crosstalk	>70dB	>70dB	>70dB	>70dB
Input impedance	20KΩ(Balance)/10KΩ(Unbalance)
Input sensitivity	1.0V/2.0V
Protection	Output Relay-Zero Cument Switch , Irtellctual Cup Limiter.
High	2U	2U	2U	2U
G.W	21KG	23KG	26KG	27.5KG
Dimension(L×W×H)	575×570×158mm

Detailed Pictures

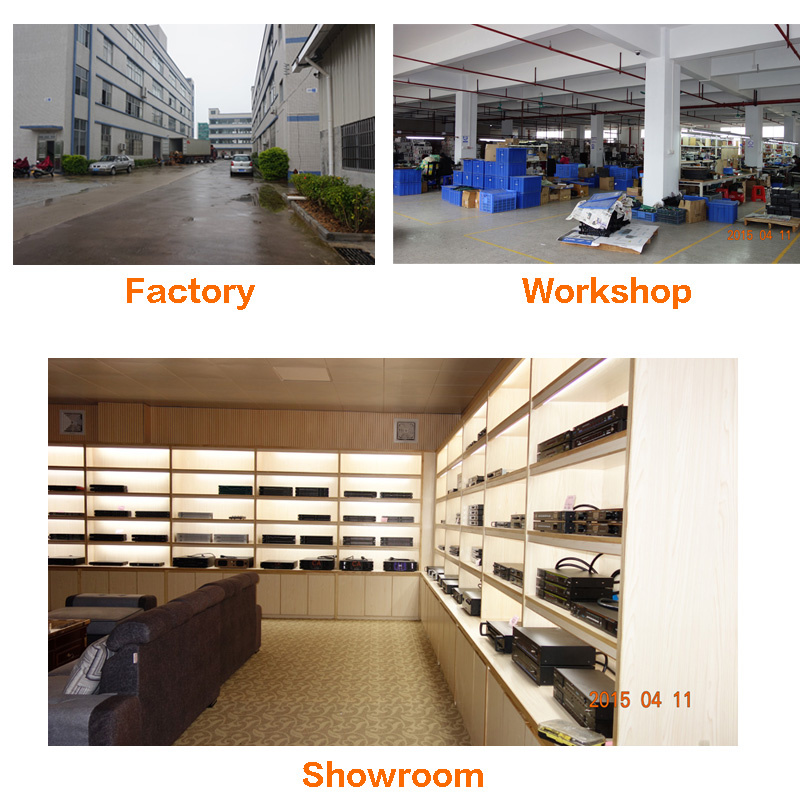

Located in Enping city with convenient traffic, Brun Audio Equipment Factory is a professional manufacturer of Power amplifier and audio processor such as Graphic Equalizer, Crossover, Power sequencer controller, Compressor Limiter and so on.

Founded in 2009, from the audio processor to power amplifier, from karaoke amplifier to 2 channel and 4 channel power amplifer, we integrate design, research, production and sales and adopt advanced technology.

Our Enterprise Propagation language is "Trust comes from Quality". We strictly control the quality all the time. Obey to provide the all the clients with good quality.

Our products widely use for Entertainment, meeting room, stage outdoors performance and so on. With 8 years of production experience, we are able to meet all the needs from our clients. We have won a high reputation both at home and abroad. We sincerely hope to cooperate with customers from all over the world to create a bright future together. If you are interested in any of our products, please contact us for more details.

OEM/ODM are available.
