Phase Failure Relay (over & under voltage protective)

Name: Phase Failure Relay (over & under voltage protective)
Brand: all-electronics-online.com
SKU: 825991485
Availability: InStock
Rating: 5 (33 reviews)

Price:	US $ 3-4/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TRV8
Phase Sequence Protection:	Yes
Phase Failure Protection:	Yes
Over Voltage Protection:	Adjustable, Fixed or Without
Under Voltage Protection:	Adjustable, Fixed or Without
Asymmetry:	Adjustable, Fixed or Without
Delay:	Adjustable, Fixed or Without
Packing:	1 PC Per Inner Box, 10 PCS Per Middle Box
Width:	18mm
Length:	95mm
Height:	64mm

Product Description

Function

Model	Over-voltage	Under-voltage	Asymmetry	Delay	Phase Sequence	Phase Failure

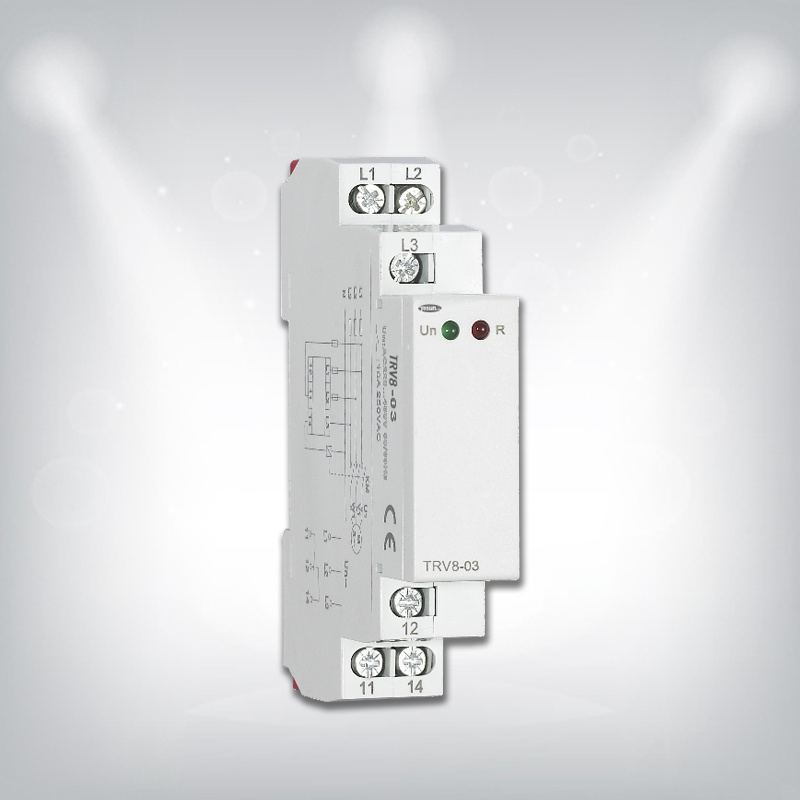

TRV8-03	-	-	-	-	yes	yes

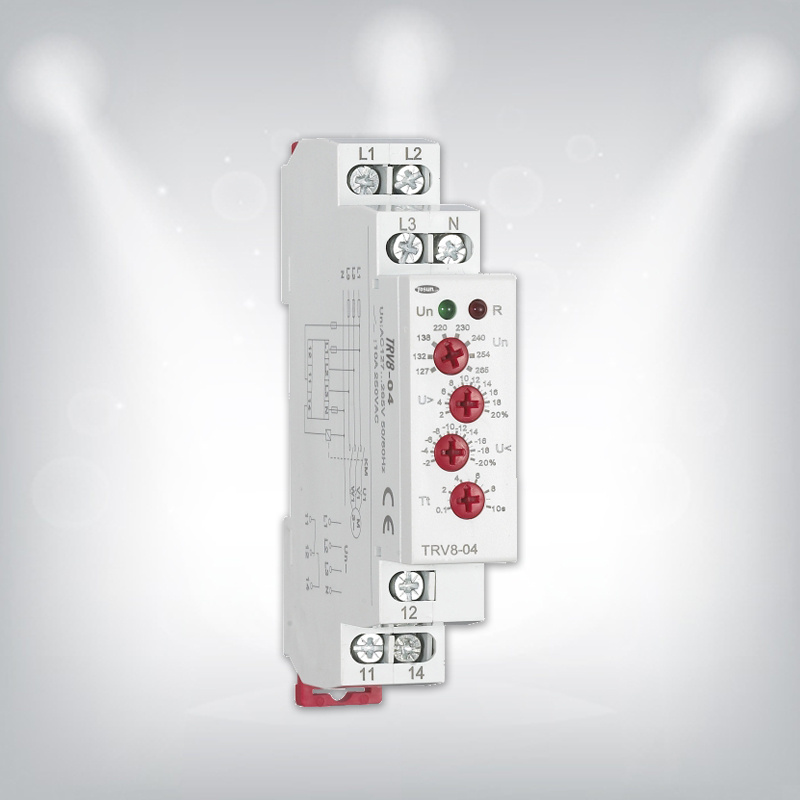

TRV8-04	2%...20%	2%...20%	-	0.1s…10s	yes	yes
TRV8-05	2%...20%	2%...20%	8%	0.1s…10s	yes	yes
TRV8-06	2%...20%	2%...20%	5%...15%	2s	yes	yes
TRV8-07	-	-	8%	2s	yes	yes

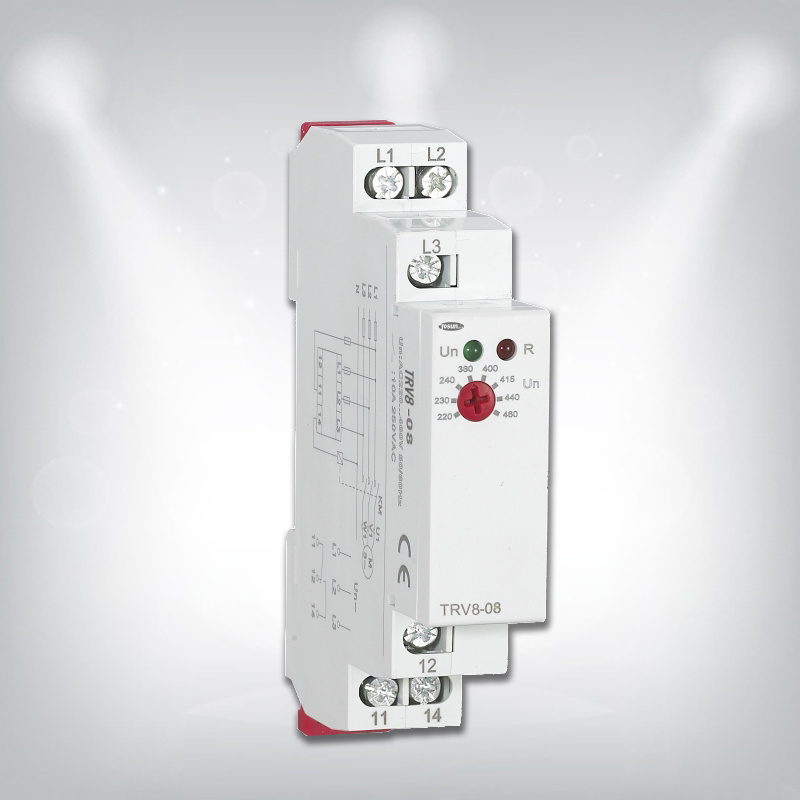

TRV8-08	15%	15%	8%	2s	yes	yes

Specification

Function	Monitoring 3-phase Voltage
Monitoring Terminal	L1-L2-L3	L1-L2-L3-N
Supply Terminal	L1-L2	L1-N
Voltage	220-230-240-380-400-415-440-480(P-P)	127-132-138-220-230-240-254-265(P-N)
Frequency	45-65Hz
Measuring Range	176-552V	101-318V
Supply Indication	Green LED
Output Indication	Red LED
Switching Voltage	250VAC / 24VDC
Current	10A/AC1
Reset Time	1000ms
