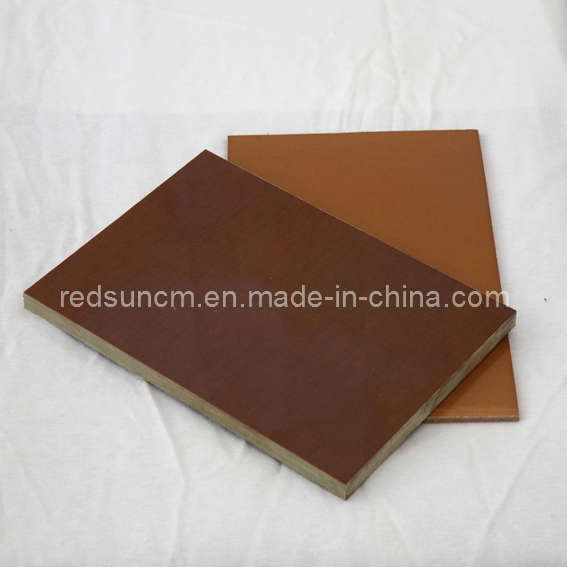

Phenolic Cotton Fabric Laminate 3027

Name: Phenolic Cotton Fabric Laminate 3027
Brand: all-electronics-online.com
SKU: 670392512
Availability: InStock
Rating: 4.6 (51 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	300/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Temperature Classification is E. Higher dielectric and mechanical properties. Used as the insulating structural parts for small-medium type electric machine and apparatus equipment.

Table 1: Nominal thickness and tolerance Unit: mm
0.5	± 0.15	7	± 0.55
0.6	-	8	± 0.55
0.7	-	9	± 0.65
0.8	± 0.15	10	± 0.65
1	± 0.15	12	± 0.80
1.2	± 0.18	14	± 0.80
1.5	± 0.18	16	± 1.10
1.8	± 0.23	20	± 1.10
2	± 0.23	25	± 1.20
2.5	± 0.30	30	± 1.20
3	± 0.30	35	± 1.50
3.5	± 0.30	40	± 1.50
4	± 0.35	45	± 2.00
4.5	± 0.35	50	± 2.00
5	± 0.40	60	± 2.50
5.5	± 0.40	70	± 2.80
6	± 0.50	80	± 2.80
6.5	± 0.50
Note: 1. The tolerance mentioned above is only used to refer and the actual one is according to the standard.
2. Normal dimension: 860± 15mm× 1460± 15mm, 960± 15mm× 1460± 15mm, 960± 15mm× 1960± 15mm
Table 2: Properities requirements
No	Item		Unit	Normal Value
1	Density		g/cm 3	1.30-1.42
2	Martins temperature (lengthwise)		C	≥ 135
3	Flexural strength		MPa	≥ 88.2
4	Tensile strength		MPa	≥ 58.8
5	Bonding strength		N	≥ 5390
6	Impact strength (In-notched)		kJ/m 2	≥ 19.6
7	Breakdown strength perpendicular to layer direction. at90 C± 2 C oil		MV/m	Refer to table3
8	Breakdown voltage parallel to layer direction. at90 C± 2 C oil		kV	≥ 10
9	Insulating resistance parallel to layer direction	at room temperature	W	1× 10 10
9	Insulating resistance parallel to layer direction	After being humidified	W	1× 10 7
Table 3: Breakdown strength perpendicular to layer direction.
Sample thickness mm	Breakdown strength perpendicular to layer direction. at90 C± 2 C oil. (kV/mm)
0.5-1.0	8
1.1-2.0	6
2.1-3.0	5
≥ 3mm processed by same side	5

Beijing Red Sun Composite Material Co., Ltd. is one professional producer for SMC and BMC molding products, insulating rigid laminates, rods and tubes, flexible composites, high thermal resistant products, gasket, fiber glass products, engineering plastics, etc. We also provide the further fabrication for these products and kinds of composite materials. You can get most of what you want from us.

Advanced production line, excellent technology and experienced work team assure we can provide you the products comply with the international standards and different requirements. We assure that you will get the high efficiency feedback and best service from us for those products that we deal with and certainly with the competitive price.

We have won customers from USA, Canada, Germany, Japan, and so on to be our partners, and more and more customers are joining us.

Red Sun Composite always takes the "Mutual Benefit", "Quality First" and "Better Ethics" as principle. Red Sun Composite will be your partner to success.
