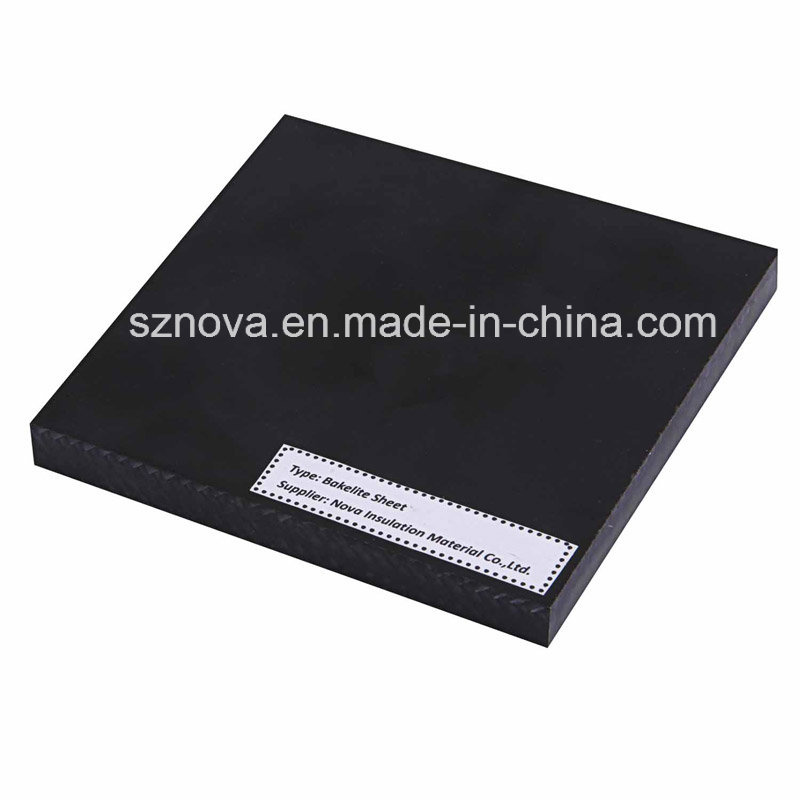

Phenolic Paper Laminated Sheet (NEMA X)

Name: Phenolic Paper Laminated Sheet (NEMA X)
Brand: all-electronics-online.com
SKU: 769196225
Availability: InStock
Rating: 4.5 (57 reviews)

Price:	US $ 2.8-3negotiable
Trade Terms:	FOB,CFR,CIF
Min Order:	500Kilogram
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	NEMA X
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sheet Size:	1020 X 1220mm, 1020 X 2040mm, 1220 X 2040mm
Application:	Insulating Washers
Type:	Insulation Sheet
Chemistry:	Inorganic Insulation
Thermal Rating:	E 120
Maximum Voltage:	20KV~100KV
Material:	Cellulose Fiber Paper
Color:	Brown, Orange, Black
Brand:	Nova

Product Description

These grades are comprised of phenolic resin binder and insulating kraft paper substrate.
These are general purpose grades with superior electrical, mechanical properties, and easy to machine.
Temperature Index: 120 Degree Celsius

Applications:
They are widely used for electrical & mechanical parts, such as switchboards, panel boards, insulating washers, bushing, punched component, etc.

Specifications:
1) Grade: X/XX/XP/XPC
2) Color: Brown; Orange; Black
3) Thickness range: 0.5mm to 100mm.
4) Sheet Size: 1020*1220mm; 1020*2040mm; 1220*2440mm
5) Min. Order Quantity: 500 kgs in a lot

(NEMA Grade: X/XX/XP/XPC)
(IEC Grade: PFCP201, PFCP202, PFCP203, PFCP204)
(DIN7735 Grade: HP2061, HP2061.5, HP2061.6)

Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.

We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.

Nova supplies the following products:

1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)

2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)

3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)

4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.

Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.

Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
