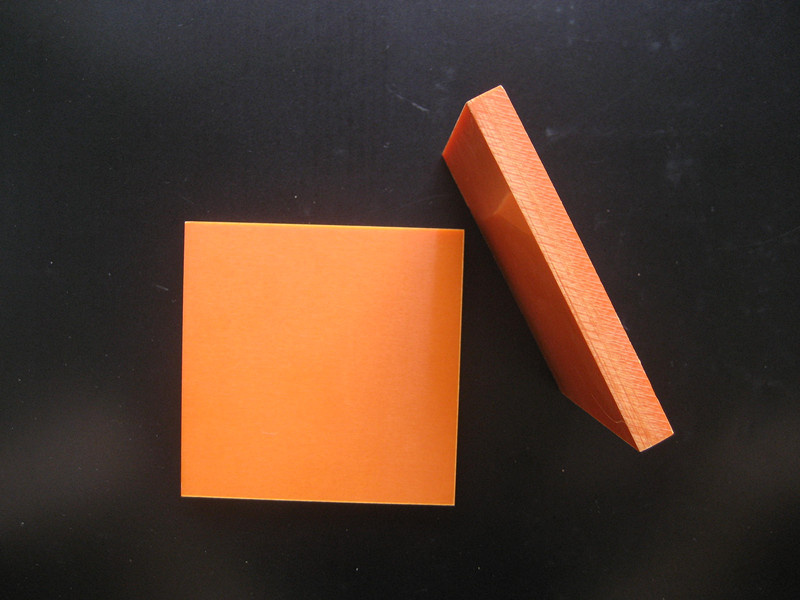

Phenolic Paper Laminated Sheets (Bakelite Sheets)

Name: Phenolic Paper Laminated Sheets (Bakelite Sheets)
Brand: all-electronics-online.com
SKU: 776675375
Availability: InStock
Rating: 4.3 (70 reviews)

Price:	US $ 2.8-3negotiable
Trade Terms:	FOB,CFR,CIF
Min Order:	500Kilogram
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Bakelite Sheet
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sheet Size:	10201220mm; 10202040mm
Thickness Range:	0.5mm~100mm
Min. Order Quantity:	500 Kgs in a Lot
Packaging Details:	500-1000kgs Per Pallet or as Required
Lead Time:	7-15 Days After Confirmed
Application:	Insulating Washers
Type:	Insulation Sheet
Chemistry:	Inorganic Insulation
Material:	Paper
Thermal Rating:	E 120
Maximum Voltage:	20KV~100KV

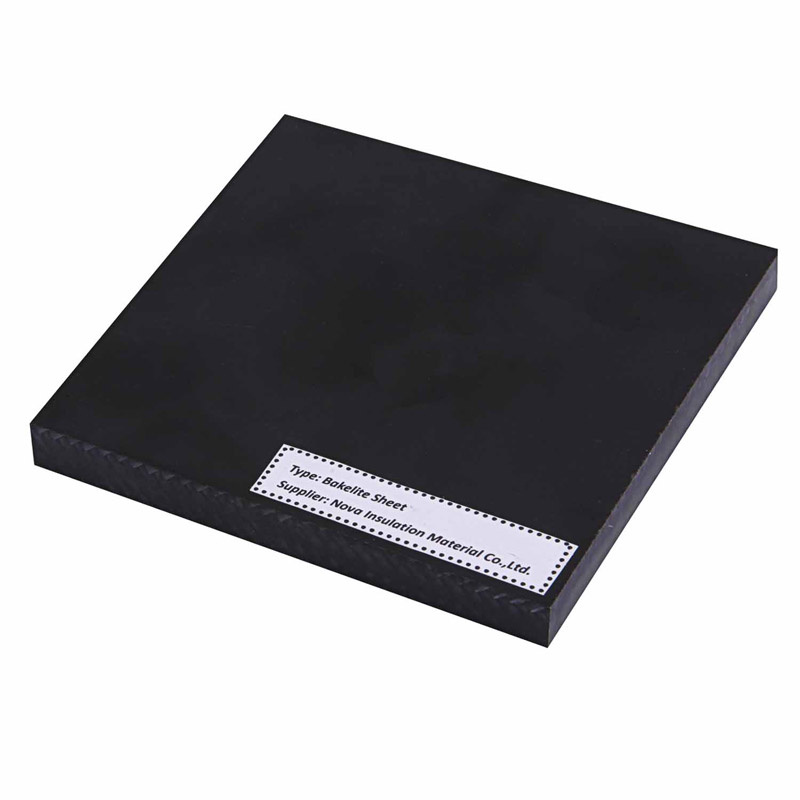

Color:	Brown, Orange, Black
Brand:	Nova

Product Description

These grades are comprised of phenolic resin binder and insulating kraft paper substrate.
These are general purpose grades with superior electrical, mechanical properties, and easy to machine.
Temperature Index: 120 Degree Celsius

Applications:
They are widely used for electrical & mechanical parts, such as switchboards, panel boards, insulating washers, bushing, punched component, etc.

Specifications:
1) Grade: X/XX/XP/XPC
2) Color: Brown; Orange; Black
3) Thickness range: 0.5mm to 100mm.
4) Sheet Size: 1020*1220mm; 1020*2040mm; 1220*2440mm
5) Min. Order Quantity: 500 kgs in a lot

(NEMA Grade: X/XX/XP/XPC)
(IEC Grade: PFCP201, PFCP202, PFCP203, PFCP204)
(DIN7735 Grade: HP2061, HP2061.5, HP2061.6)

NO.	PROPERTIES	UNIT	METHO DE	STANDARD VALUE	TESTING RESULT
1	Density	g/cm3	ISO 1183	≥1.03	1.16
2	Water absorption rate	%	ISO 62	≤8.0	7.6
3	Bonding strength	MPa		≥70	95
4	Flexural strength	MPa	ISO 178	≥ 50	81
5	Compressive strength (Axial)	MPa	ISO 604	≥ 50	62
6	Thermo stability(24h)	ºC		120	pass
7	Dielectric strength perpendicular to laminations (withstand voltage) (in oil 90±2ºC) 2.0mm in thickness	kV/mm	IEC 60243	≥8.5	9.5
8	Breakdown voltage parallel to laminations (in oil 90±2ºC)	kV	IEC 60243	≥ 25	36

Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.

We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.

Nova supplies the following products:

1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)

2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)

3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)

4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.

Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.

Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
