Phone APP Electric Fireplace PCBA with Thermostat
| Price: |
US $ 72-88/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
TC-fireplace03 |
| Weight: |
117g |
| Operating Voltage: |
100V-&⪞apdot;40V 50Hz |
| Bluetooth Range: |
≃0m |
| Load Power: |
=<&⪞apdot;000W |
| Type: |
Combining Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Complex |
| Flame Retardant Properties: |
HB |
| Brand: |
Yingxin |
Product Description
Product details:
Model:TC-fireplace03
Technology Sepcifications:Operating Voltage:100V-240V 50HZLoad Power:=<2000wBluetooth Range:30mOperating Temperature:-20ºC~60ºCSize:120*70*19(mm)Weight:117(g)

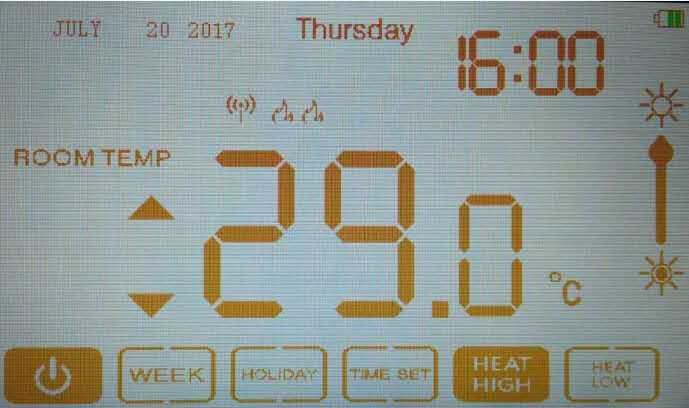

Touch screen control functions:1.Timing control, can define any period of time within a week to open or close. You can set up 5 regular groups at most one time.
2. Holiday mode3. Thermostatic control function. It can set temperature,when room temperature reach to a low temperature, the fireplace will automatically open the heating function,meanwhile when room temperature higher than a certain temperature, the fireplace automatically turn off the heating function.4. Remote control your fireplace anywhere in the home,can check the state and data of fireplace anywhere in the home, can open fireplace heating function when needs.5. Adjust the flame size and flame gears.6. calendar functionTechnology sepecifications:
Bluetooth Chipset:Texas Instruments CC2640Built-in Battery:4000mAQuiescent Current:<4mABattery Life:30 days(Standby)Operating Temperature:-20ºC~60ºCColor:whiteMaterial:ABS+Tempered GlassSize:140*80*23(mm)Weight:216(g)

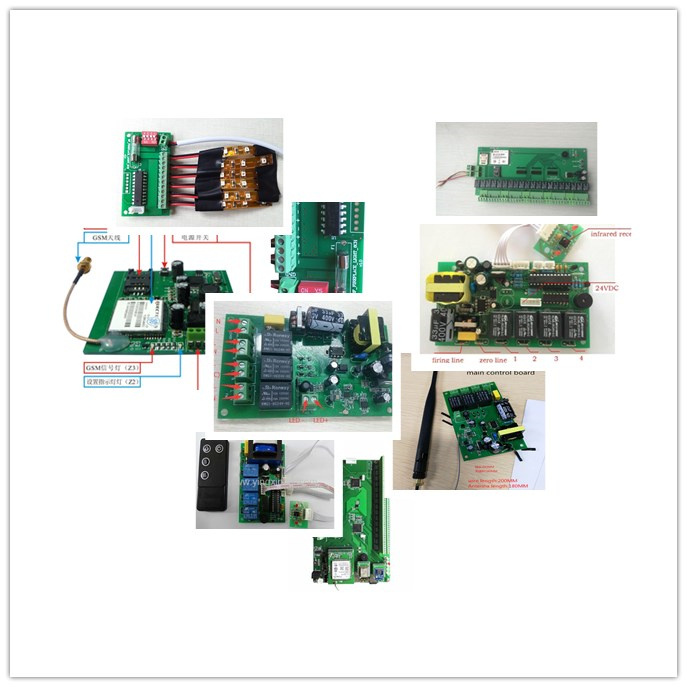

About us:We are a professional manufacturer of producing remote control board/PCBA of all kinds of fireplaces and appliances.Based on your product features,we can provide remote control program such as remote/TC/phone app remote control your fireplace.
We have R&D team,we can design hardware control board as well as software device at your requirements.
Quality Policy: -- We have Systematic and ISO certified Quality Control system. We always supply the material on 100% Quality Guaranty.
High quality guarantee. Efficient and competitive quotation. Your satisfaction is our greatest achievement.
FAQs:Can you offer customizing logo service?
Of course,we can provide logo services for mass order.
Can I have special price and service for wholesale?
Yes, we are professional manufacturer and have favorable price and good service for wholesalers.
What is your warranty for your products?
According to your requirements for quality. Generally, we offer one years guarantee.
What is your delivery time?
Sample: in 7 working days. Bulk order: 20-30 days depend on the order quantity.
What payment terms are available?
West Union, PayPal, T/T are available for your choosing.
Contact us:
Established in year 1999, Shenzhen XinYingxin Electronics Technology Co., Ltd. is specialized in research and development, the production and the sale, is an enterprise with high technology in smart home system products, WiFi and bluetooth switch/socket, stainless steel electric kettles and intelligient household appliances.
Our company adhere to the road of independent innovation development, successfully launched abundant patents and proprietary intellectual property rights of "smart home" control system products.
YingXin smart home system, is designed for the home or office of integrated Intelligent remote control, displaying video in real time, control lights, curtains, electrical, timing, IOS application and so on...
YingXin smart home system control system products, interpret the concept of "smart home" from both security and intelligent, advocate for the concept of modern home living for intelligent management, healthy living, energy saving, environmental protection and the protection of privacy, leading the new trend of networked intelligent life.
YingXin smart home system, we put perfect products and services the first place in the development of the company. Design products according to market requirements, improve products as requested by the users, establish and improve after-sales service system, allows users to feel the most attentive and thoughtful service. Constructing harmonious space and enjoy intelligent life. YingXin intelligent believe in a spirit of public service, design and manufacture the best products, and link your life with high-tech, Web of Things more close, and create a harmonious home, warm houses, safe houses, the House of wisdom for you...
YingXin intelligent----your professional smart home system supplier!
