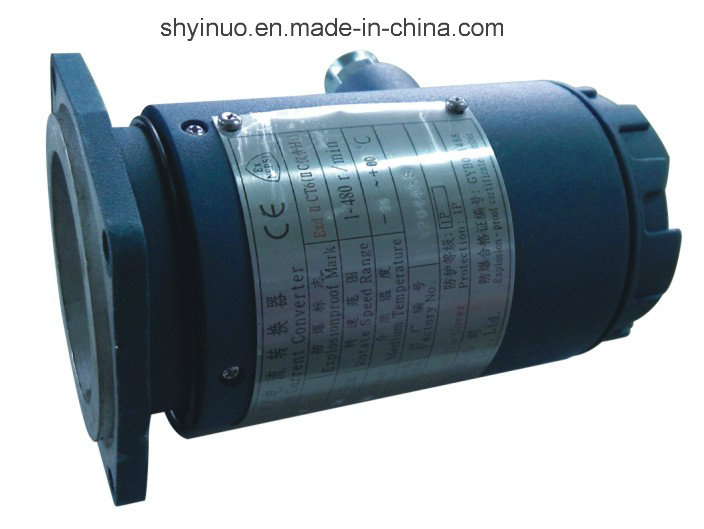

Photoelectric Current Generator (LPJ-I)

Photoelectric Current Generator (LPJ-I)
Price: US $ 419/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: LPJ-I
Type: Rotary Encoder
Working Principle: Absolute
Readout Mode: Contact
Operating System: Photoelectric Type
Signal Output: Current
Axle Sleeve Type: Large Diameter Type
Package: PGA
Installation Form: Axle Sleeve Type
Axonia: Clamping Flange Type
Brand: Koyo

Product Description

General
This Generator can change the angle displacement of the axes into electrical pulse signals (F) or current signals (I), and measure the total angledisplacement value and angular velocity of the axis rotation. Allowed to be used with a variety of flow meters;long-distance signals can be transmitted into the local display meter or computer for inspecting and control the flow.

Technical Datum
1.Rotation speed Range: 2~300r/min
2.Output
   A. Standard Pulse:
   Pulse Frequency:1000P/r(A$B)
   Accumulated Error:±1 Pulse
   Waveform: Square Wave
   Voltage: (Peak - to - Peak): V
L< 1V,  VH=12VP-P
   Load Resitance: ≥10K
   B. Current
   Response Frenquency: 0~10000Hz
   Current: 4~20mA or 0~10mA
   Load: 0~600Ω
   Response Time:<1Second
3.Ambient Condition:
   Temperature: -20~+70ºC
     Relative Humidity <85%

4.Power Supply:
   Voltage:DC10~28V
   Current:<80mA
   Noise:≯10mA (Input Noise)
5.Anti-explosion:
   Grade : Exd II CT6(Only H2) Certificate GYB071488

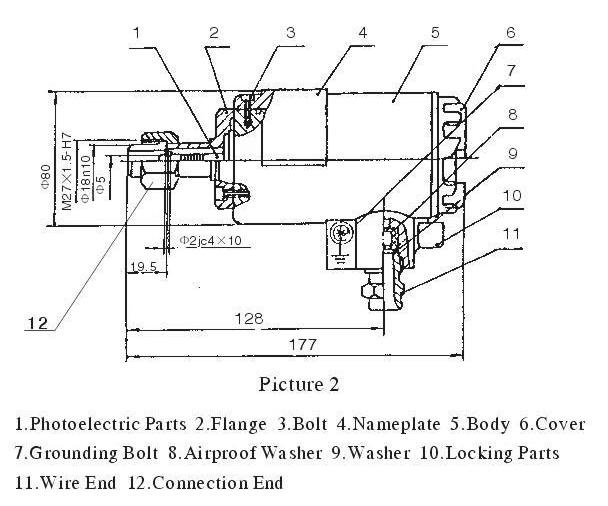

6.Outline Structure: See Picture 1



7.Electrical Interface: G1/2
