Photoelectric Sensor Switch, Photo Switch

Name: Photoelectric Sensor Switch, Photo Switch
Brand: all-electronics-online.com
SKU: 840521365
Availability: InStock
Rating: 4.5 (55 reviews)

Price:	US $ 1-10piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HE3S series

Product Description

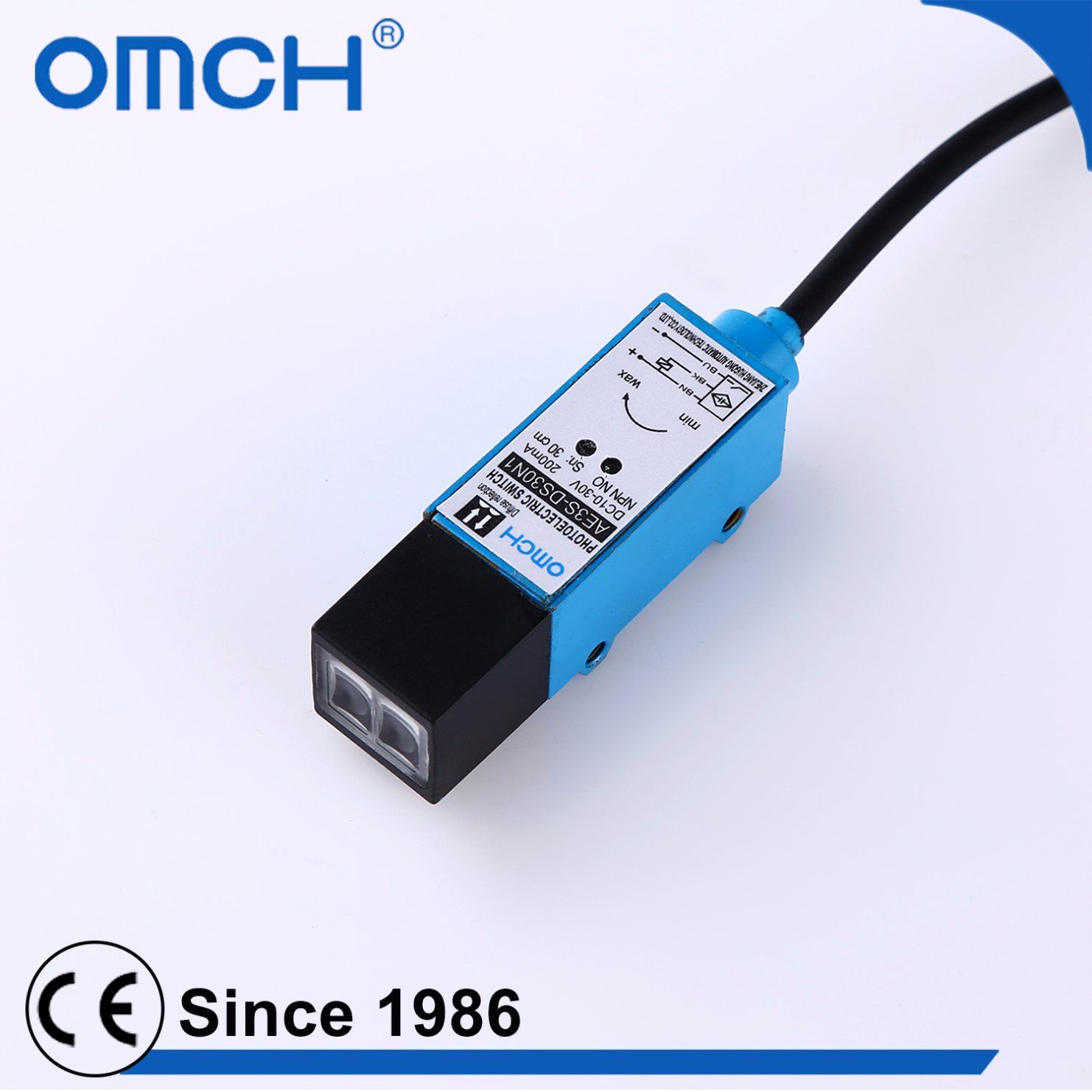

photoelectric sensor switch,photo switch

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC
Used in common places witch medium environment resistance
Red LED indicates that it's available to derect the sensor operating state
IP65 protection structure (IEC specification)
Read the "Matters needing attention" of the Product Instruction before use

Type and Specification
We sincerely welcome agents from all over the world

Dimension				20x20x64mm
Detection method				Transmission type	Diffuse reflection type	Feedback reflection type
T y p e	DC Type	N P N	NO	HE3S-5DN1-5L	HE3S-DS30N1	HE3S-R2N1
			NC	HE3S-5DN2-5L	HE3S-DS30N2	HE3S-R2N2
			NO+NC	HE3S-5DN3-5L	HE3S-DS30N3	HE3S-R2N3
		P N P	NO	HE3S-5DP1-5L	HE3S-DS30P1	HE3S-R2P1
			NC	HE3S-5DP2-5L	HE3S-DS30P2	HE3S-R2P2
			NO+NC	HE3S-5DP3-5L	HE3S-DS30P3	HE3S-R2P3
	AC type	Two wire	NO	HE3S-5A1	HE3S-DS30A1	HE3S-R2A1
			NC	HE3S-5A2	HE3S-DS30A2	HE3S-R2A2
Detection range				5m+/-10%	30cm +/-10%	2m+/-10%
Detection range regulation				Fixed	Sensitivy adjuster	Fixed
Detection target				Opaque object	Transpparent/Opaqueobject	Opaque object
Response frequency				DC:1ms AC:30ms
Connection delay				1.5ms
Light Source				Infrared light 660nm
Supply voltage				DCtype:DC12-24V(6-36V)Impulse(p-p)10%below ACtype:AC110-220V(90-250V)50/60Hz
Consumption current				N.Ptype:20mAbelow,A type:1.7mAbelow.
Control output				N.Ptype:300mAbelow,A type:400mAbelow.J type: 2A below(contact service life:0.1 million times)
Loop protection				N.P.D type:reversal connection protection, surge Absorption, load short-circuit protection A type: surge absorption
Ambient temperaturehumidity				During operation,storage:individually-30~+65( No freeze,no drew),During operation,storage Individually35~95%RH
Insulation impedance				50 MΩ above(DC500 megameter) between charging and housing
Withstand voltage				AC1000V50/60Hz 1 min between charging and housing
Temperature influence				Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance
Voltage influence				Inside+/-15%rated supply voltagerange,at rated supply voltage value
Protection sturcture				IP65
Material				Nickel plated brass(ABS) Detection surface(lens)PMMA

FAQ
We sincerely welcome agents from all over the world

Q: What certification do you get?
A: We have CE, RoHS, etc.

Q: Do you provide guarantee for the goods?
A: Yes, and all goods are offered 1 year quality guarantee.

Q: Are OEM & ODM available?
A: Yes, we accept OEM and ODM.

Q: How to pay?
A: T/T and west union are acceptable.

Q: What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, 5 to 10 working days after payment.

Q: What about the package?
A: Standard export package (paper carton) for shipment, or package as you need.
