Photoelectric Sensor Switch with CE and FCC

Name: Photoelectric Sensor Switch with CE and FCC
Brand: all-electronics-online.com
SKU: 768536105
Availability: InStock
Rating: 4.6 (41 reviews)

Price:	US $ 20-30/Piece
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	WS-210
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Input:	AC/DC12-24V
Usage:	Position Sensor
Theory:	Infrared Sensor
Output:	Switching Sensor
Technology:	Through Beam Infrared Sensor

Product Description

WS-210 is a good designed photoelectric sensor switch for automatic door opener safety protection.

(Our safety beam sensor for automati door and the Safety Sensor head is compatible with BEA sensor, and all parts can do mutual replacement with BEA microcell safety beam sensor )
WS-210-N is a miniature photoelectric infrared switch safety thru-beam sensor designed for automatic door control and is also similarly suited for other applications such as garage doors, gate operators, etc. As a safety or primary control device where a narrow field of detection is required.

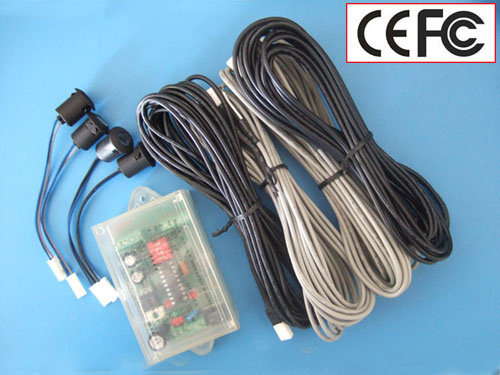

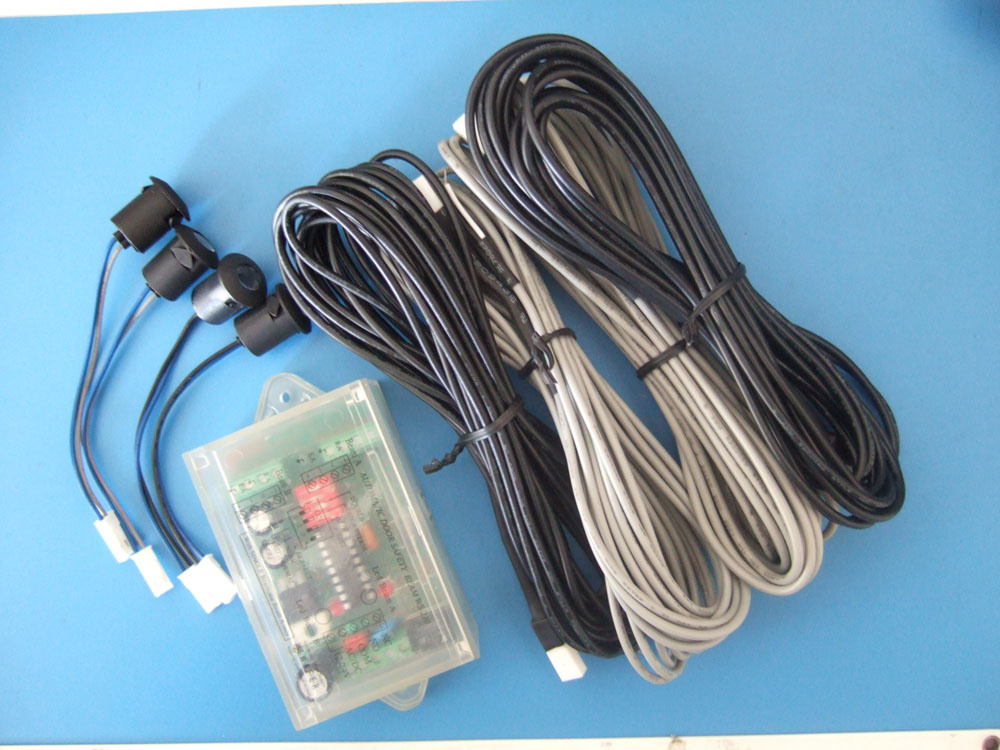

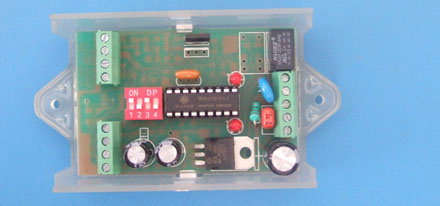

Each set consists of a controller, equipped with one or two pairs of emitter/detector sensor.
Specifications:

Power input	AC/DC12-24V
Working current	60mA
Technology	photoelectric switch infrared through beam
Sensing distance	6 meter

Main Features:
1. Miniature sensor head & compact controller and Installation flexibility for unlimited applications.
2. Single or double Microcells available
3. Sensor head can be separated from shielded wire at the plugs for easy installation.
4. Available with short or long cables
5. Microprocessed active infrared
6. Low power consumption.
7. 12V-24V AC/DC Univeral power input.
Optional model:

WS-210-S	Single beam sensor switch
WS-210-D	Double beam sensor switch

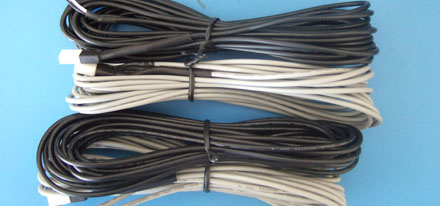

Sensor cables:
