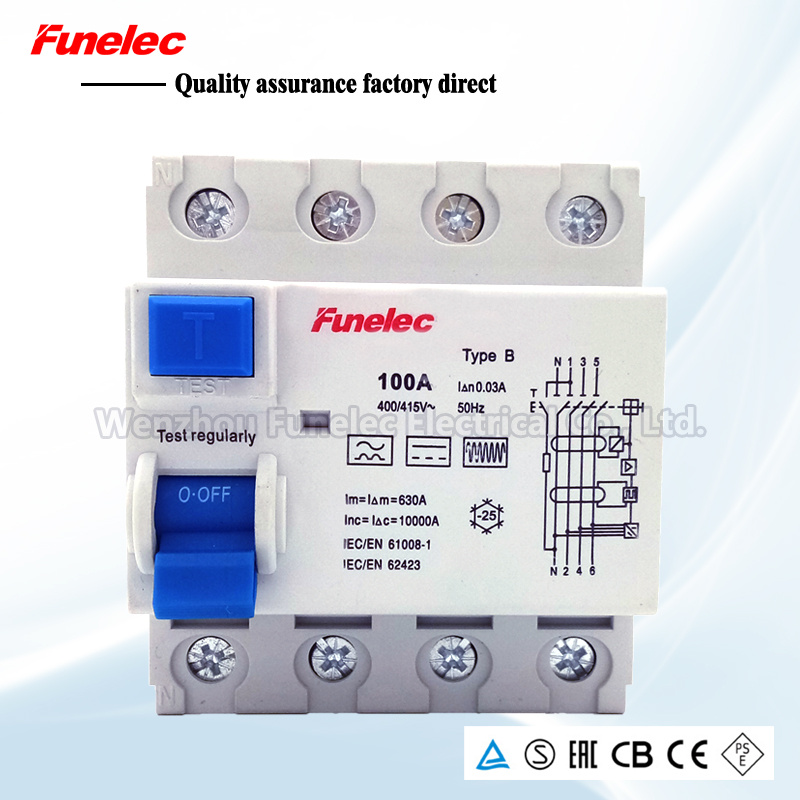

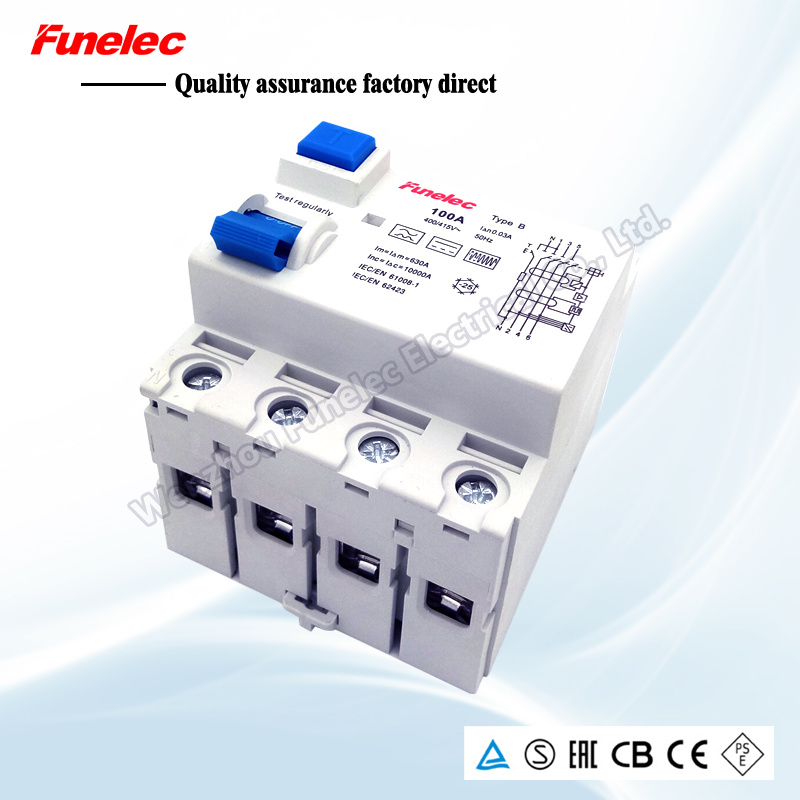

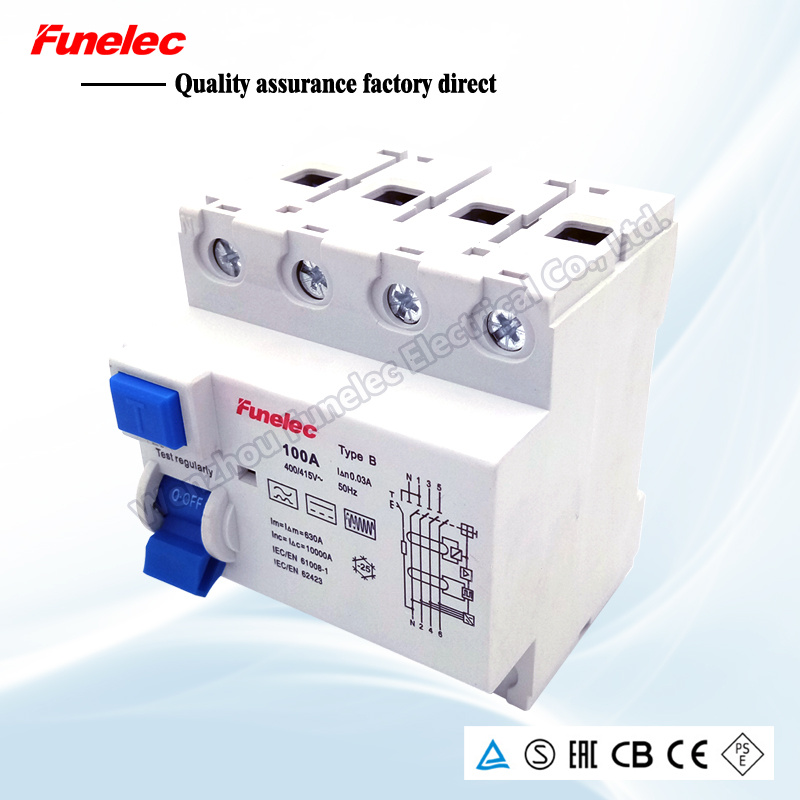

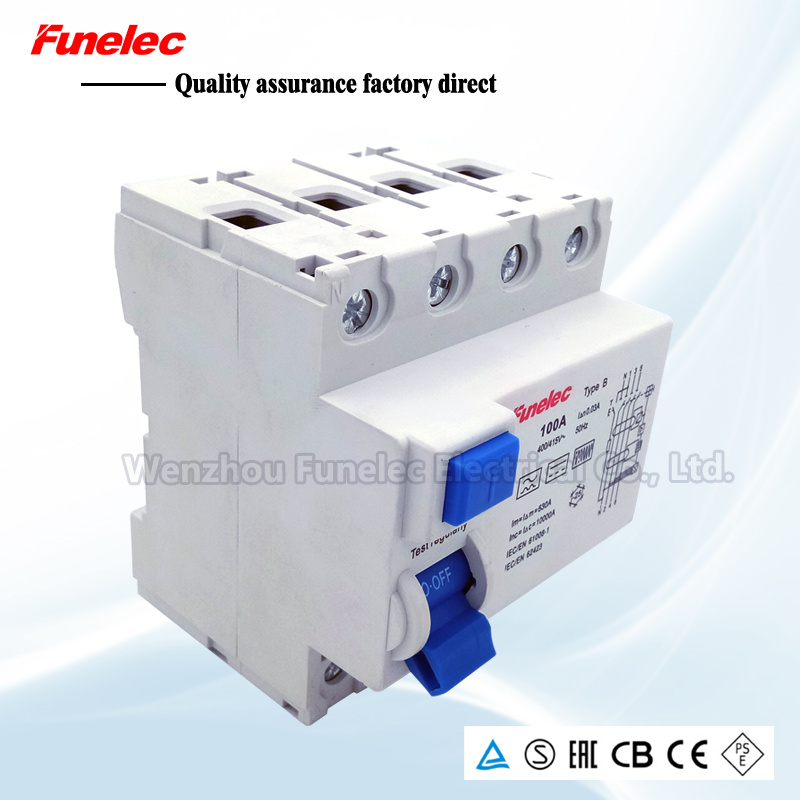

Photovoltaic Inverter Leakage Protector Type B Protector
| Price: |
Negotiable/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
FNL10-100 |
| Standard: |
IEC/En 61008-1+Ec/En62423I |
| Tripping: |
Instantaneous |
| Rated Voltage Un: |
240V/415V,50Hz/60Hz |
| Rated Current: |
25A,40A,63A,80A,100A |
| Rated Residual Operating Current: |
30mA |
| Wave Form: |
B Type |
| Rated Insulation Voltage Ui: |
4kv |
| Rated Short Circuit Strength Im: |
10ka |
| Electro-Mechanical Endurance: |
4000 Operating Cycles |
| Degree Of Protection: |
IP20 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Structure: |
ELCB |
| Poles Number: |
4 |
| Certification: |
CCC |
Product Description
With the improvement of our living standards and the development of science and technology, our demand for electrical and electronic products is increasing. Some of the electrical power equipment photovoltaic inverter, HVAC speed controller, UPS, medical equipment, car charging pile, etc., will produce a standard 50Hz leakage, smooth DC and high frequency AC power, etc., these circuits The fault is common type A and type AC leakage circuit breakers can not be detected. FUNI's product FNL10-100 is developed to solve these circuit problems.
B-type leakage circuit breakers are based on IEC / EN61008-1 + IEC / EN62423 R & D and production. In addition to the conventional AC-type circuit protection, the B-type residual current circuit breakers can also detect DC leakage, high-frequency AC leakage as described above. Therefore, the product is called "general-purpose current-sensing leakage", and therefore is the widest range of applications, can also be used in very harsh and strict environment. | Item | RCD-Type B |
| Tripping | Instantaneous |
| Pole | 2P,4P |
| Rated making and breaking capacity: | Rated voltage: 240/415V AC |
| Rated frequency: | 50/60Hz |
| Rated conditional short-circuit current Inc | 10KA |
| Tripping duration | instantaneous tripping 0.1s |
| Electro-mechanical endurance | More than 4000 cycles |
| Standard | IEC / EN61008-1 + IEC / EN62423 |
| Rated current(A) | 16,25,32,40,63,80,100 |
| Installation | 35MM DIN RAIL |
| Rated residual operating current | 30mA |
| Wave form | Type |
| Rated insulation voltage Ui | 4KV |
| Degree of protection | IP 20 |
| Tripping temperature | -25ºC+40ºC |
Packaging & Shinpping:
1.Standard export box package
2.Delivery Time: 10-15 days for batch goods.
4.Shipment port:SHANGHAI/NINGBO
5.By Air or by Sea for batch goods,Airport/ Port receiving;
6.Customers specifying freight forwarders or negotiable shipping methods!
Our Services1.One to one service,Feedback within 24 hours
2.Design for special packing, Products printing and logo OEM
3.Find the solution for any problems activelyFAQ
Q: If I'm interested in your RCCB when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Your RCCB seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!
A: Our RCCB are high quality customized.I think compare the quality first and then compare the price is the best way.
Q:Can I get a sample before the order because I really don't how is your RCCB quality?
A:Of course!We also think sample order is the best way to build the trust.Please send the enquiry to us and get the sample!
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.
WenZhou Funelec Electrical Co., Ltd., which specializes in manufacturing series of breakers, is a scientific enterprise integrating with scientific research, manufacture, processing and trading business. It has 300 employees with an area of more than 3000 square meter.
The main products in our company are Miniature Circuit Breaker, Residual Current Circuit Breaker, isolator. It consists of 9 series of products with over 60 types. Our products apply into high end of market in the world. With the safe product certificate of EU-CE, Sweden S, Finland F1, Poland B, Argentina IRAM&CB and the certificate of China CCC, ISO9001 International Quality Management System, the qualification of products reaches advanced world level, and the quality is accepted by high end of market. Meanwhile, we have our own intellectual rights for breakers and leakage breakers and have advanced testing and assembly equipment and exquisite manufacture techniques.
It covers worldwide markets, among them European as a leading market with many customers from top 500 enterprises. WenZhou Funelec Electrical Co., Ltd.
