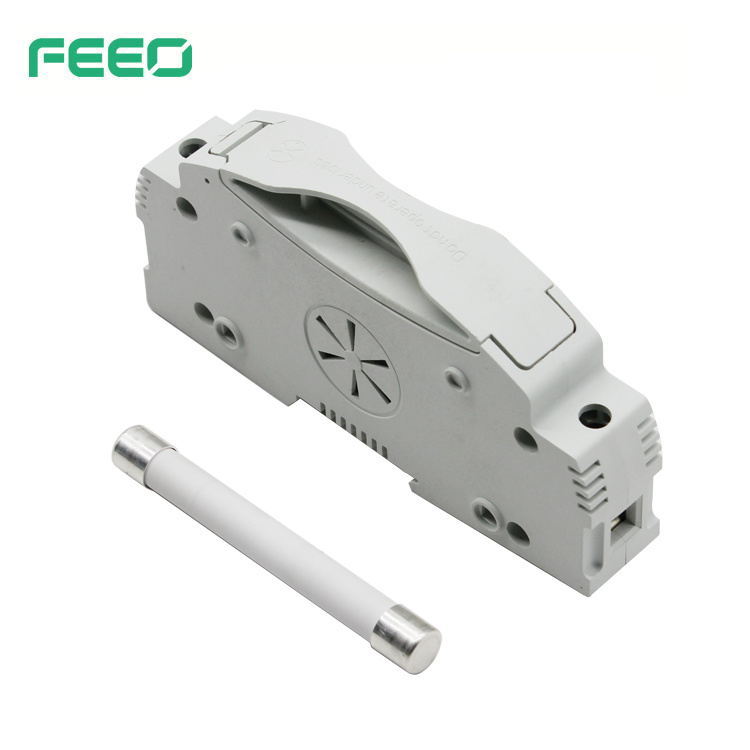

Photovoltaic Solar 1500V DC Fuse Holder

Name: Photovoltaic Solar 1500V DC Fuse Holder
Brand: all-electronics-online.com
SKU: 734080622
Availability: InStock
Rating: 4.5 (107 reviews)

Price:	US $ 5-7.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FDSH-20
Name:	DC Fuse Holder
Pole:	1p
Rated Current:	1-30A
Rated Voltage:	1500VDC
Certificate:	Ce
Color:	White
Frequency:	50Hz
Material:	Plastic Copper
Operating Temperature:	-30 to + 70
Mechanical Life:	10000
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	Low Voltage
Standard:	Ce ISO9001

Product Description

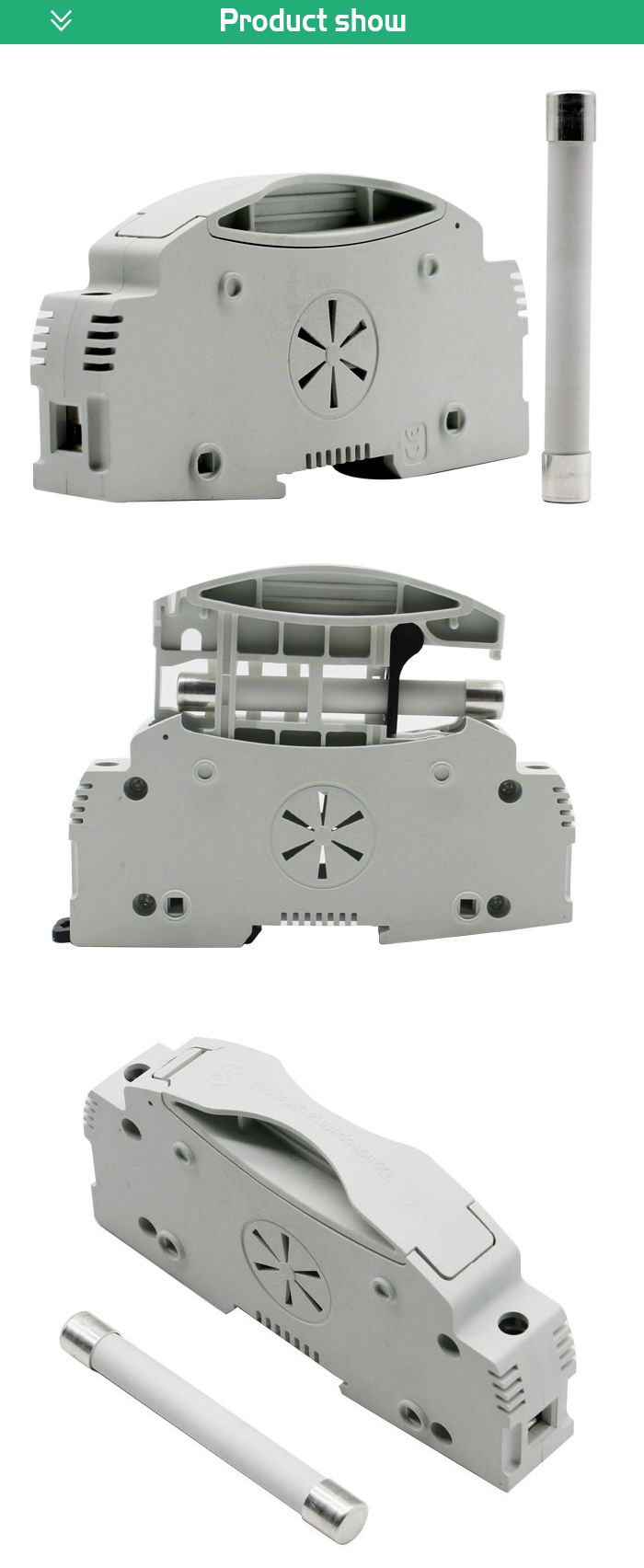

Photovoltaic Solar 1500v DC Fuse Holder

Product Description
DC Fuse Holder Application:

A range of 10x85mm PV fuses specifically designed for protecting and isolating photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted PV systems (reverse current, multi-array fault).
Available in four mounting styles for application flexibility.
DC Fuse Holder Parameters:

Code	FDSH-20
Name	FUSE	FUSE HOLDER
Pole	1P	1P
Voltage	≤1500VDC
Current	1A,2A,3A,4A,5A,6A,8A,10A,12A,15A,20A,25A,30A
Biggest block ability	20KA
Standard	IEC/EN60269
Commection(mm)	2.5-10
Power consumption(W)	3.5
Working Temperature	"-30°"to +70°
Protection Degree	IP20
Dimension(W)X(H)X(D)	10X85	21X68X130
Installation	35MM DIN RAIL
Installation Altitude	≤2000M

Packaging & Shipping
DC Fuse Holder Package:
Standard export carton packing

DC Fuse Holder Delivery Time:

3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.

DC Fuse Holder Shipping:

1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!

Company Information

YUEQING FEEO ELECTRIC CO.,LTD.

is one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR, MC4.

FAQ

Q: If I'm interested in your DC Fuse Holder when I can receive your quotation and detail information after send the enquiry?

A:All your enquiry will be replied in 24hours.

Q:Can I get a sample before the order because I really don't how is yourDC Fuse Holder quality?

A:Of course!We also think sample order is the best way to build the trust.And in our company we offer free sample service!Please send the enquiry to us and get the free sample!

Q:How's the delivery?Because I really need them is urgently?

A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.

Q:How's the warranty period for your DC Fuse Holder?

A:We offer one year warranty for our customer.
