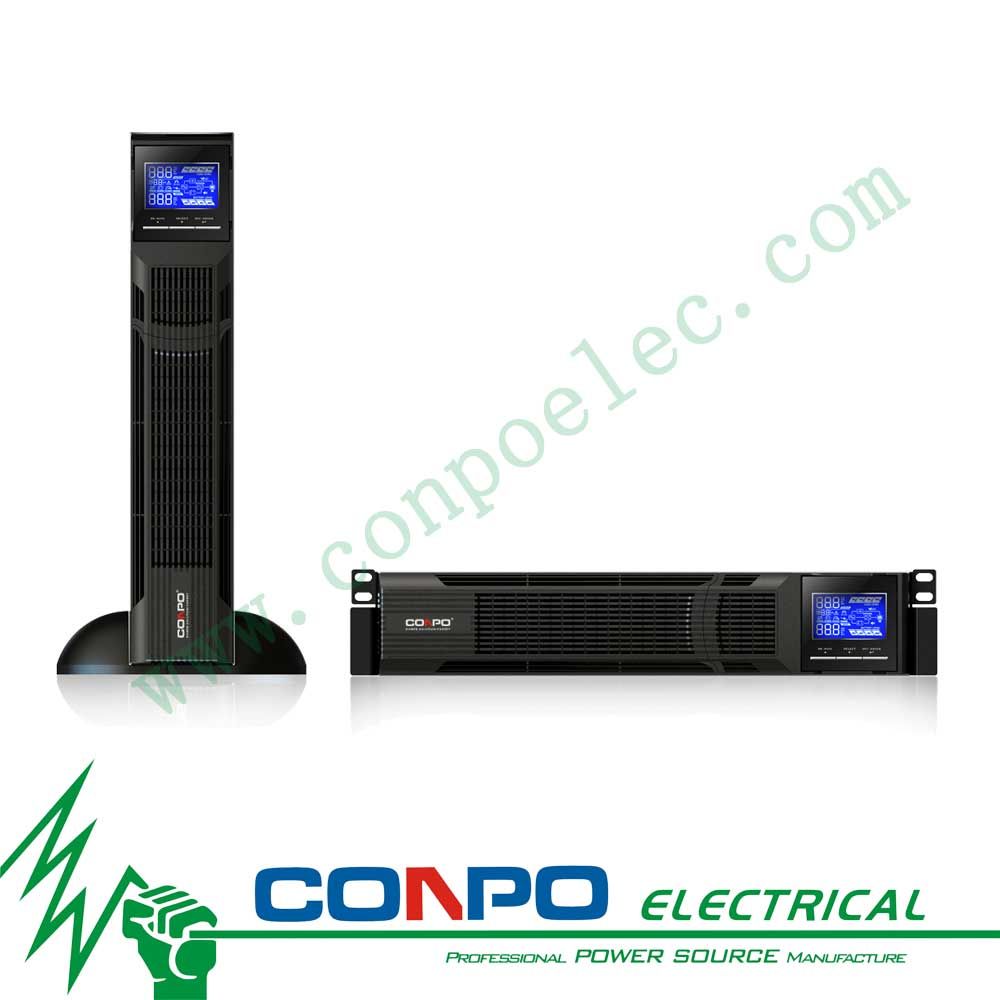

Phr1101b 1000va/800W Rackmount UPS (with battery inside)
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
PHR1101B(with battery inside) |
| Phase: |
Single Phase |
| Type: |
Rackmount Online Hf UPS |
| Protection: |
Full Protections |
| Application: |
Industrial/Medical/Office/Army/Security Area etc. |
| Classification: |
Mercury Series Rack UPS |
| Brand: |
Conpo |
Product Description
System overviewMercury series PHR High Frequency Rack mount UPS provides Rack/Tower form factor to fit diverse environment. Ideal for medium-density power protection demand, Despite its compact footprint, this UPS incorporates internal battery packs which can be accessed via the front panel for maintenance checks and replacement without removing the UPS from its rack mounting. The LCD display panel can be easily shifted by pressing buttons to suit the installation format, vertically stand or flatly rack mount. Besides, IT personnel can manage equipment well from learning remaining backup time information via LCD display. With true double-conversion design, Mercury series provides powerful and overall protection to your sensitive devices. It can accept wider input voltage for harsh environment. It's perfect protection for your precious servers and workstations. Range of applicationsOffice Automation, Production Equipment, Electronic & Telecom, Medical & Education, Data Center, Industrial Automatic Control, Finance & Securities, Broadcasting & Transportation Main Features1.True double-conversion online UPS A true double conversion UPS will provide clean, high level quality power to fully protect mission-critical devices such as sensitive networks, small computer centers, servers, telecom applications, as well as for industrial applications. 2. Pure sine wave output With pure sine wave output, guarantees compatibility for all kinds of loads. Its perfect power protection for versatile applications such as networking, telecom and other mission-critical applications. 3. Wide input voltage range (110V-300V) Mercury series can still provide stable power to connected devices under unstable power environments. 4. 50/60 Hz Frequency Converter Mode Lock output frequency at 50Hz or 60Hz to suit power sensitive equipments. 5. Output power factor 0.8 Compared to the online UPS in the current market, Mercury series UPS provides better output power factor up to 0.8. It offers higher performance and efficiency for critical applications. 6.ECO mode operation for energy saving Offers efficiency as high as 97% to cut energy usage &cost. UPS power application via static bypass, timely returning to online double conversion when the need arises. 7. Emergency Power Off (EPO) Function This feature can secure the personnel and equipment in case of fires or other emergencies.8. USB+RS232+RJ45+SNMP multiple communication for 1-3K modelsThis feature allows either USB,RS232 or Rj45 communication port to work with SNMP interface simultaneously. Unique Design 1.Humanized panel display and turnable LCD screen Front panel with LCD screen, Intuitive display by way of figures and graphics etc, LCD screen can rotate freely, and LCD display can be consistent for both installation of Tower type or Rack mounted type UPS.2.Rack/Tower Type DesignThe installation mode of Racks and tower ups can be arbitrary switching, The hangers for racks and the stents for tower ups are random standard required, easy for choosing by users. Monitoring Software 1.UPS can be connected to the computer via USB or Rs232 interface. So it can be realized LAN monitoring single or many sets of UPS, it also can monitor the other ups which connected to the computer via LAN. 2. UPS monitoring software has more than 10 kinds of language for choice. 3. Humanized operation interface, which is powerful and can shows the battery voltage, frequency, load, temperature and other data by real-time monitoring through the charts. 4. Alarm of different power incident could be set by radio, mobile phone text messages, e-mails and SNMP etc. Specifications| Mercury series Rack mount UPS |
| MODEL | PHR1101B | PHR1101 | PHR1102 | PHR1103 | PHR1106 | PHR1110 |
| CAPACITY | 1000VA /
800W | 2000VA / 1600W | 3000VA / 2400W | 6000VA/
4800W | 10000VA/
8000W |
| Battery Voltage | 36V | 72V | 192V |
| Size, D X W X H (mm) | 380×438×88 | 480×438×88 | 580x438x88 | 668x438x88 |
| Net Weight (kg) | 13 | 6.5 | 8.3 | 10 | 15 | 18 |
| INPUT |
| Voltage Range | Low Line Transfer | 160VAC/140VAC/120VAC/110VAC±5% | 110VAC ± 3% at 50% load; 176VAC ± 3% at 100% Load |
| Low Line Comeback | 168VAC/148VAC/128VAC/118VAC ± 5 % 0) | Low Line Loss Voltage +10V |
| High Line Transfer | 300 VAC ± 5 % | 300VAC ± 3% |
| High Line Comeback | 290 VAC ± 5 % | High Line Loss Voltage-10V |
| Frequency Range | 40Hz ~ 70 Hz | 46Hz~54Hz@50Hz or 56Hz~64Hz@60Hz |
| Phase | Single phase with ground |
| Power Factor | >= 0.99 @ nominal voltage (input voltage) | >= 0.99 at 100% load |
| OUTPUT |
| Output voltage | 200/208/220/230/240VAC | 208/220/230/240VAC |
| AC Voltage Regulation | ± 1% (Batt. Mode) | ± 1% |
Frequency Range
(Synchronized Range) | 47Hz ~ 53 Hz @ 50Hz
57Hz ~ 63 Hz @ 60Hz | 46Hz ~ 54 Hz @ 50Hz
56Hz ~ 64 Hz @ 60Hz |
Frequency Range
(Battery Mode) | 50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz | 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz |
| Overload | 100%~110%:audible warning
110%~130%: UPS shuts down in 60 seconds at battery mode or transfer to bypass when the utility is normal
>130%:UPS shuts down immediately at battery mode or transfer to bypass mode when the utility is normal | AC mode :100%~110%: 10min,110%~130%: 1min,>130% : 1sec
Battery mode :100%~110%: 30sec,110%~130%: 10sec,>130%:1sec |
| Current Crest Ratio | 3:1 max |
| Harmonic Distortion | <= 3 % @ 100% Linear Load; <= 6 % @ 100% Non-linear Load |
| Transfer Time | AC Mode to Battery Mode | 0 ms |
| Inverter to Bypass | 4 ms | 6 ms |
| Waveform (Batter Mode) | Pure Sine Wave |
| EFFICIENCY |
| AC Mode | 87% | 90% | 89% | 90% |
| Battery Mode | 83% | 87% | 89% | 88% | 89% |
| BATTERY | | |
| Battery Type | 12 V / 7 AH | Depending on applications |
| Battery Numbers | 3 | Depending on applications |
| Recharge Time | 4 hours recover to 90% capacity | Depending on applications |
| Charging Current | 1.0 A (max.) | 1.0A/2.0A/4.0A/6.0 A ±10% |
| Charging Voltage | 41.0VDC ± 1% | 82.1 VDC ±1% | 218.4 VDC ±1% |
| ENVIRONMENT |
| Operation Temperature | 0 ~ 40°C (battery life cycle will be shorten when temperature is above 25°C) |
| Operation Humidity | <95 % and non-condensing |
| Operation Altitude | <1000m |
| Noise Level | Less than 50dBA @ 1 Meter | Less than 55dB @ 1 Meter | Less than 58dB @ 1 Meter |
| MANAGEMENT |
| Smart RS-232 or USB | Windows® 2000/2003/XP/Vista/2008,Windows® 7/8,Linux,Unix,MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
| Remarks: | Products specifications are subject to change without notice! |
