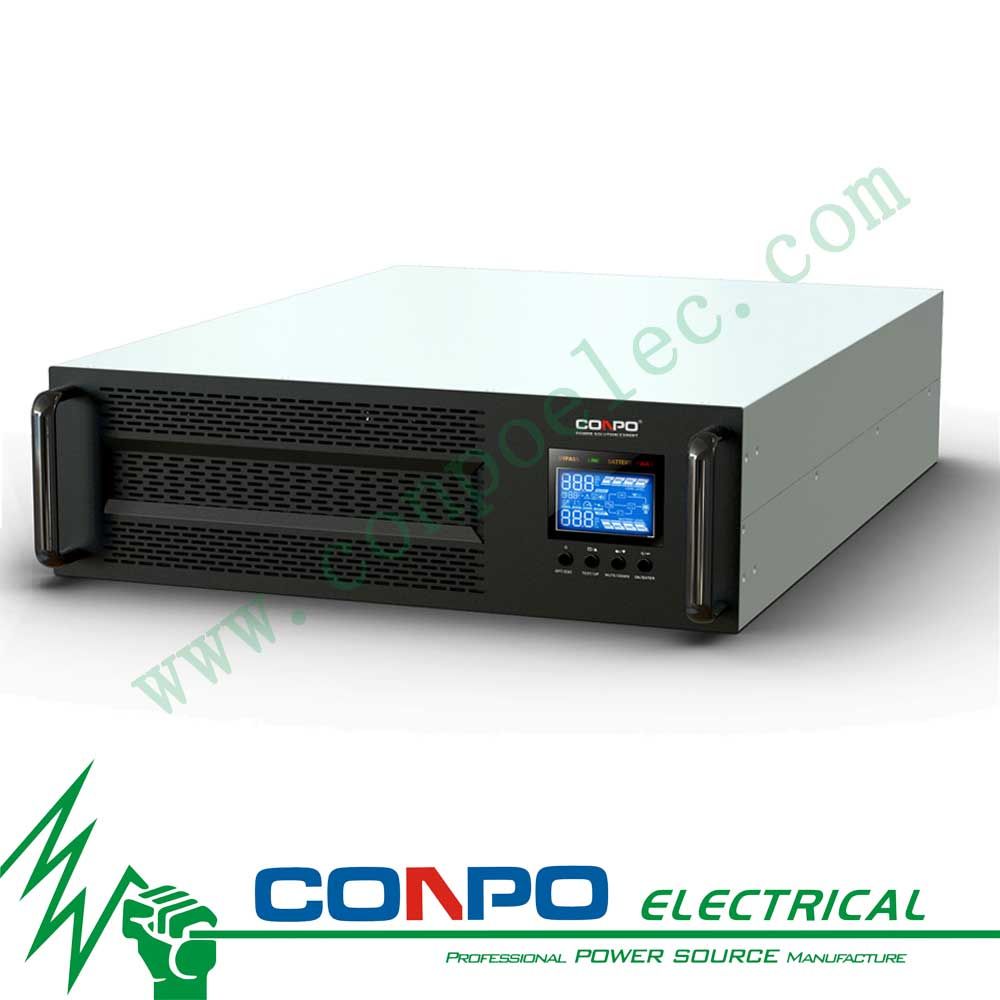

Phr3110~3120 Rackmount UPS (3: 1)
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
PHR3110~3120 |
| Phase: |
Three Phase in/Single Phase out |
| Type: |
Rackmount Online Hf UPS |
| Protection: |
Full Protections |
| Application: |
Industrial/Medical/Office/Army/Security Area etc. |
| Classification: |
Mercury Series Rack UPS |
| Brand: |
Conpo |
Product Description
System overviewMercury series 3P/1P 10KVA-20KVA High Frequency Rack UPS is the high density version of double-conversion online UPS. With an output power factor 0.9 and 91% operating efficiency in online mode, it's suitable for powering a wide range of devices such as servers, data center, industrial processes, telecommunication and security system. Besides, it is provided with input power factor correction function that helps to avoid any damage to the mains and also facilitate the connection of generator. Range of applicationsData Processing Center, Office Automation, Telecom System , Network Rooms , Education System , National Defense System, Medical Equipment , Financial System, Securities System
Function Features
• True double-conversion• DSP technology guarantees high performance• Output power factor 0.8• Wide input voltage range (110-300 VAC)• Built-in phase auto adapt function simplifies wire installation• 50Hz/60Hz frequency converter mode• Eco mode operation for energy saving (ECO)• Emergency power off function (EPO)• SNMP+USB+RS-232 multiple communications• 3-stage extendable charging design for optimized battery performance• Optional N+X parallel redundancy Monitoring Software • UPS can be connected to the computer via USB or Rs232 interface. So it can be realized LAN monitoring single or many sets of UPS, it also can monitor the other ups which connected to the computer via LAN. • UPS monitoring software has more than 10 kinds of language for choice. • Humanized operation interface, which is powerful and can shows the battery voltage, frequency, load, temperature and other data by real-time monitoring through the charts. • Alarm of different power incident could be set by radio, mobile phone text messages, e-mails and SNMP etc.Specifications| High Frequency Rack UPS(Three- ins and Single out) |
| MODEL | PHR3110 | PHR3115 | PHR3120 |
| PHR3110B | PHR3115B | PHR3120B |
| CAPACITY | 10000 VA/8000 W | 15000 VA/12000 W | 20000 VA/16000 W |
| INPUT |
| Nominal Voltage | 3 x 400 VAC (3Ph+N) |
| Voltage Range | 305-478 VAC (3-phase) at 100% load ; 190-520 VAC (3-phase) at 50% load |
| Frequency Range | 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz |
| Power Factor | >= 0.99 @ 100% Load |
| THDi | < 6% @ 100% Load |
| OUTPUT |
| Output voltage | 208/220/230/240VAC |
| AC Voltage Regulation | ± 1% |
| Frequency Range(Synchronized Range) | 46~54Hz or 56~64Hz |
| Frequency Range (Batter Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 |
| Harmonic Distortion | <= 2 % THD (Linear Load) ; <= 5 % THD (Non-linear Load) |
| Transfer Time | AC Mode to Batter Mode | 0 |
| Inverter to Bypass | 0 |
| Waveform (Batter Mode) | Pure Sine Wave |
| EFFICIENCY |
| AC mode | 89% |
| Battery Mode | 86% | 88% | 87% |
| BATTERY |
| Standard Model | Battery Type | 12V/ 9 Ah |
| Numbers | 20 pcs(18 ~ 20 pcs adjustable) | 20 pcs x 2 strings (18 ~ 20 pcs adjustable) |
| Typical Recharge Time | 9 hours recover to 90% capacity |
| Charging Current (Max.) | 1A | 2A |
| Charging Voltage | 273VDC ± 1% (Based on 20pcs batteries) |
| Long-run Model | Battery Type | Depending on the capacity of external batteries |
| Numbers |
| Charging Current (Max.) | 4A |
| Charging Voltage | 273 VDC ± 1% (Based on 20pcs batteries) |
| INDICATORS |
| LCD Display | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions |
| ALARM |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continously sounding |
| PHYSICAL |
| Standard Model | Dimension,DXWXH(mm) | UPS unit:668 x 438 x 133(3U)
Battery pack: 580 x 438 x 133(3U) | UPS unit:668 x 438 x 266(6U)
Battery pack: 580 x 438 x 133(3U) x 2PCS |
| Net Weight (kgs) | UPS unit: 22
Battery pack: 63 | UPS unit: 45
Battery pack: 63 x 2PCS |
| Long-run Model | Dimension, DXWXH(mm) | 668 x 438 x 133(3U) | 668 x 438 x 266(6U) |
| Net Weight (kgs) | 22 | 45 |
| ENVIRONMENT |
| Humidity | 0-95 % RH @ 0- 40°C (Non-condensing) |
| Noise Level | Less than 58dB @ 1 Meter | Less than 60dB @ 1 Meter |
| MANAGEMENT |
| Smart RS-232 or USB | Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8, Linux, Unix, and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
| Remarks: | Products specifications are subject to change without notice! |
