| Prod Model: |
PHT-1KVA~10KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase: |
Single Phase |
| Type: |
On-line |
| Brand: |
Conpo |
| Application: |
Provide Power to Protect Mission-Critical Devices |
| Classification: |

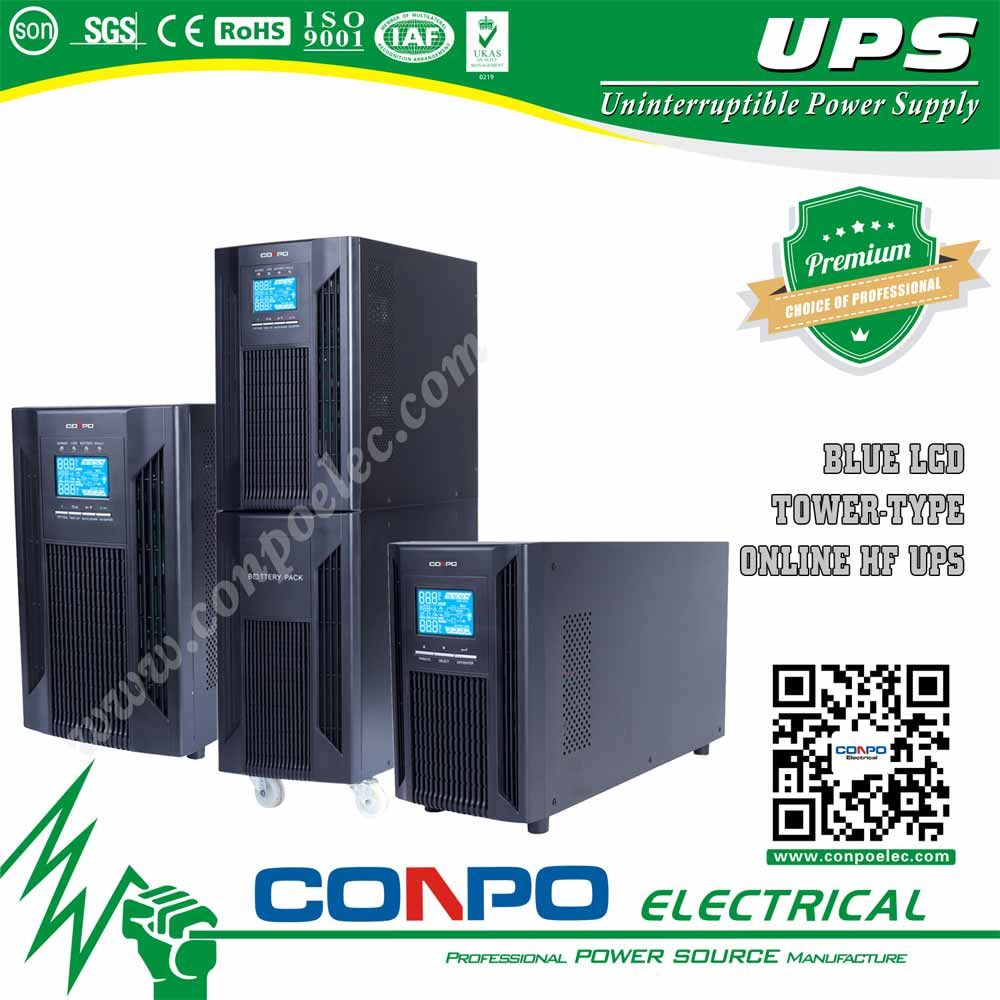

1phase Online Hf UPS, with Blue LCD Display |
| Output Capacity: |
1000va/800W |
| Equipment Mode: |
Online UPS |
| Protection: |
with Full Protections for Loading |
Product Description
1. Features:
1). True double-conversion online UPS
A true double conversion UPS will provide clean, high level quality power to fully protect mission-critical devices such as sensitive networks, small computer centers, servers, telecom applications, as well as for industrial applications.
2). Output power factor 0.8
Compared to the online UPS in the current market, Venus series UPS provides better output power factor up to 0.8. It offers higher performance and efficiency for critical applications.
3). Wide input voltage range(110V-300V)
Venus series can still provide stable power to connected devices under unstable power environments.
4). 50/60Hz Frequency Converter Mode
Lock output frequency at 50Hz or 60Hz to suit power sensitive equipments.
5). ECO mode operation for energy saving
Offers efficiency as high as 97% to cut energy usage 7 cost UPS power application via static bypass, timely returning to online double conversion when the need arises.
6). Emergency Power Off(EPO) Function
This feature can secure the personnel and equipment in case of fires or other emergencies.
7). USB+RS232+RJ45+SNMP
This feature allows either USB, RS232 or RJ45 communication port to work with SNMP interface
simultaneously.
8). DSP technology applied for 6-10K models
A DSP controller provides an improved and cost-effective solution with high performance.
2. Specifications:
3. Packing Details:
| Model | Battery
Voltage | UPS
Machine Size
(mm) | Packing Size
(mm) | Battery
inside | Weight
(kg) | Input mode | Output mode |
|
Power
Line | Connection
Terminal | Socket | Connection
Terminal |
|
|
| N.w. | G.w. |
|
|
|
|
| Tower Online HF UPS |
|
1KVA
(1/1) | Long-acting UPS machine | PHT1101 | 36V | 282 x 145 x 220 | 360 x 230 x 325 | Without battery | 4.1 | 5.19 | √ | X | √ | X |
|
| Standard UPS machine | PHT1101B | 36V | 397 x 145 x 220 | 472 x 230 x 325 | 12V7AH x 3pcs | 11.5 | 12.6 | √ | X | √ | X |
|
2KVA
(1/1) | Long-acting UPS machine | PHT1102 | 72V | 397 x 145 x 220 | 472 x 230 x 325 | Without battery | 6.8 | 8.7 | √ | X | √ | X |
|
| Standard UPS machine | PHT1102B | 72V | 419 x 190 x 318 | 560 x 320 x 460 | 12V7AH x 6pcs | 23.4 | 25.5 | √ | X | √ | X |
|
3KVA
(1/1) | Long-acting UPS machine | PHT1103 | 72V | 397 x 145 x 220 | 472 x 230 x 325 | Without battery | 7.4 | 9.35 | √ | X | √ | X |
|
| Standard UPS machine | PHT1103B | 72V | 419 x 190 x 318 | 560 x 320 x 460 | 12V9AH x 6pcs | 25.9 | 28.2 | √ | X | √ | X |
|
6KVA
(1/1) | Long-acting UPS machine | PHT1106 | 192V | 369 x 190 x 318 | 491 x 290 x 460 | Without battery | 12.5 | 15 | X | √ | X | √ |
|
| Standard UPS machine | PHT1106B | 192V | 369 x 190 x 688 | 485 x 280 x 785 | 12V9AH x 16pcs | 52.5 | 58 | X | √ | X | √ |
|
10KVA
(1/1) | Long-acting UPS machine | PHT1110 | 192V | 442 x 190 x 318 | 570 x 320 x 460 | Without battery | 16.7 | 19.5 | X | √ | X | √ |
|
| Standard UPS machine | PHT1110B | 192V | 442 x 190 x 688 | 570 x 310 x 785 | 12V7AH x 16pcs | 76.5 | 82 | X | √ | X | √ |
|
10KVA
(3/1) | Long-acting UPS machine | PHT3110 | 240V | 592 x 250 x 576 | 690 x 370 x 690 | Without battery | 29.3 | 32.8 | X | √ | X | √ |
|
| Standard UPS machine | PHT3110B | 240V | 592 x 250 x 576 | 690 x 370 x 690 | 12V9AH x 20pcs | 83.6 | 92.3 | X | √ | X | √ |
|
15KVA
(3/1) | Long-acting UPS machine | PHT3115 | 240V | 592 x 250 x 576 | 690 x 370 x 690 | Without battery | 44 | 52 | X | √ | X | √ |
|
| Standard UPS machine | PHT3115B | 240V | 815 x 250 x 826 | 900 x 370 x 900 | 12V9AH x 40pcs | 164 | 182 | X | √ | X | √ |
|
20KVA
(3/1) | Long-acting UPS machine | PHT3120 | 240V | 592 x 250 x 576 | 690 x 370 x 690 | Without battery | 44 | 52 | X | √ | X | √ |
|
| Standard UPS machine | PHT3120B | 240V | 815 x 250 x 826 | 900 x 370 x 900 | 12V9AH x 40pcs | 164 | 182 | X | √ | X | √ |
|
10KVA
(3/3) | Long-acting UPS machine | PHT3310 | 240V | 592 x 250 x 826 | 690 x 370 x 940 | Without battery | 42 | 50 | X | √ | X | √ |
|
| Standard UPS machine | PHT3310B | 240V | 815 x 250 x 826 | 900 x 370 x 900 | 12V9AH x 20pcs | 106 | 132 | X | √ | X | √ |
|
15KVA
(3/3) | Long-acting UPS machine | PHT3315 | 240V | 592 x 250 x 826 | 690 x 370 x 940 | Without battery | 50 | 58 | X | √ | X | √ |
|
| Standard UPS machine | PHT3315B | 240V | 815 x 250 x 826 | 900 x 370 x 900 | 12V9AH x 40pcs | 165 | 191 | X | √ | X | √ |
|
20KVA
(3/3) | Long-acting UPS machine | PHT3320 | 240V | 592 x 250 x 826 | 690 x 370 x 940 | Without battery | 50 | 58 | X | √ | X | √ |
|
| Standard UPS machine | PHT3320B | 240V | 815 x 250 x 826 | 900 x 370 x 900 | 12V9AH x 40pcs | 165 | 191 | X | √ | X | √ |
|
