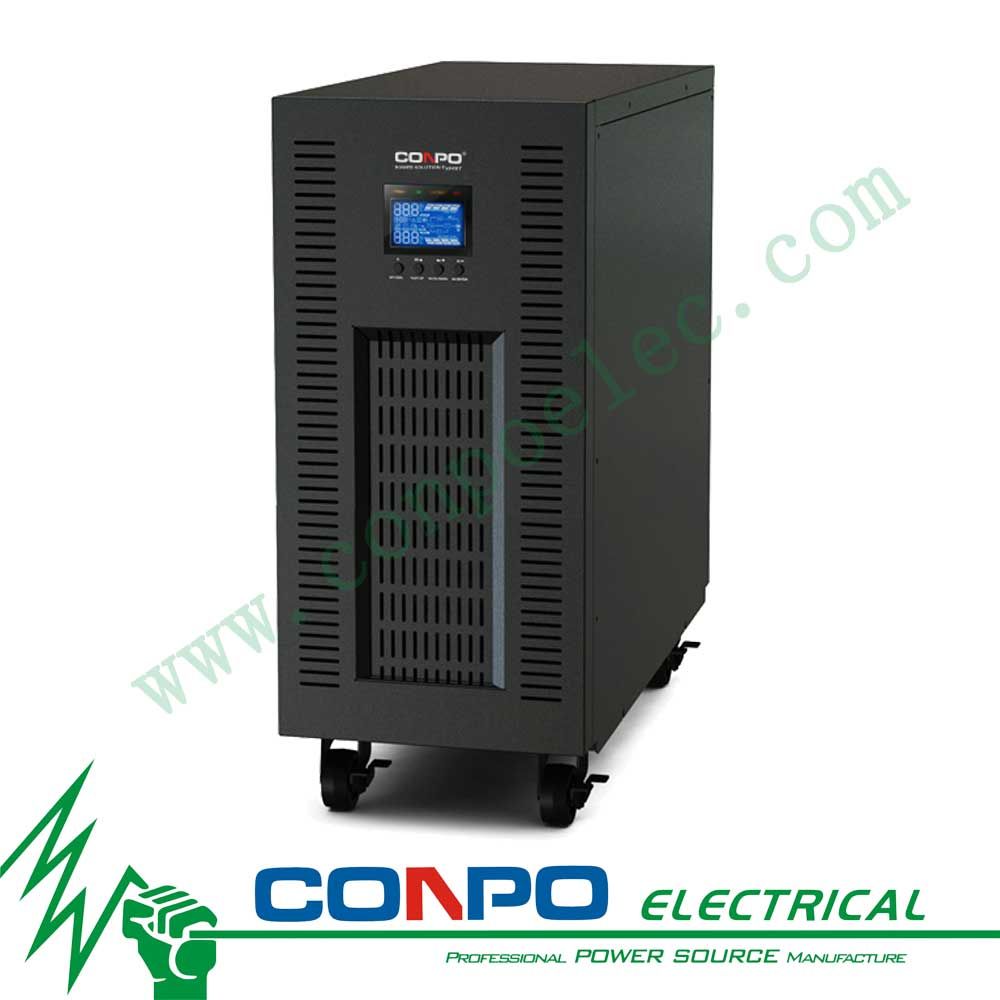

Pht3110 10kVA/8kw Tower Online Hf UPS (3: 1)
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
PHT3110 |
| Phase: |
Three Phase in/Single Phase out |
| Type: |
Tower Online Hf UPS |
| Protection: |
Full Protections |
| Application: |
Bank Security,Office Automation,Medical Equip etc |
| Classification: |
Venus Series Tower Online Hf UPS |
| Brand: |
Conpo |
Product Description
System overviewJupiter PHT series 3P/1P High Frequency UPS is specifically designed for operation in poor power areas. With an output power factor 0.8 and 91% operating efficiency in online mode, it's suitable for powering a wide range of devices such as servers, data center, industrial processes, telecommunication and security system. Besides, it is provided with input power factor correction function that helps to avoid any harm to the mains and also to facilitate the connection of generator. Range of applicationsGovernment Department, Bank Securities, Office Automation, Precision Instrument And Equipment, Server Room, Scientific Research Institutions, Medical Equipment, Industrial Automatic Function Features 1.Online double conversion technology with DSP controlJupiter series is applied online double conversion technology to effectively insulate against network disturbances and enable higher load uptime. A Digital Signal Processor (DSP) control provides an improved solution with high performance. 2.Output power factor 0.8Compared to the online UPS in the current market, Jupiter series(PHT3110~PHT3330) high frequency UPS provides better output power factor up to 0.8. It offers higher performance and efficiency for critical applications.3.ECO mode operation for energy savingOffers efficiency as high as 97% to cut energy usage and cost. UPS power application via static bypass, timely returning to online double conversion when the need arises.4.Emergency power off (EPO) function
This feature can secure the personnel and equipment in case of fires or other emergencies.5.Wide input voltage range(190V-520V)Jupiter series can still provide stable power to connected devices under unstable power environments.6.50/60 Hz Frequency Converter ModeLock output frequency at 50Hz or 60Hz to suit power sensitive equipments. Main Features
• True double-conversion• Output power factor 0.8• Generator compatible• Active power factor correction in all phases• 50Hz/60Hz frequency converter mode• Maintenance bypass available• 3-stage extendable charging design for optimized battery performance• SNMP+USB+RS232 multiple communications Specifications| Jupiter series Tower Online High Frequency UPS (3:1) |
| Model | PHT3110 | PHT3115 | PHT3120 |
| Capacity | 10KVA/8KW | 15KVA/12KW | 20KVA/16KW |
| Phase | 3-phase in / 1-phase out |
| Battery Voltage | 192V |
| Size, D X W X H (mm) | 419X190X318 |
| Net Weight (Kg) | 15 | 17 | 23 |
| Input |
| Input Voltage | 3 x 400 VAC (3-phase+N) |
| Voltage Range | 190-520 VAC (3-phase) @ 50% load ; 305-520 VAC (3-phase) @ 100% load |
| Frequency Range | 46Hz ~ 54 Hz @ 50Hz
56Hz ~ 64 Hz @ 60Hz |
| Power Factor | >= 0.99 @ 100% |
| Output |
| Output Voltage | 208/220/230/240VAC |
| AC Voltage Regulation (Batter Mode) | ± 1% |
Frequency Range
(Synchronized Range) | 46Hz ~ 54 Hz @ 50Hz
56Hz ~ 64 Hz @ 60Hz |
| Frequency Range (Batter Mode) | 50 Hz ± 0.2 Hz or 60Hz ± 0.2 Hz |
| Current Crest Ratio | 3:1 (Max.) |
| Harmonic Distortion | <=3 % THD (Linear Load); <=5 % THD (Non-linear Load) |
| Transfer Time | AC Mode to Batter Mode | 0 ms |
| Inverter to Bypass | 0 ms |
| Waveform (Batter Mode) | Pure Sine Wave |
| Efficiency |
| AC Mode | > 91% | > 89% | > 89% |
| Battery Mode | > 91% | > 88% | > 87% |
| ECO Mode | > 97% | > 97% | > 97% |
| Battery |
| Battery Type | Depending on applications |
| Battery Numbers | 16Pcs |
| Charging Current(Max.) | 2A Default, 1A/2A/4A/6A Selectable |
| Charging Voltage | 218.4 VDC ± 1% | 273 VDC ± 1% |
| Display |
| LCD Display | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, Fault conditions |
| Warning Sound |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continously sounding |
| Environment |
| Temperature and Humidity | 0-90 % RH @ 0- 40°C (Non-condensing) |
| Operation Altitude | <1000m |
| Acoustic Noise Level | Less than 58dB @ 1 Meter | Less than 60dB @ 1 Meter |
| Management |
| Smart RS-232 or USB | Windows® 2000/2003/XP/Vista/2008,Windows® 7/8,Linux,Unix,MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
| Remarks: | Products specifications are subject to change without notice! |
CONPO Power Tech. Co., Ltd specializes in producing Power Source as a member of China Power Supply Society. Since being founded, we has been insisting on the theoretic guideline of "Science & Technology is the first productive force" and holding up brand strategy as the guide, relying on forward understanding about power supply technology, perfect craft and unwearied pursuing to quality, we can show top quality power supply products, and set up fine image in Chinese market and abroad market.
CONPO has the modern workshops and advanced production devices, besides we always introduce technology positively, reform craft continuously, devote to researching and developing Voltage Stabilizer/Voltage Regulator, Uninterruptible Power Supply(UPS), Power Inverter, Solar Panel, Solar Controller, Solar Inverter and Solar Generator, Switching-mode Power Supply(SMPS), Transformer, Frequency Inverter etc. Power and Solar products. In addition, we try to find excellent administrators and technical talents, through years on working hard, we has been improved on the aspect of quality, power supply varieties, producing scale, management mode, so products manufactured by us have reached advanced technical level, they are not only popular with a great of customers in China, but also in foreign countries.
CONPO Products have been approved by Quality Supervision & Inspection(QSI), Insured by PICC, and also have CE, RoHS, UL, CCC certificates. We insist on the policy of developing by quality on the time, and also have passed ISO9001: 2000 Quality Management System Certificate. Relying on rich economic strength, fine production engineering, innovating management mode, we can dare to meet kinds of challenges from China entering WTO that is helpful for establishing reinforced foundation of international business.
We are keeping our business principle for " Approaching the first-class management, Producing the first-class products, Providing the first-class service". All CONPO staffs are working hard and constantly innovate. Honest CONPO are welcome to all users to fighting a better tomorrow hand in hand.
