| Prod Model: |
PLD042-1SCF792PA/B-XXXX |
| Output Power: |
42W |
| Dimming: |
0(0.5)~10V, PWM, External Resistor |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
108~305VAC |
| Pack Sealing Size: |
130.7X40.8X28.5 mm /129X33X28mm |
| Brand: |
Fsp-Powerland |

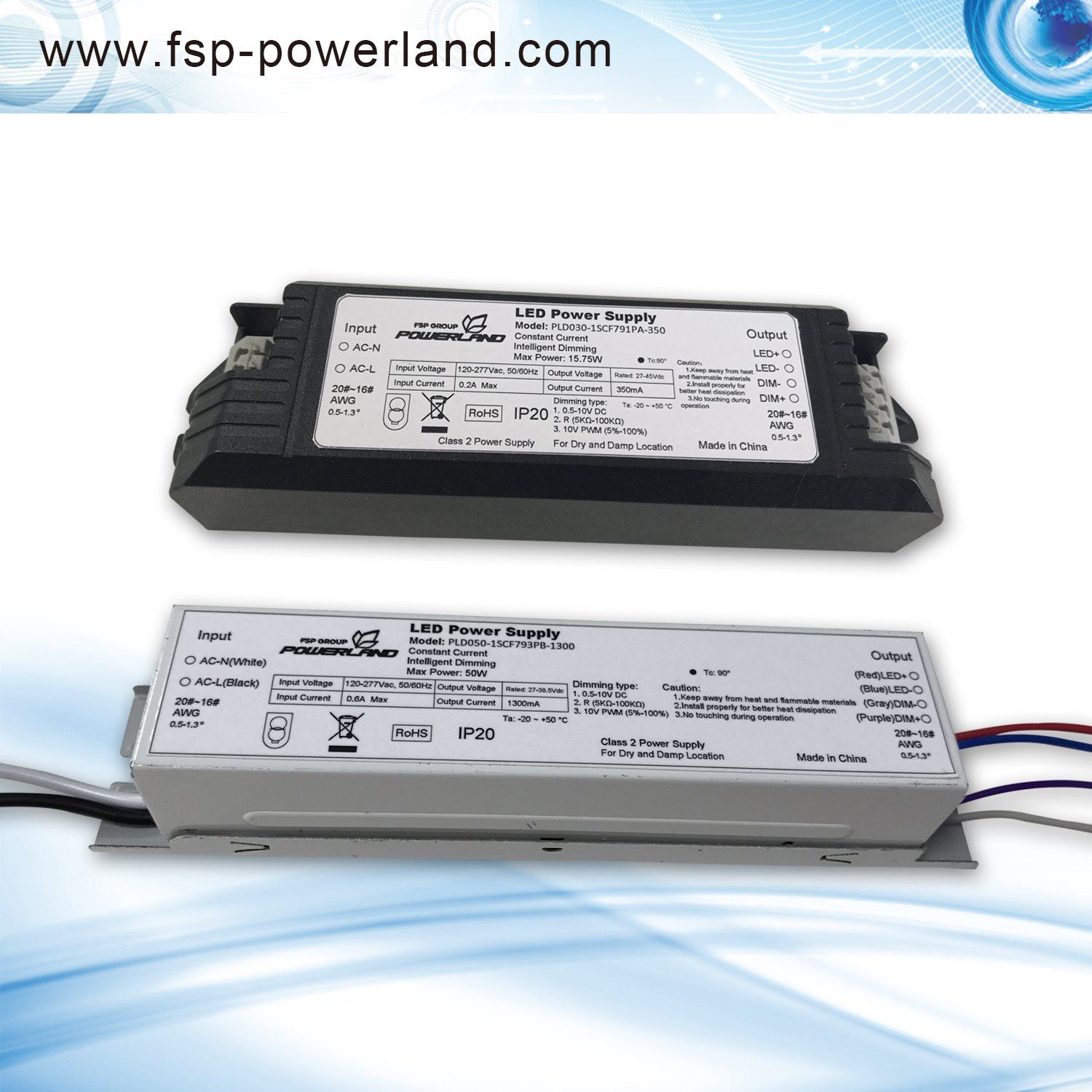

Product Description
Pickle Series 42W Adjustable Constant Current LED Drivers-The most cost-effective and ripple-free drivers with Class P of UL
Powerland's PLD042-1SCF792PA/B-XXX "Pickle" series LED drivers offer flicker-free, adjustable and wide-range dimmable output current with less than 5% current ripple at 108~305Vac universal input.
The output currents of this series are adjustable at 600~1200mA which is set in the factory, and designed for 0(0.5)-10V/PWM/Rset dimming applications.
Applications
Indoor LED lights
LED lights with flexible current settings
Downlights, high bay and low bay lights, spot lights, LED panels
Features
Flicker-free with < 5% current ripple
> 50,000 hours lifetime at 75ºC Tcase
> 5 years warranty at 75ºC Tcase
Constant current output
Output current adjustable
Compatible with 0(0.5)-10V, PWM, external resistor
Universal input voltage: 108~305Vac
Safety according to UL1310 & EN61347-2-13
UL Class 2 Output
EMC according to FCC Part 15 Class A
Lightning, OVP, SCP, OTP & Open Circuit Protection
Electrical Specifications
Model
| PLD042-1SCF792PA-XXXX | PLD042-1SCF792PB-XXXX |
Output Voltage | 27-45V |
Current Adjustable
| Yes ( by factory only) |
Output Current Programmable Rang | 600~1200mA |
Dimming
| 0(0.5)~10V, PWM, External Resistor |
Dimming Range
| 5~100% |
Output Power | 42W |
Max. Current Ripple | ±5% |
Voltage Range | 108~305Vac |
Frequency Range | 47~63Hz |
Max. Input Current @ 230Vac | 0.5A |
Max. Input Power | 52W |
Power Factor | >0.95 @ 120Vac & 80~100% full load; >0.92 @ 277Vac & 80~100% full load |
Efficiency | 87% |
Max. Open Circuit Voltage | 59.5V |
THD |
<20% @ 120Vac/277Vac & 80~100% full load
|
| Protections |
OVP, OTP, OCP, SCP
|
Environmental Protection | UL Dry & Damp |
Working Temperature | -20~+50ºC |
Max. Case Temperature | 90ºC |
Surge Protection | Line to Line 1kV |
Agency Approbations | UL1310 Class 2 |
Electromagnetic Compliance | Per Title 47 CFR Part 15 Class A |
Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
Isolation | Primary to Secondary: 3750Vac / 10mAMax / 60seconds |
| Case & Terminal Type | Plastic & Connector |
Metal & Wire
|
Dimension | 130.7x40.8x28.5 mm (5.15x1.60x1.12inch) | 129x33x28mm (5.07x1.29x1.10inch) |
Mounting Length | 136.9mm (5.38inch) | 146 mm (5.75inch) |
Overall Length | 148.8 mm (5.85 inch) | 154 mm (6.06 inch) |
Weight | 0.18 kg (0.39 lb) | 0.24 kg (0.52lb) |
Life Time | >50,000 hours @ full load, 75ºC Tcase |
* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.
Electrical Specifications

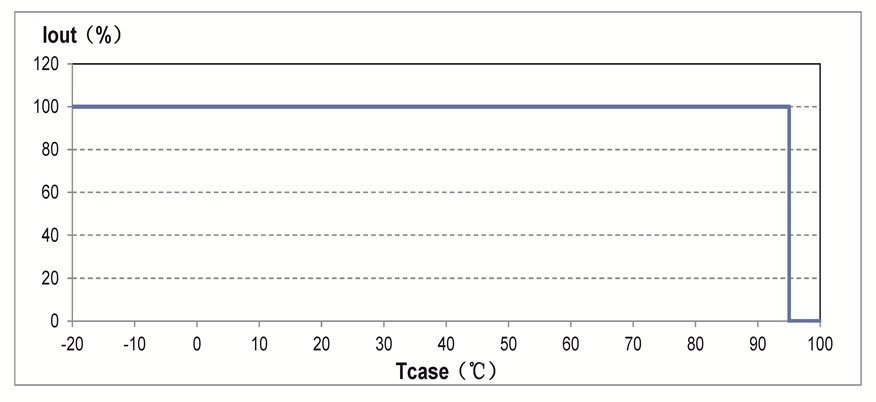

Output Current vs. Case Temperature (with ±5ºC Tolerance)
Electrical Specifications

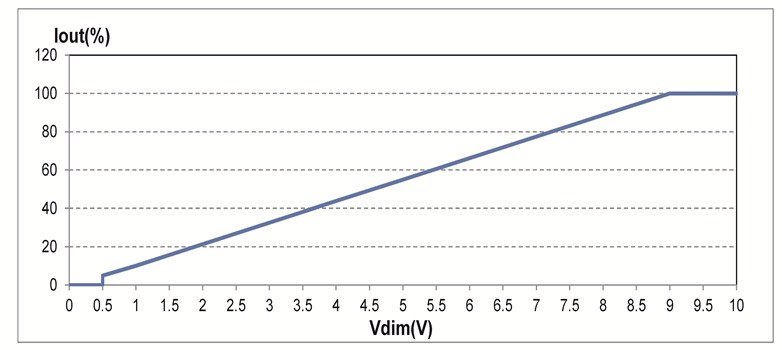

Output Current vs. 0(0.5)-10V Dimming Control Voltage
Performance Characteristics

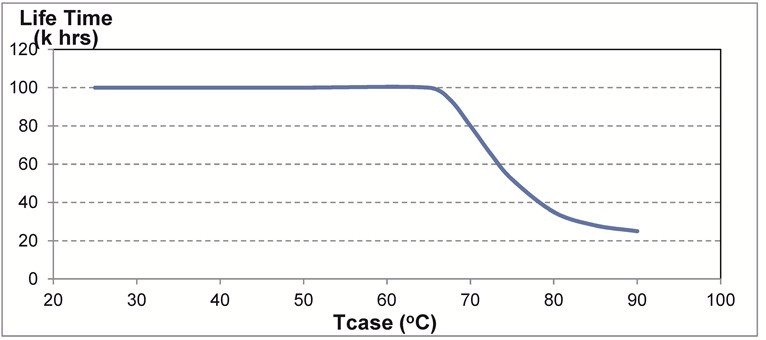

Life Time vs. Case Temperature
Performance Characteristics

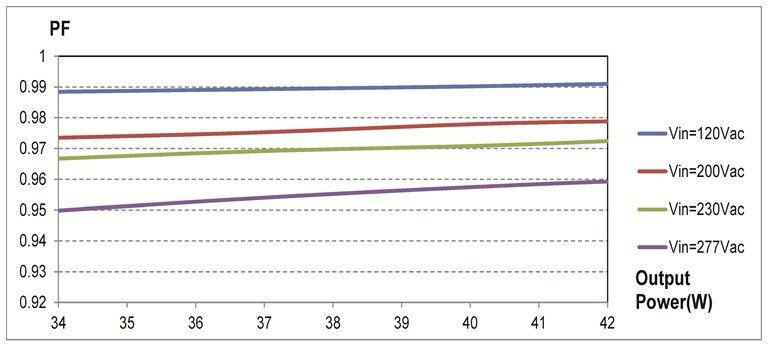

Power Factor vs. Output Power
Mechanical Specification

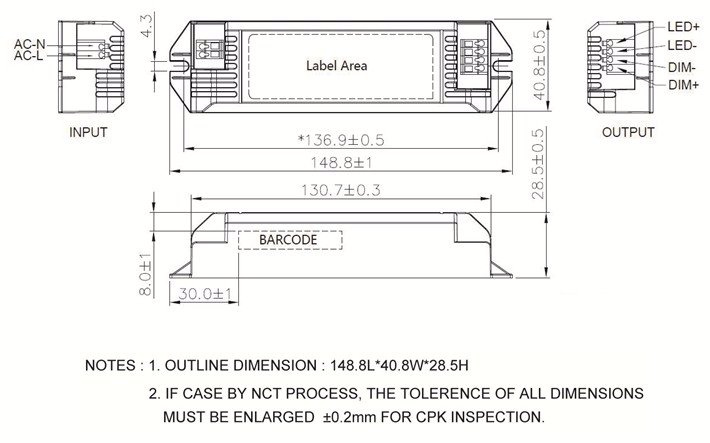

Model:PLD042-1SCF792PA-XXX

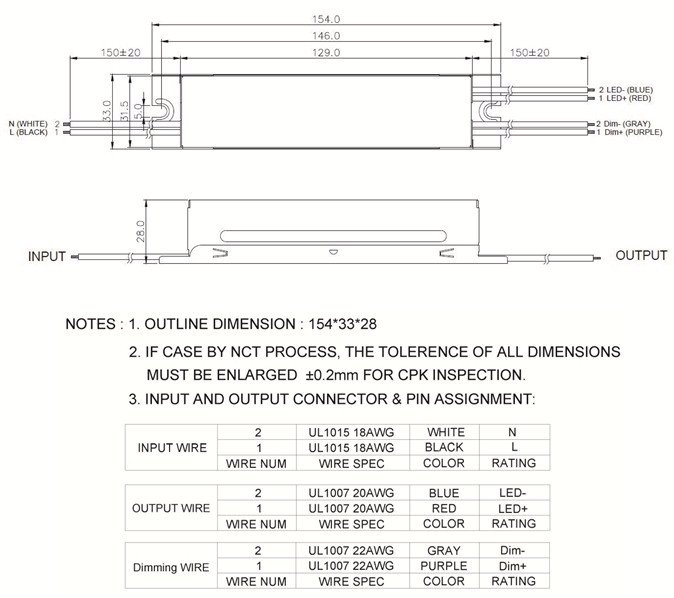

Model:PLD042-1SCF792PB-XXX
