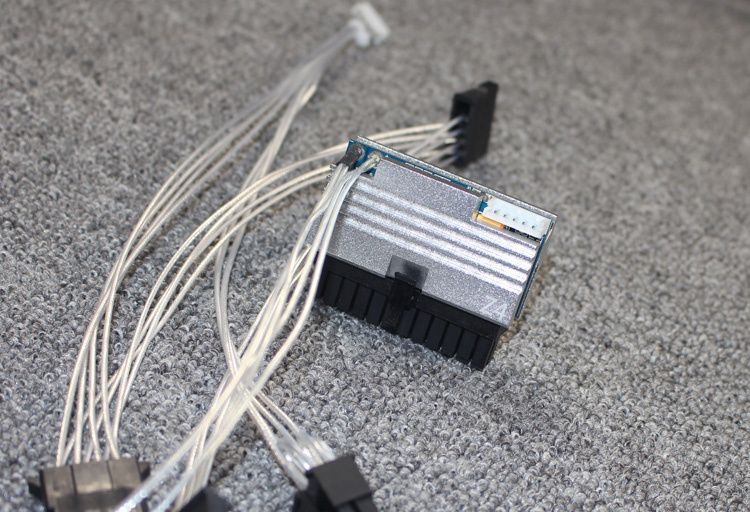

Pico-Box Z4-ATX-200W High Voltage Output 12-24V PSU Straight Pin DC-ATX Power Supply

Prod Model:	Z4-ATX-200W
Warranty:	1 Year
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CE
Input Voltage:	DC 24V

Product Description

Description:

100% brand new and high quality
Size (L*W*H): 5.4 x 3.3 x 1cm(approx)
Adopt industrial solid capacitor ideal for being used in harsh evironment
High performance with high heat-stand feature more reliable
Without fan for 100% mute working
Compact design special for mini-itx and 1U case
Modules can reach 160W and it must be accompanied by the power adapter which reach 12V-12.5A

Specifications:

Input voltage: +12V-24V/DC
Input Current: Max. 17A
Output ATX: 200W
Output Current +12V: 8A
Output Current +5V: 8A
Output Current +3.3V: 8A
Output Current +5VSB: 1.5A
Output Current -12V: 0.1A
Output Power: 200W
Power Efficiency: > = 92%
Operating temperature: 0C~40C
Storage temperature: -20C~80C

Applications:
MINI computers one computer POS digital set-top boxes ITX chassis network servers advertising banking terminals etc.
Note: Due to the difference between different monitors the picture may not reflect the actual color of the item. Please understand Thank you
