Piezo Resistive Pressure Sensor (QP-81B)

Name: Piezo Resistive Pressure Sensor (QP-81B)
Brand: all-electronics-online.com
SKU: 773911995
Availability: InStock
Rating: 4.6 (121 reviews)

Price:	US $ 60/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QP-81B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measure Range:	0~1.6......600 MPa
Accuracy:	0.25%Fs
Output Signal:	4~20mA;0~10V, 1~5V, 0~5V, 0~20mA
Power Supply:	12~36(Standard 24VDC)
Application:	Measuring The Gases and Liquid
Measuring Medium:	Gas and Liquid

Product Description

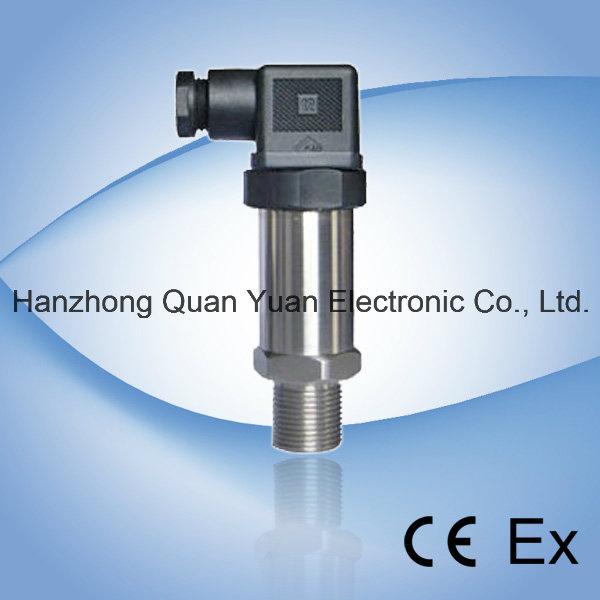

Piezo Resistive Pressure Sensor (QP-81B)

Model: QP-81B

Range: 0~1.6......600 MPa

Features:

High accuracy, good reliability, suitable for high pressure.

Hermetically-sealed construction, it's will to work outside.

Adopting high precision components, it's will to work in the bad environment.

Pressure interface has flat diaphragm interface which can be chosen.

Easy to dismantle, easy to adjustment the zero and full degrees.

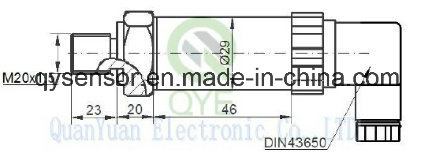

Dimensions: (unit: mm)

Technical Specifications:

Measuring media	Gases or liquids which are compatible to 316L stainless steel
Measuring range	MPa	0~1.6..600
Pressure type	Gauge(G)
Signal output	transmitter, mA (2 wires)	4~20
	transmitter, Vdc (3 wires)	0~5V, 1~5V,0~10V,0~20mA
Combined accuracy	%FS	±0.25(Standard), ±0.5(Max)

Long stability	±0.1%FS/year(Standard);±0.2%FS/year(Max)
Power supply	Vdc	12~36(Standard 24Vdc)
Compensated temp.	ºC	0~+70
Operating temp.	ºC	-20~+80
Temperature coefficient of ZERO	%FS/10ºC	±0.3%FS(≤100Kpa) , ±0.2%FS(>100Kpa)
Temperature coefficient of SPAN	%FS/10ºC	±0.3%FS(≤100Kpa) , ±0.2%FS(>100Kpa)
Insulation resistance	MΩ	>500 @ 100Vdc
Electrical connection	DIN43650,Aviation connector,Directly lead(Selectable)
Material	Housing Material		Stainless steel(1Cr18Ni9Ti)
	Material of diaphragm		316L Stainless steel
Pressure connection	M20x1.5 , M22x1.5 ,Special requirements can be formulated according to the customer request
Environment protection	IP		65
Safe overload	%FS		120
Ultimate overload	%FS		150

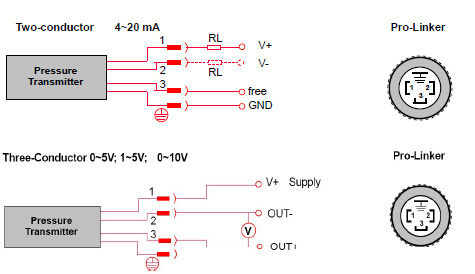

Electrical connection:

Ordering code: model- range&type-signal output-accuracy-pressure connection-electrical
connection-defend grade-the other requests.
Example: QP-81B-0/150MPaG-4/20mA-0.5%FS-M20x1.5-DIN43650-IP65-***
